Removal & Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 8  under DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Remove instrument panel trim. Release 4 locking tabs on passenger-side air bag module disable switch. See Fig 1. Remove passenger-side air bag module disable switch from instrument panel. Disconnect passenger-side air bag module disable switch electrical connector. To install, reverse removal procedure. Activate air bag system. See ZONE 8  under DISABLING & ACTIVATING AIR BAG SYSTEM.

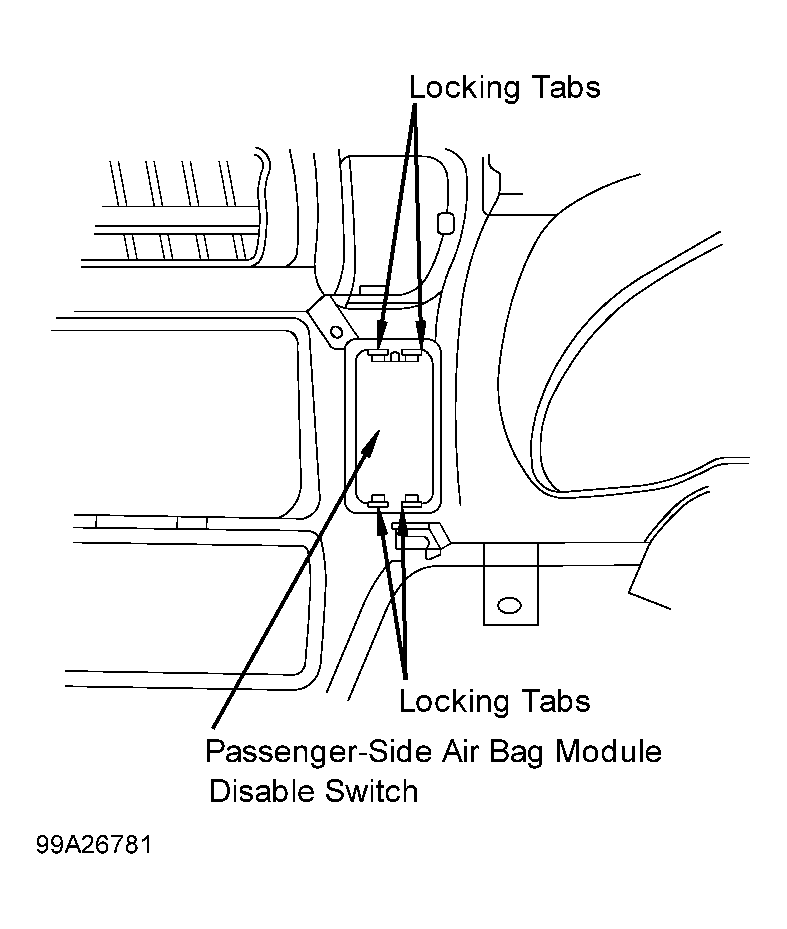

Fig 1: Identifying Passenger-side Air Bag Module Disable Switch
G99A26781Courtesy of GENERAL MOTORS CORP.
