Steering Wheel Speed/Position Sensor and EVO Solenoid

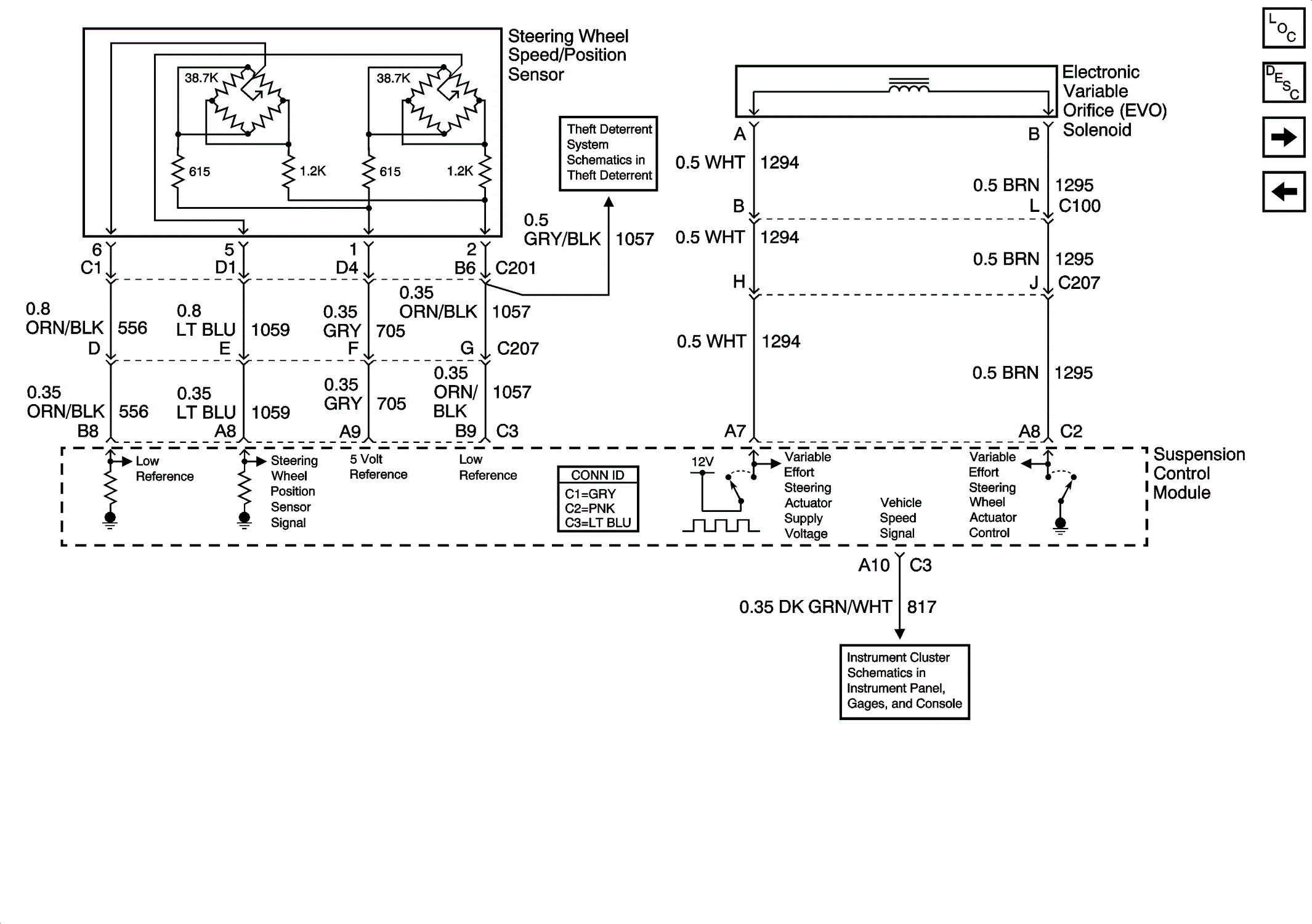

Fig 1: Steering Wheel Speed/Position Sensor and EVO Solenoid Wiring Schematic

GM699377

Courtesy of GENERAL MOTORS COMPANY
