Installation Procedure

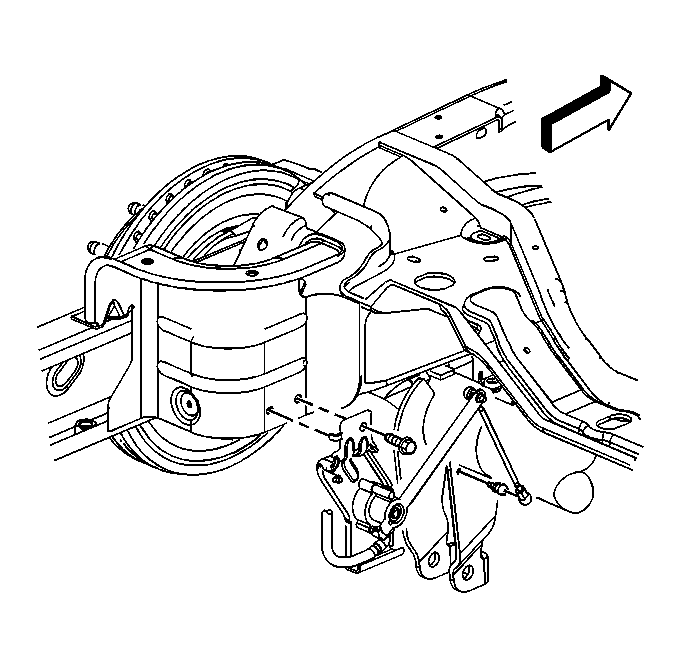

    Fig 1: Rear Left Position Sensor & Bolts (25 Series)
    GM582400Courtesy of GENERAL MOTORS COMPANY
  1. Install the position sensor on the vehicle.
  2. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Connect the sensor link to the ball stud.
    4. Fig 2: Rear Left Position Sensor Harness Connector (25 Series)
    GM582401Courtesy of GENERAL MOTORS COMPANY
  4. Connect the sensor harness connector to the vehicle harness connector.
  5. Install the wheel onto the vehicle. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
