Installation Procedure

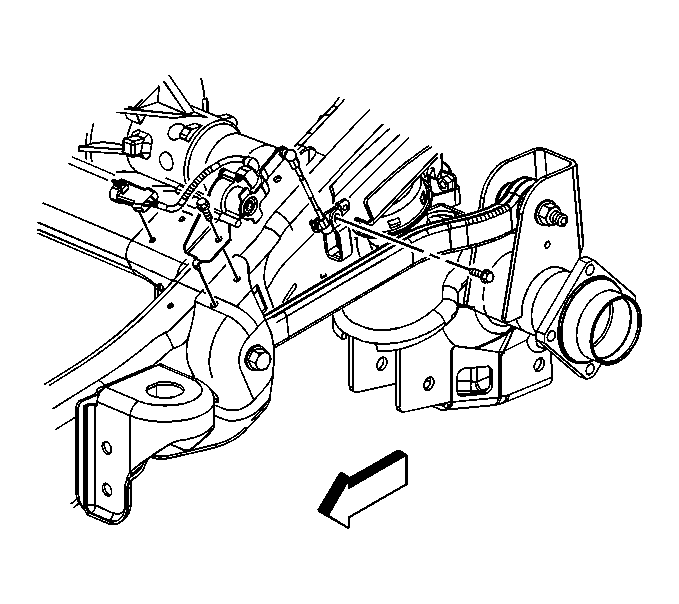

    Fig 1: Rear Position Sensor (15 Series)
    GM582438Courtesy of GENERAL MOTORS COMPANY
  1. Install the position sensor on the vehicle.
  2. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the bolts to the frame.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

    3. Fig 2: View Of Upper Control Arm & Bracket (15 Series)
    GM608824Courtesy of GENERAL MOTORS COMPANY
  3. Close the bracket around the upper control arm making sure the bracket rests between the locating stops.
  4. Install the bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  5. Connect the sensor harness connector to the vehicle harness connector.
  6. Install the wheel and tire assembly to the vehicle. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  7. Lower the vehicle.
