Suspension Position Sensor - RF - 25 Series Suburban Only

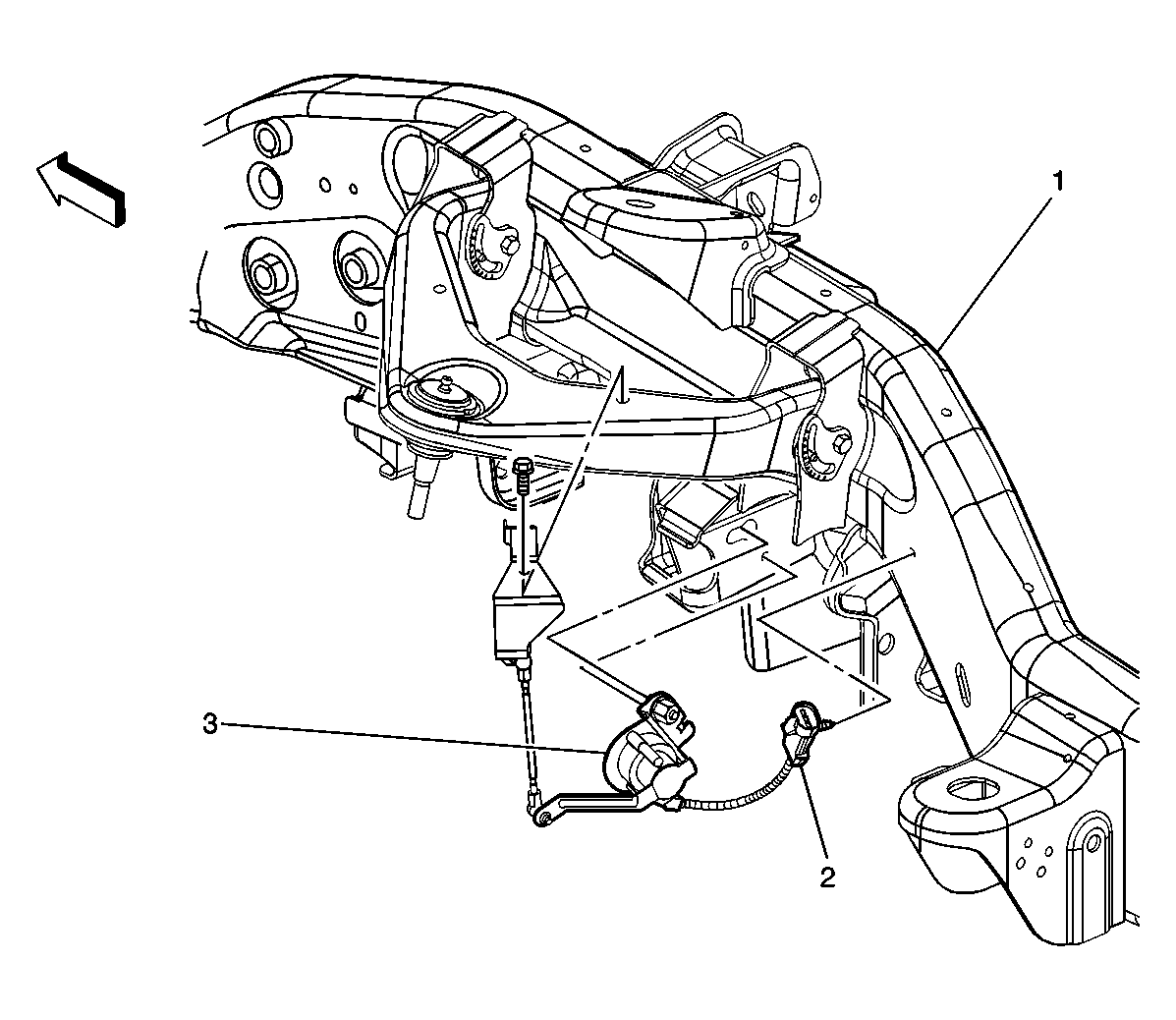

Fig 1: Suspension Position Sensor Component Views - LF (Suburban/Yukon XL)
GM615639Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Frame
2 Suspension Position Sensor - RF Connector
3 Suspension Position Sensor - RF Connector
