LR Suspension Components 2 of 2 (2500 Series)

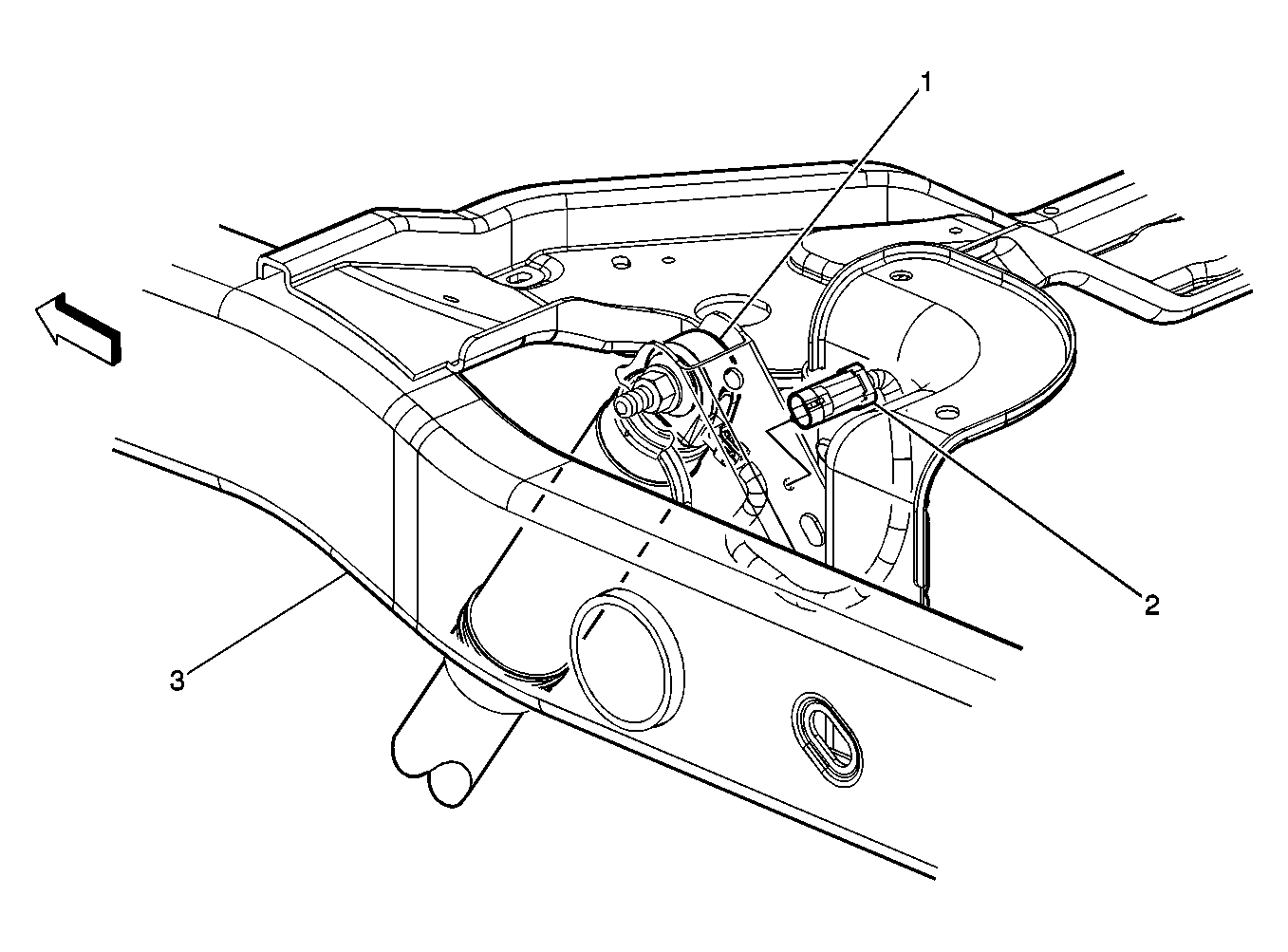

Fig 1: LR Suspension Components 2 of 2 (2500 Series)
GM623035Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Shock Absorber- LR
2 Shock Absorber- LR Connector
3 Frame
