LR Suspension Components 1 of 2 (2500 Series)

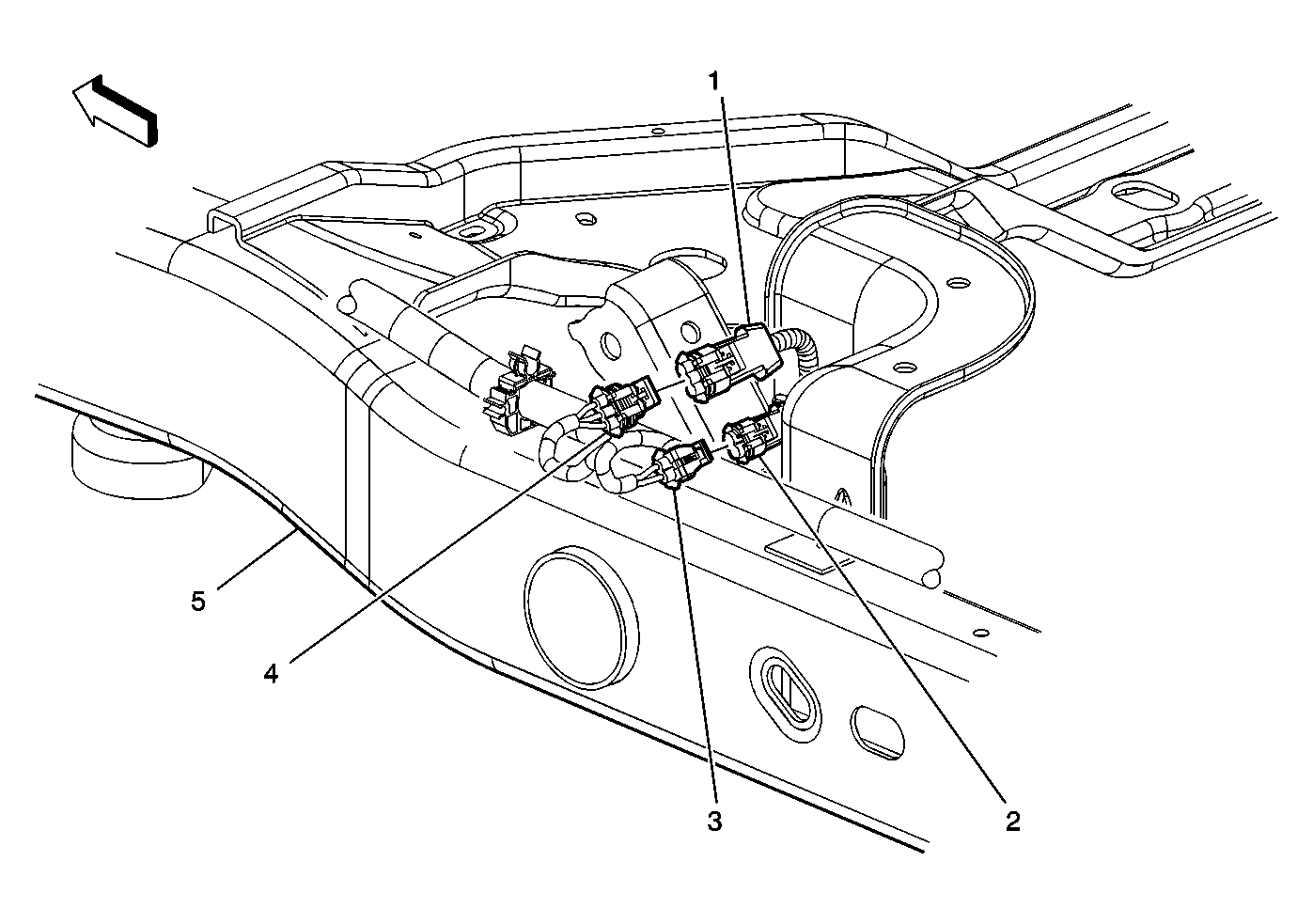

Fig 1: LR Suspension Components 1 of 2 (2500 Series)
GM615765Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Suspension Position Sensor - LR Connector
2 Shock Absorber Solenoid - LR Connector
3 Shock Absorber Solenoid - LR Connector - Chassis Harness Side
4 Suspension Position Sensor - LR Connector - Chassis Harness Side
5 Frame
