Hybrid Controls Wiring Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

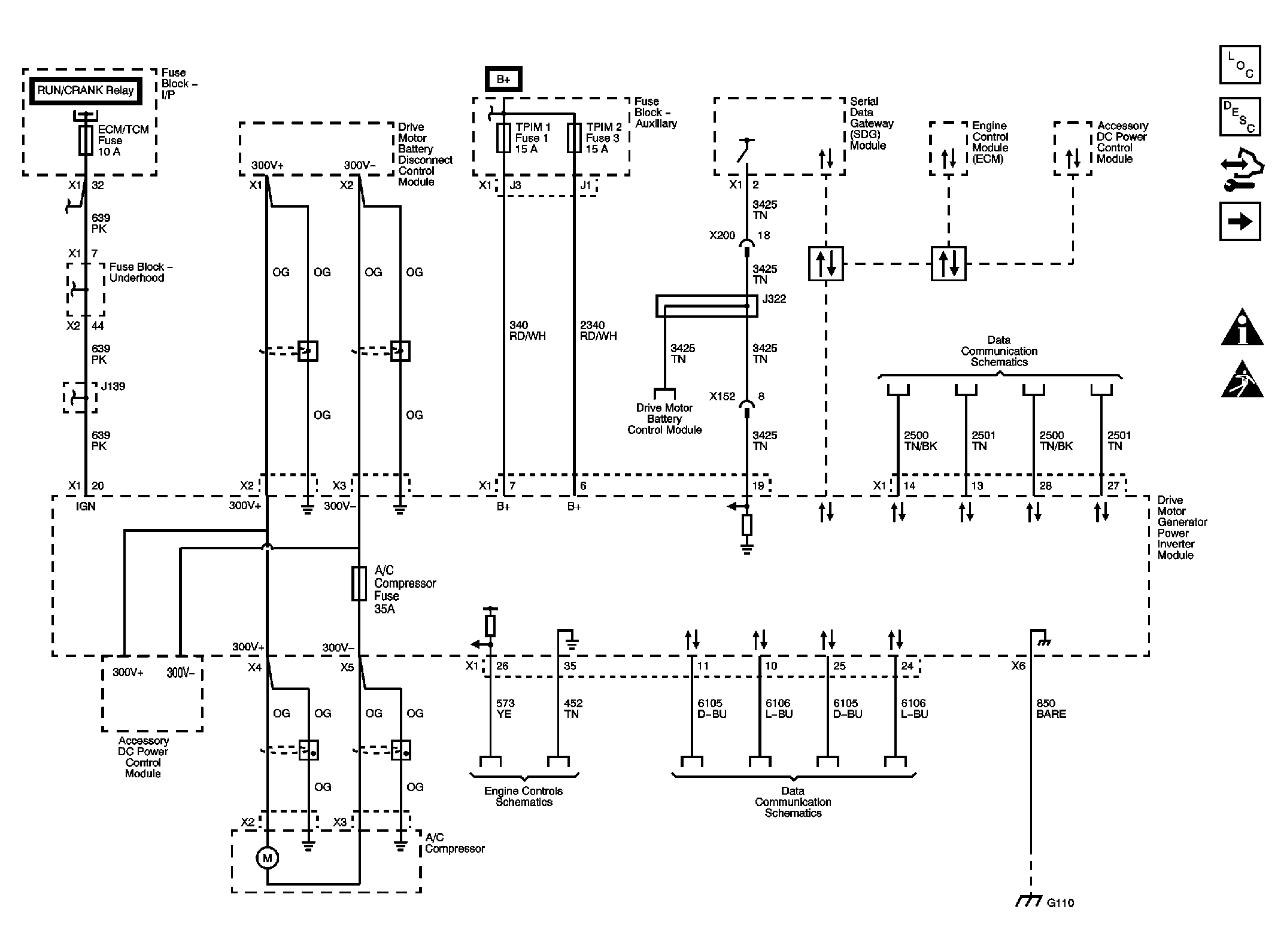

Fig 1: Drive Motor Generator Power Inverter Module Power, Grounds, Data Communications and A/C Compressor Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

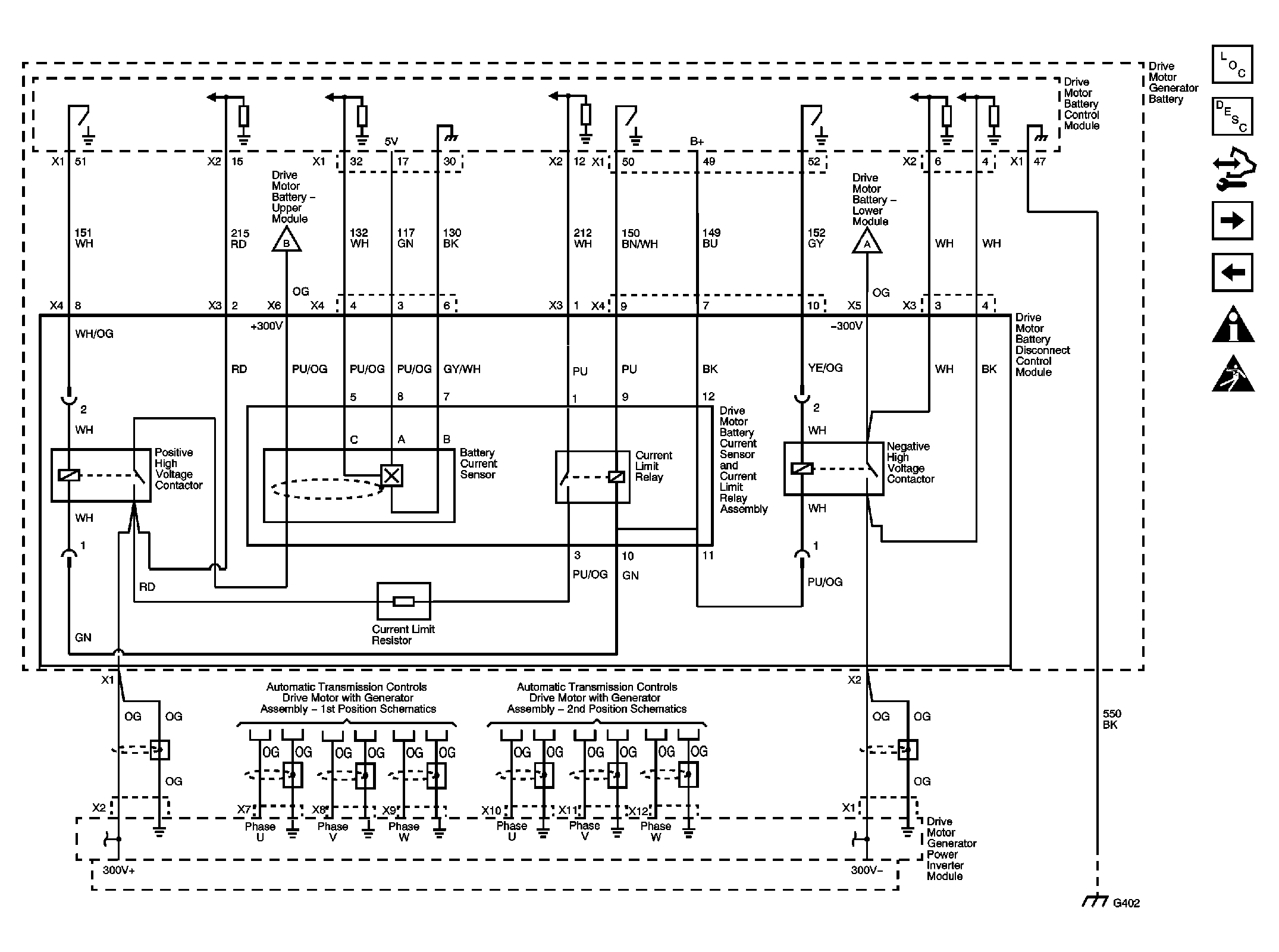

Fig 2: Main Contactors Relays Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

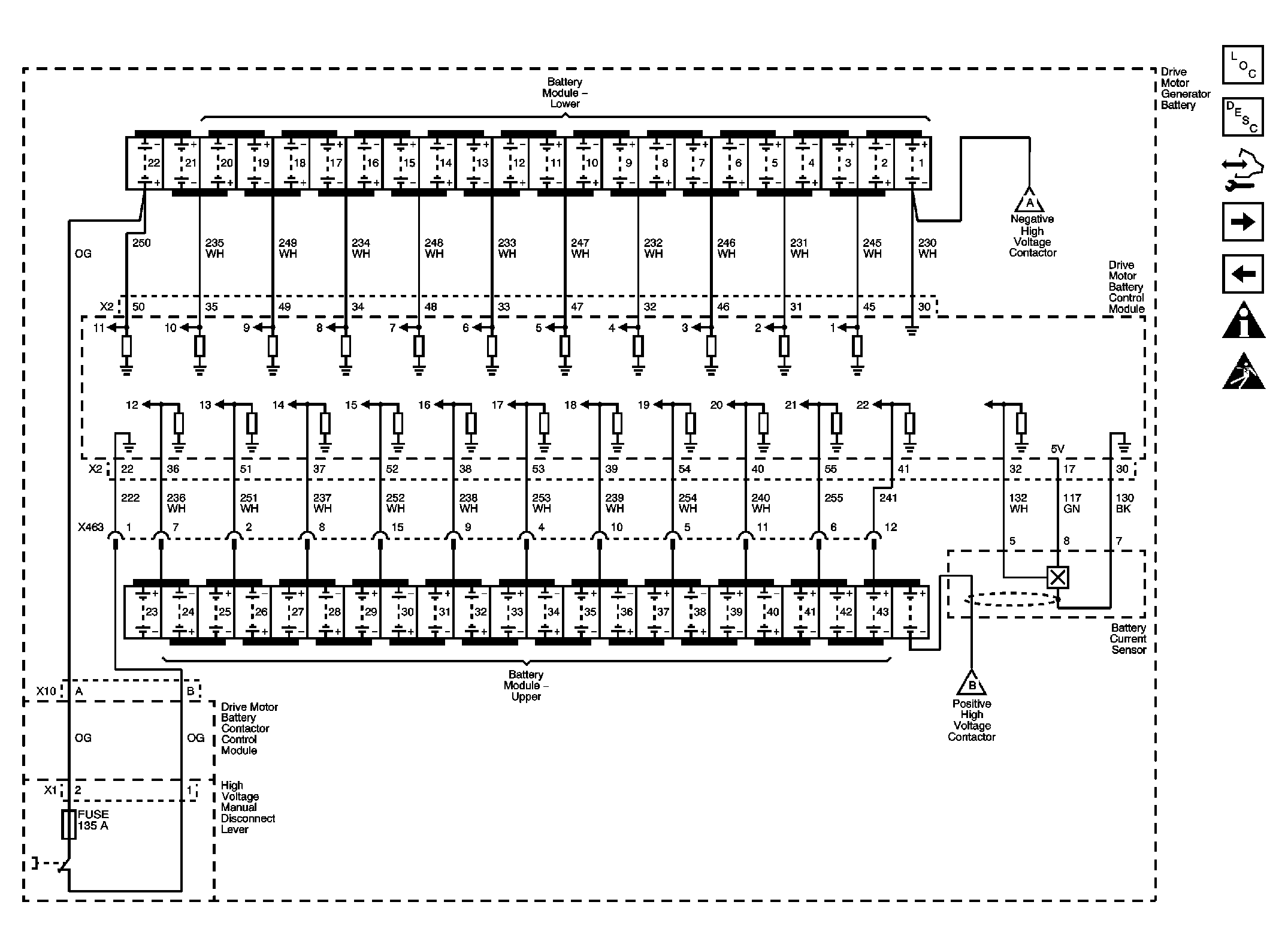

Fig 3: Drive Motor Generator Battery and High Voltage Manual Disconnect Lever Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

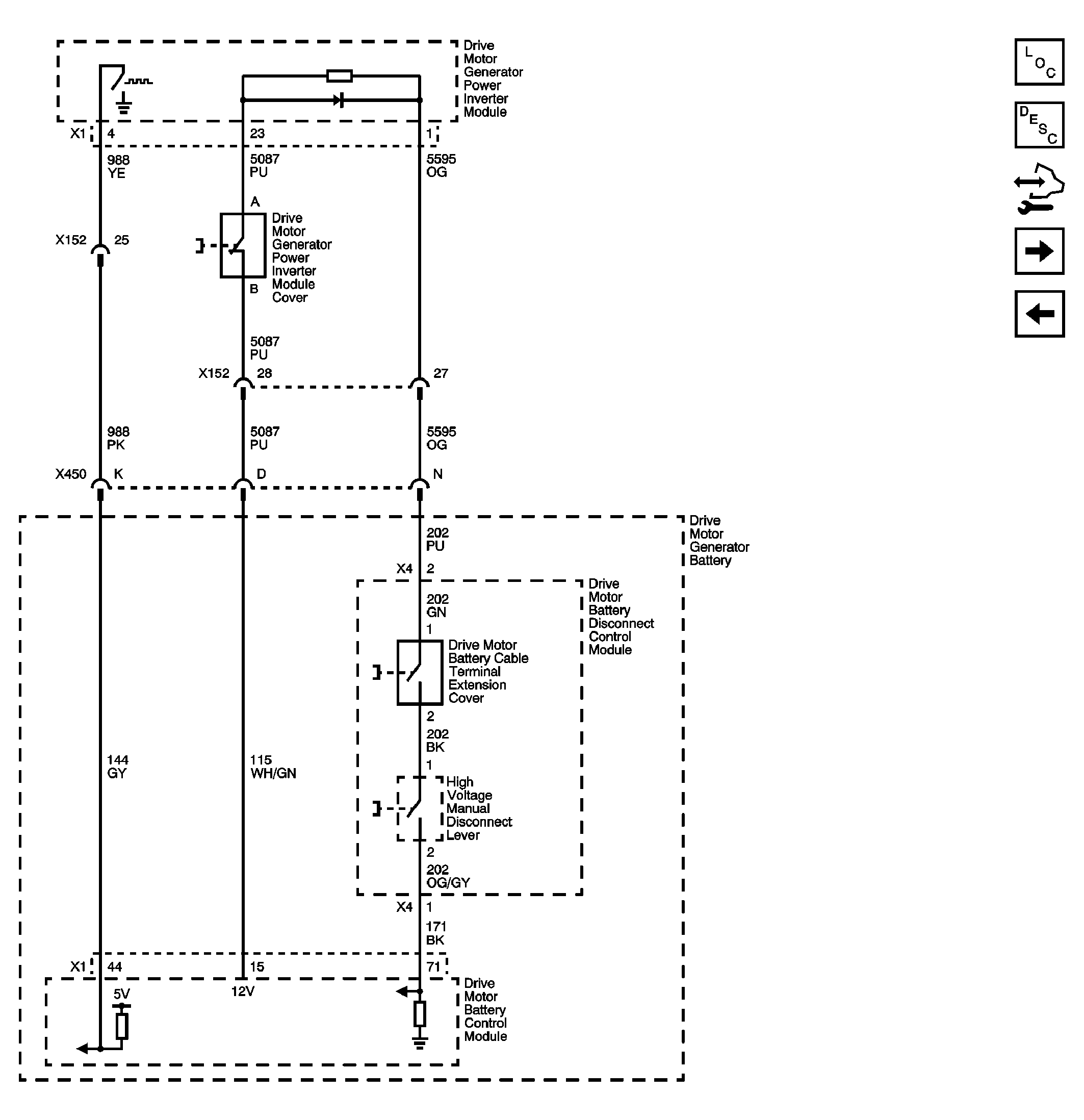

Fig 4: High Voltage Interlock Link Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

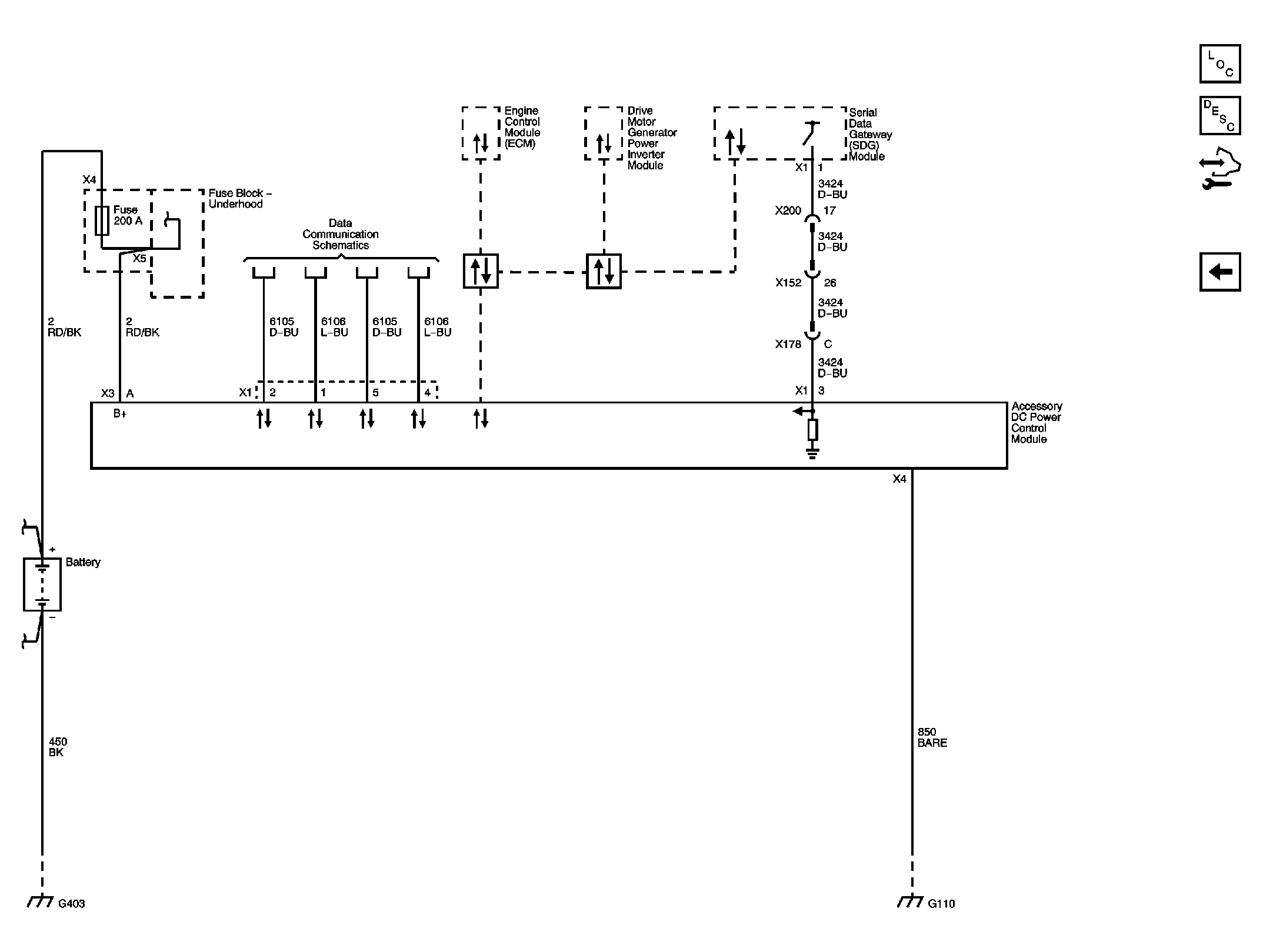

Fig 5: Accessory DC Power Control Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
