RR Frame - Lighting Components

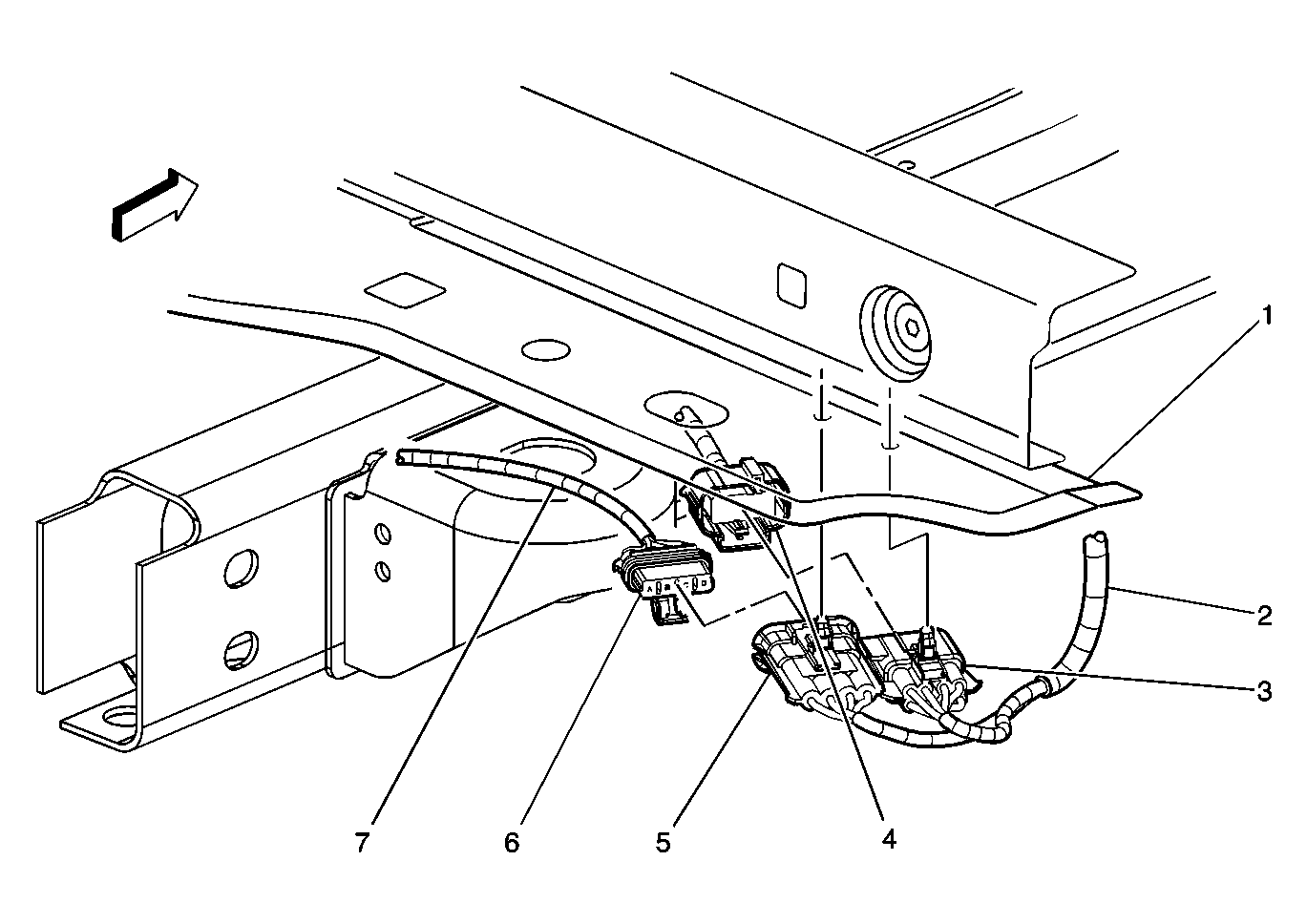

Fig 1: Rear Lamp Harness To Rear License Plate/Tail Lamp Harness - RH Routing View (LH Similiar)
GM623153Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Back Body Opening Lower Frame
2 Rear Lamp Wiring Harness
3 Inline Connector 403 (Rear Lamp Harness Side)
4 Inline Connector 403 (Tail Lamp Harness Side)
5 Inline Connector 404 (Rear Lamp Harness Side)
6 Inline Connector 404 (Rear License Plate Harness Side)
7 License Plate Wiring Harness
