LR of the Cab Components (Extended Cab Pickup)

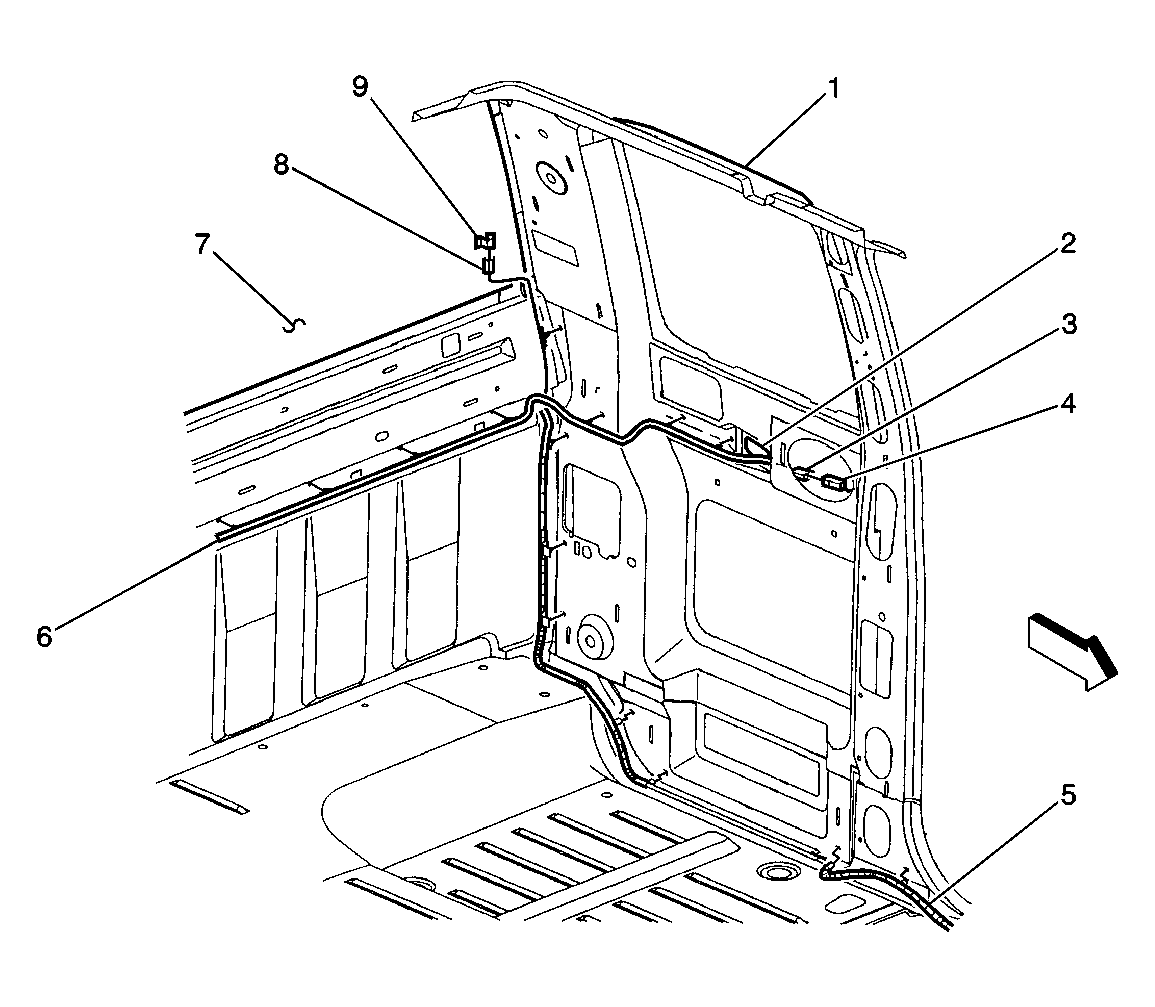

Fig 1: LR of the Cab Components (Extended Cab Pickup)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Side Inner Body Panel - LH
2	Panel Access Hole
3	Speaker - LR Connector (Harness Side)
4	Speaker - LR Connector (Speaker Side)
5	Body Wiring Harness
6	Body Wiring Harness
7	Rear Glass (Defogger Grid Not Shown)
8	Rear Defogger Grid Connector (Harness Side)
9	Rear Defogger Grid Connector (Window Side)
