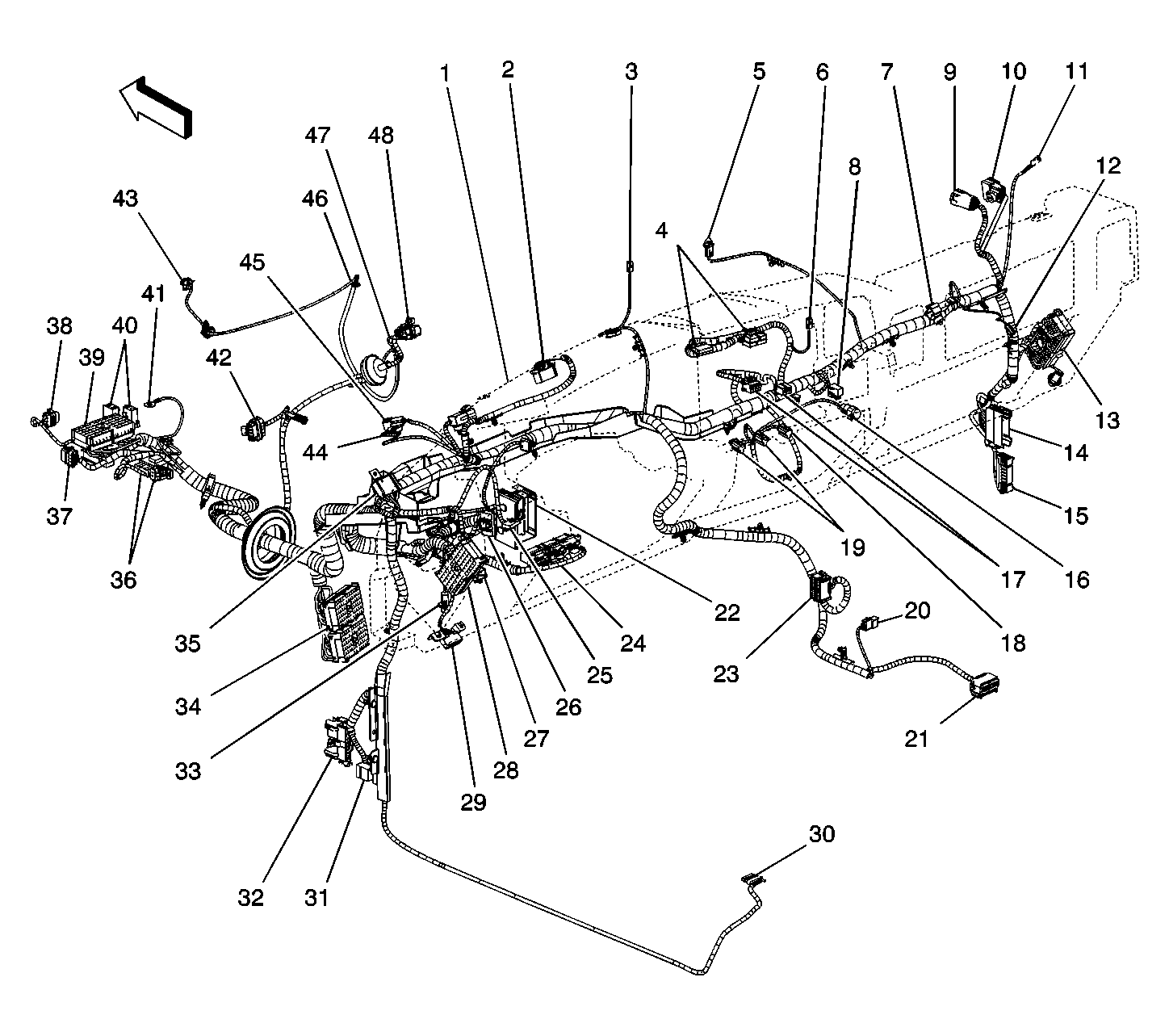

| 1 |
Instrument Panel |
| 2 |
Instrument Panel Cluster Connector |
| 3 |
Sunload Sensor |
| 4 |
Radio Connectors |
| 5 |
Daytime Running Lamps (DRL) Sensor |
| 6 |
Air Temperature Sensor - Upper |
| 7 |
Passenger Inflatable Restraint Module Connector |
| 8 |
Inflatable Restraint Module Switch Connector |
| 9 |
Inline Connector C206 (HVAC Auto A/C) |
| 10 |
Inline Connector C207 (RTD) |
| 11 |
Speaker Connector |
| 12 |
Compartment Lamp Connector |
| 13 |
Fuse Block-Right I/P |
| 14 |
Inline Connector to RH Door Harness |
| 15 |
Inline Connector to RH Body Harness (06 only) |
| 16 |
Ashtray Lamp Connector |
| 17 |
HVAC Control Module Connectors |
| 18 |
Cigarette Lighter Connector |
| 19 |
Power Accessary Connectors |
| 20 |
Inline Connector C351 (LH Body Harness Side) |
| 21 |
Console Connector (Y91 only) |
| 22 |
Steering Column Connector |
| 23 |
Inline Connector C307 (Console Extension Harness Side) |
| 24 |
Body Control Module Connectors |
| 25 |
Cargo/Fog Switch Connector |
| 26 |
Headlamp Switch Connector |
| 27 |
Steering Column (SIR) Connector |
| 28 |
Fuse Block-Left I/P |
| 29 |
Data Link Communication Connector |
| 30 |
Inflatable Restraint Sensing And Diagnostic Module (SDM) Connector |
| 31 |
Inline Connector C204 |
| 32 |
Inline Connector C200 (LH Door Harness) |
| 33 |
Footwell Courtesy Lamp - Left |
| 34 |
Body Wiring Harness Junction Block |
| 35 |
Splice Pack 203 (SP203) |
| 36 |
Inline Connectors to Automatic Transfer Case (C151, C153) |
| 37 |
Inline Connector C102 (I/P to Chassis Harness) |
| 38 |
Inline Connector C103 (I/P to Forward Lamp Harness) |
| 39 |
Junction Block-Underhood |
| 40 |
Instrument Panel Battery Feed Connectors |
| 41 |
Trailer Power Feed Connector |
| 42 |
Cruise Control/Throttle Actuator Connector |
| 43 |
Underhood Lamp Connector |
| 44 |
Speaker - Left Connector |
| 45 |
Inline Connector C204 (I/P to LH Body Harness) |
| 46 |
Underhood Lamp Ground |
| 47 |
I/P Harness to Plenum Ground |
| 48 |
Windshield Wiper System Module Connector |
