Front of the Center Console

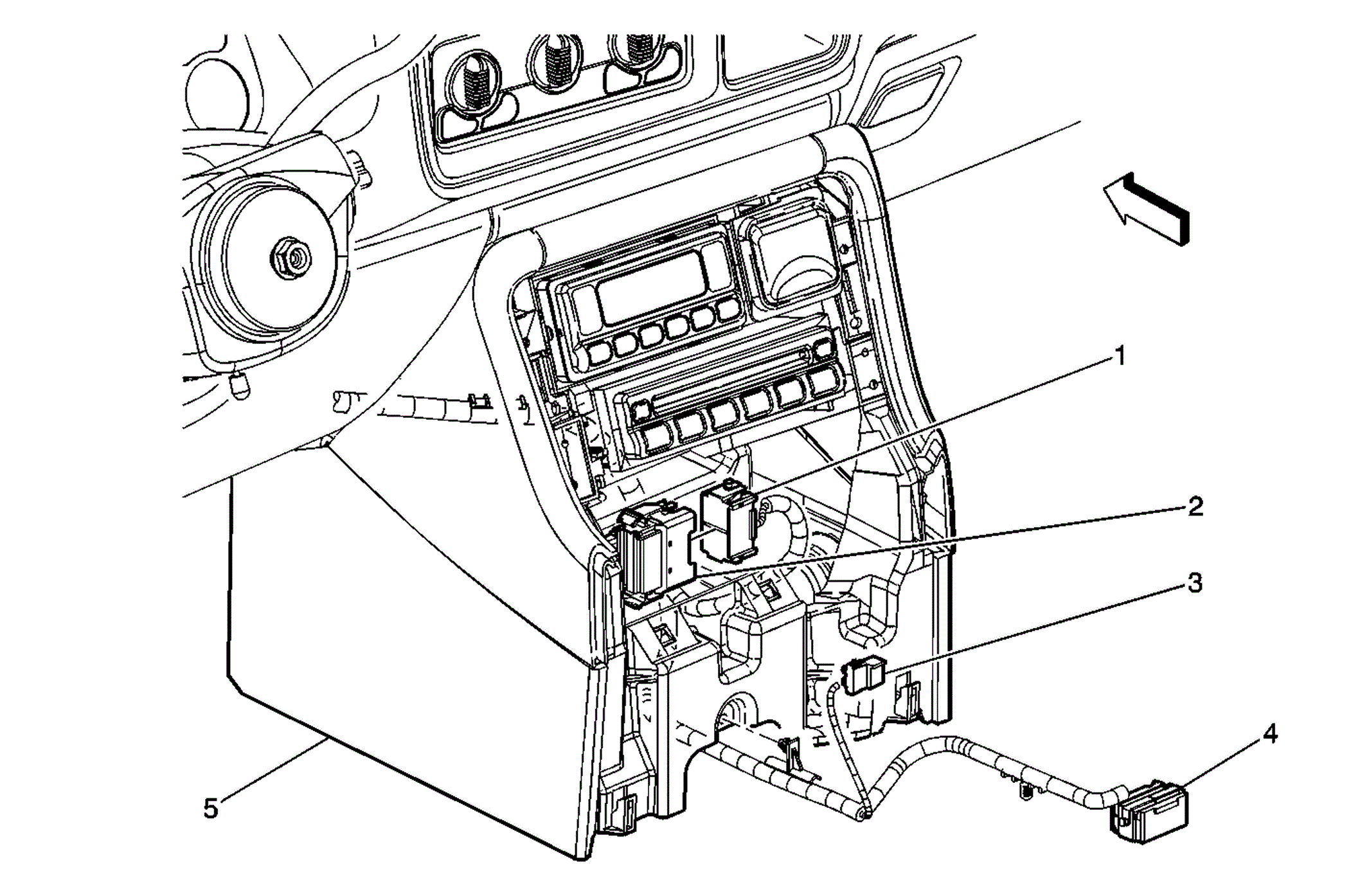

Fig 1: Front of the Center Console
GM656701Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Inline Connector-306 (IP Harness Side)
2 Inline Connector-306 (Front Floor Console Harness Side)
3 Inline Connector-C249 (IP Harness Side)
4 Inline Connector-C307 (Uplevel Utility) 0r C340 (Luxury Utility)
5 Front Floor Console
