TRL L TURN, TRL R TURN, VEH STOP, and CHMSL Fuses

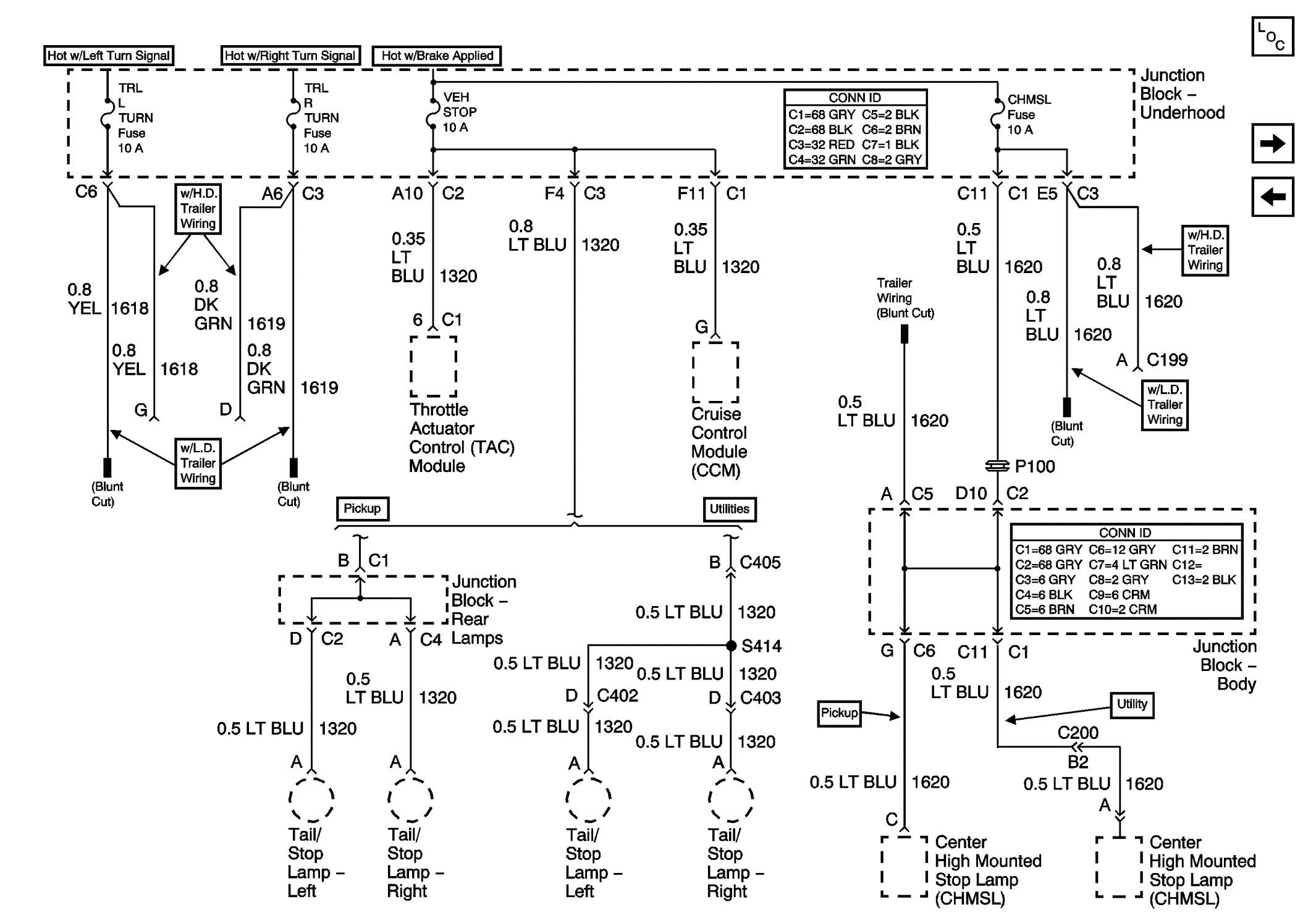

Fig 1: TRL L TURN, TRL R TURN, VEH STOP, and CHMSL Fuses Wiring Schematic

GM653079

Courtesy of GENERAL MOTORS COMPANY
