PWR WDO Circuit Breaker, RDO I, and RAP #2 Fuses- Pickup

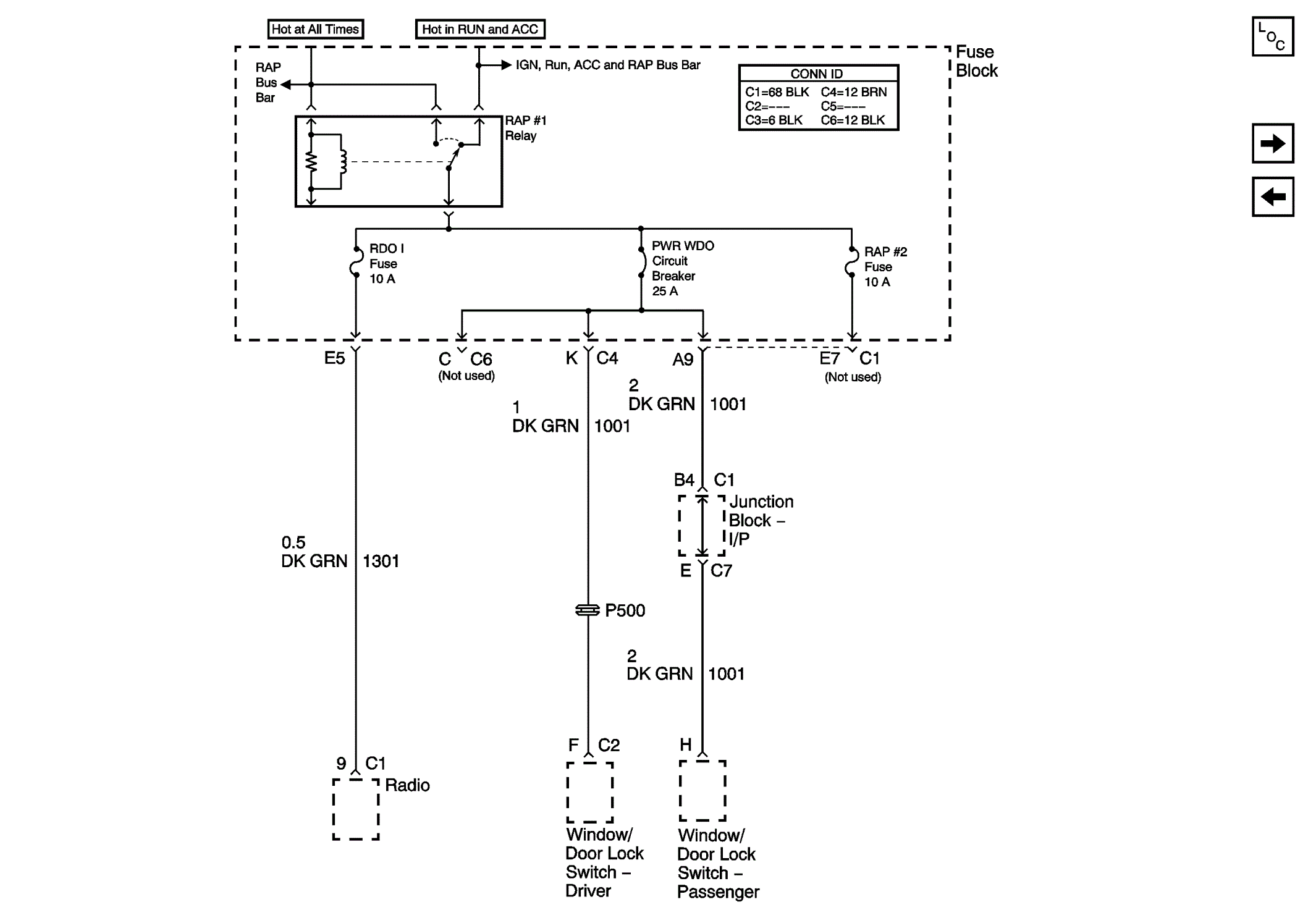

Fig 1: PWR WDO Circuit Breaker, RDO I, and RAP #2 Fuses- Pickup Wiring Schematic
GM839205Courtesy of GENERAL MOTORS COMPANY
