AIR, RADIO, ECM B, FRT HVAC, and CIGAR Fuses

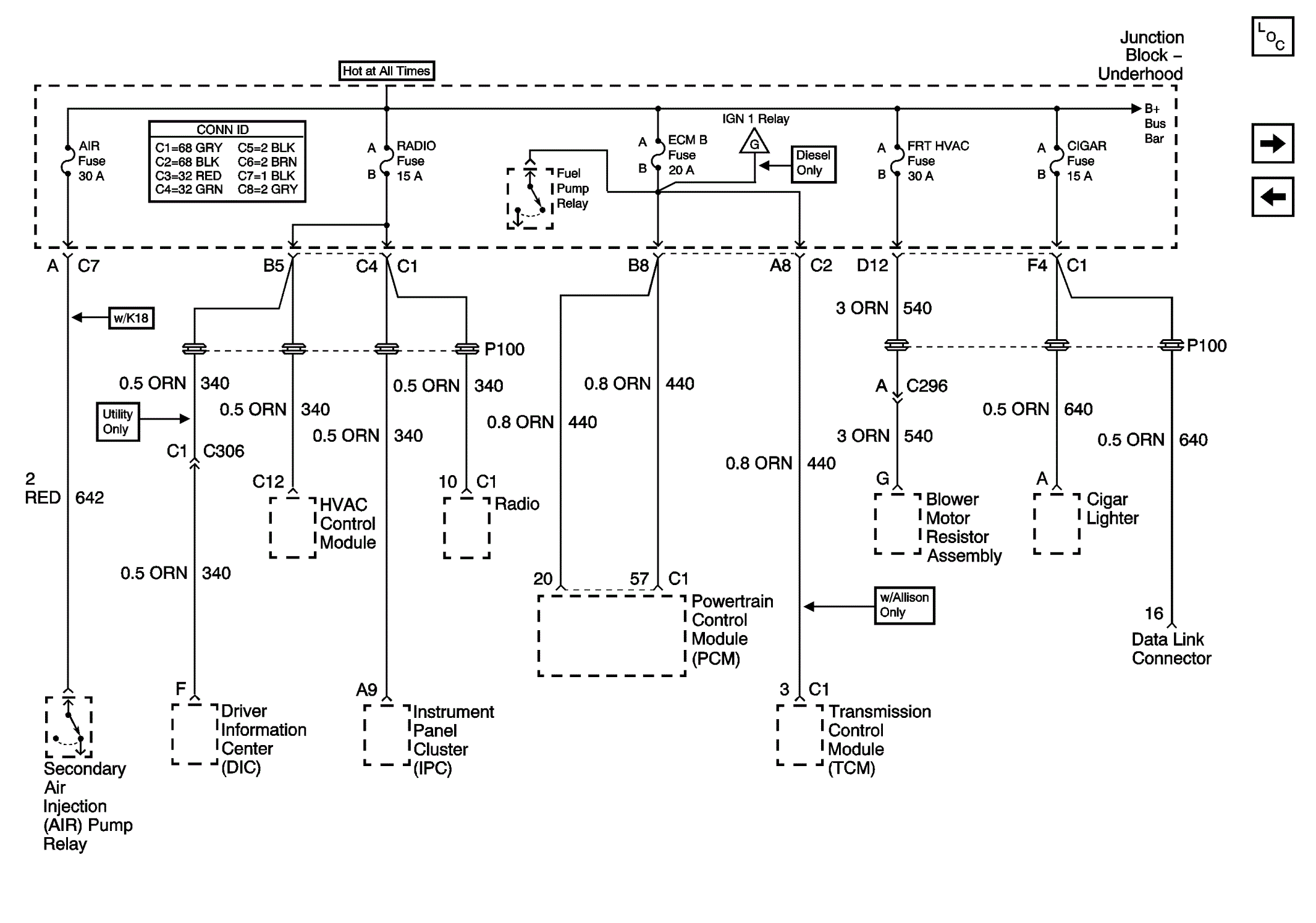

Fig 1: AIR, RADIO, ECM B, FRT HVAC, and CIGAR Fuses Wiring Schematic

GM740261

Courtesy of GENERAL MOTORS COMPANY
