Wiring Schematics and Wiring Harness Routing Diagrams
>>
Cigar Lighter/Power Outlet Wiring Schematics
>>
Except Luxury
Except Luxury

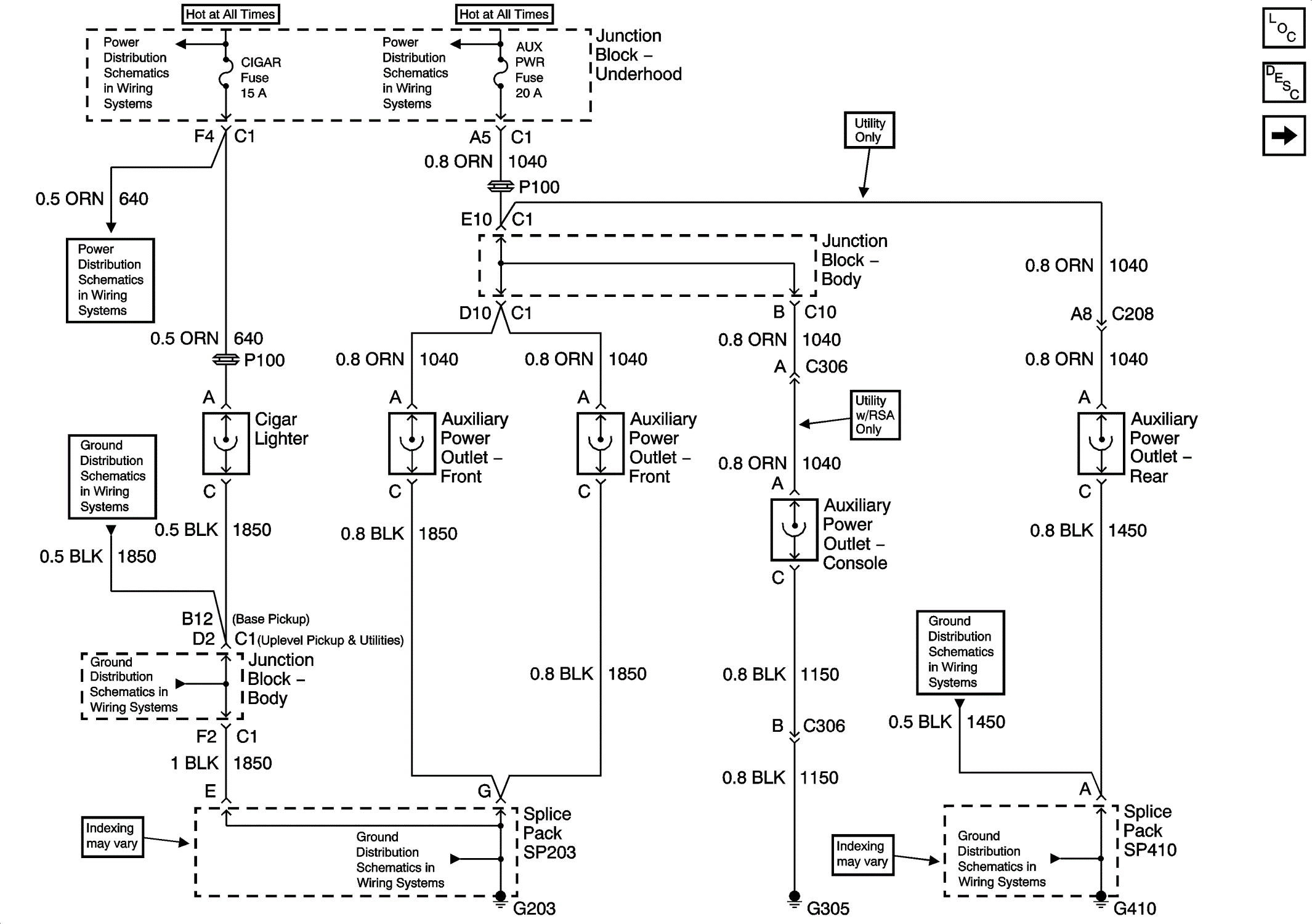

Fig 1: Cigar Lighter/Power Outlet Wiring Schematic (Except Luxury)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
