Driver Information System Wiring Schematics

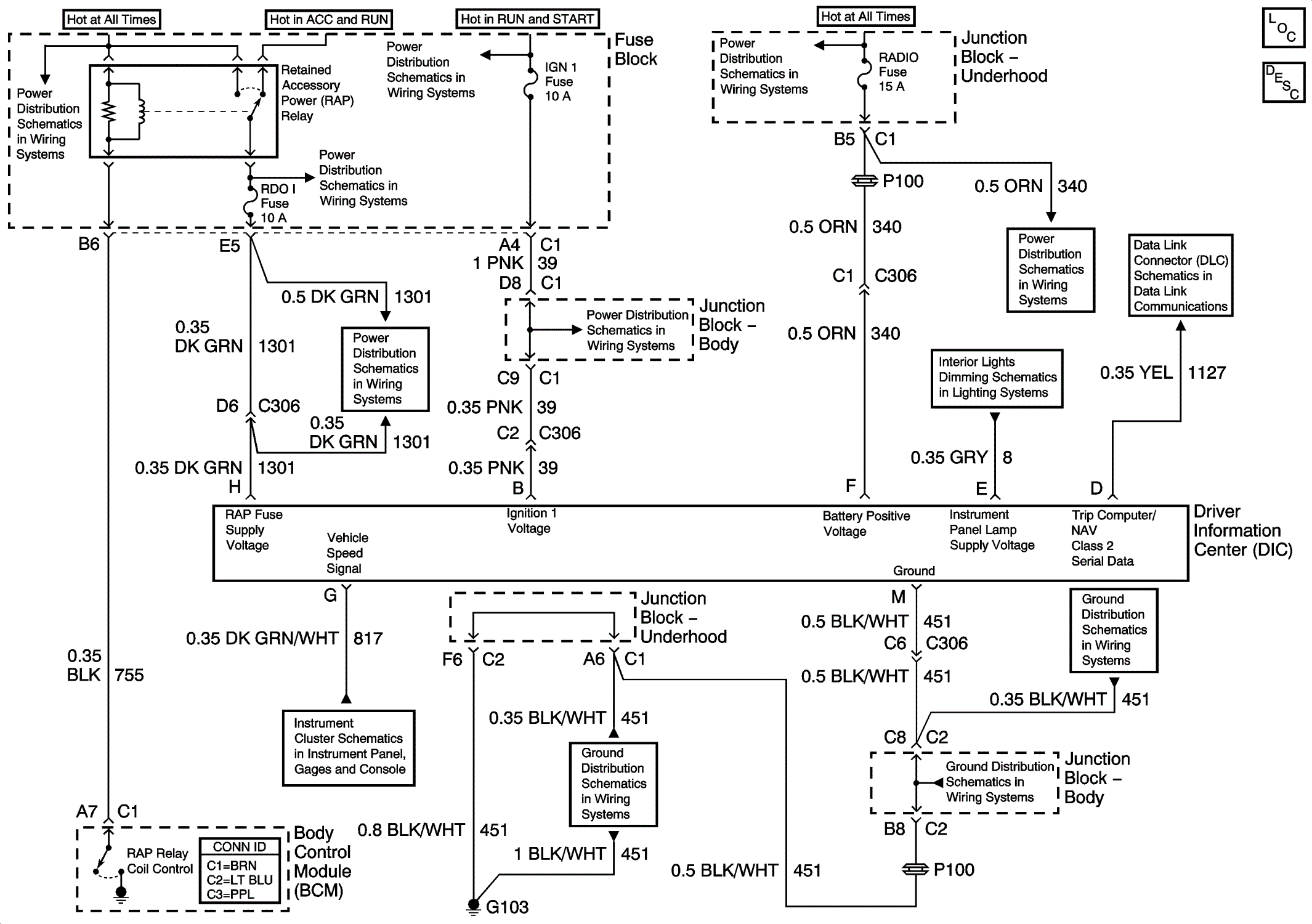

Fig 1: Driver Information System Wiring Schematic

GM667111

Courtesy of GENERAL MOTORS COMPANY
