Brake Warning System Wiring Schematics

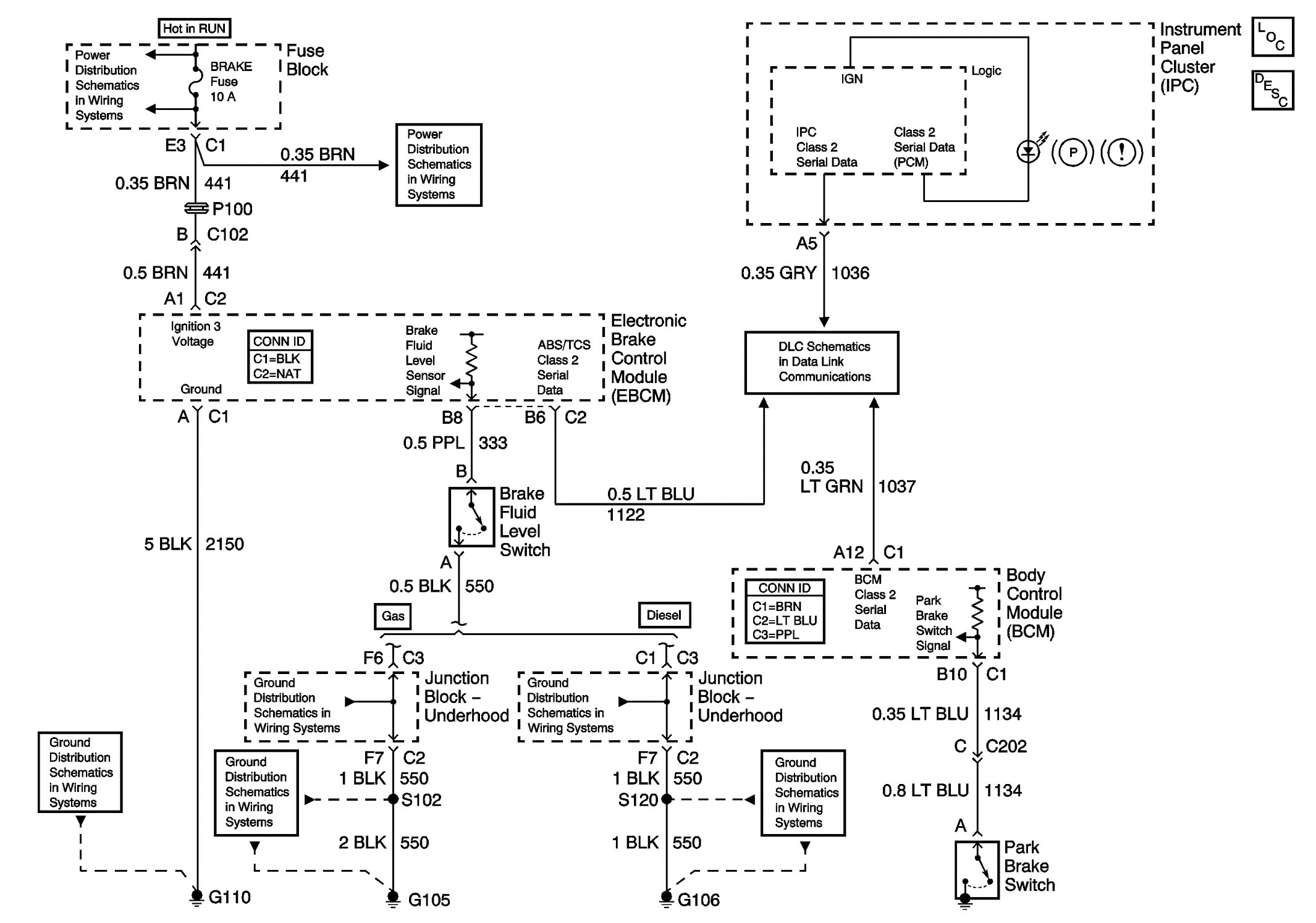

Fig 1: Brake Warning System Wiring Schematic

GM699415

Courtesy of GENERAL MOTORS COMPANY
