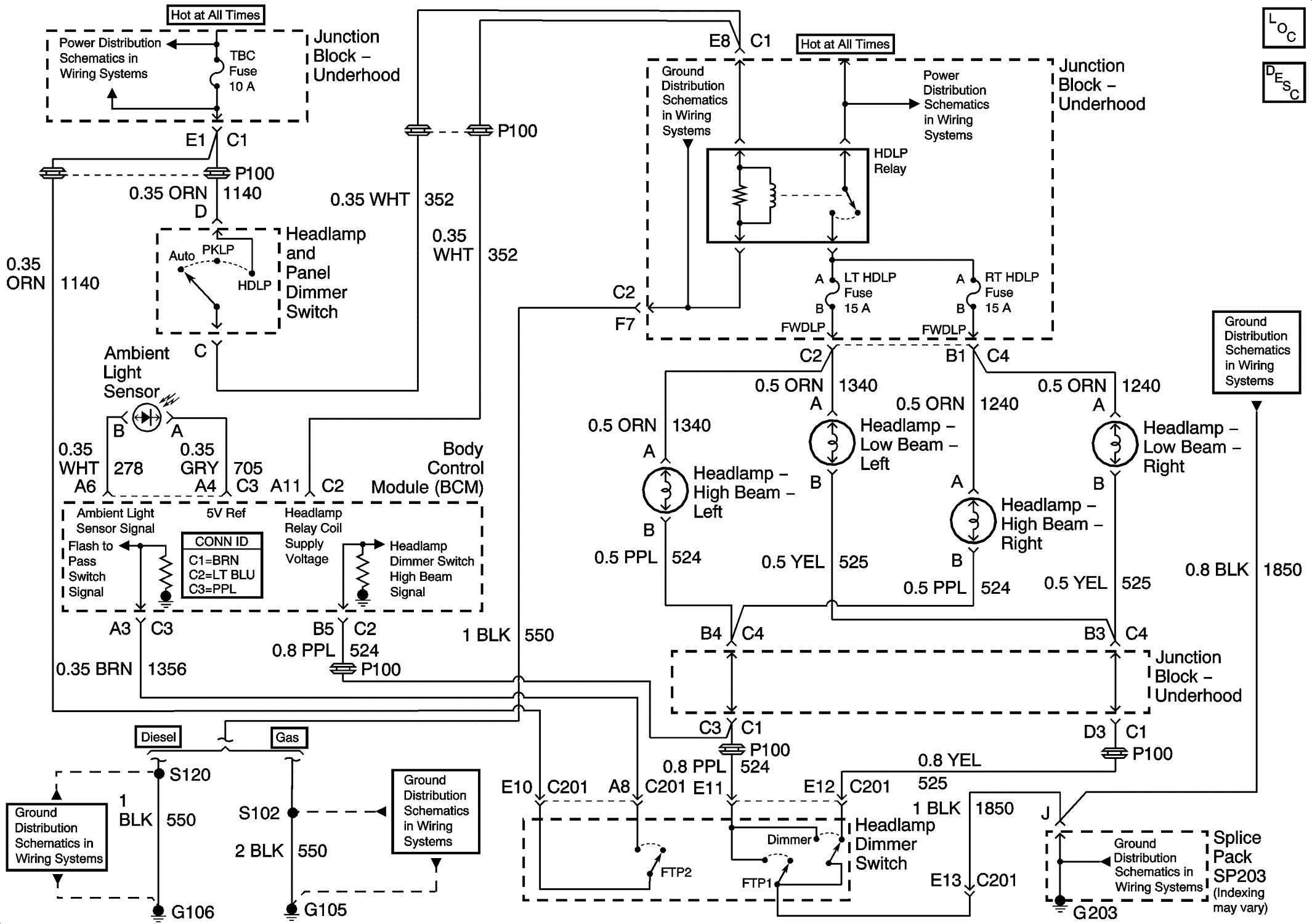

Home >> GMC >> 2001 >> C3500 HD 6.5 F, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic Wiring Diagrams >> Headlights Wiring Schematics
