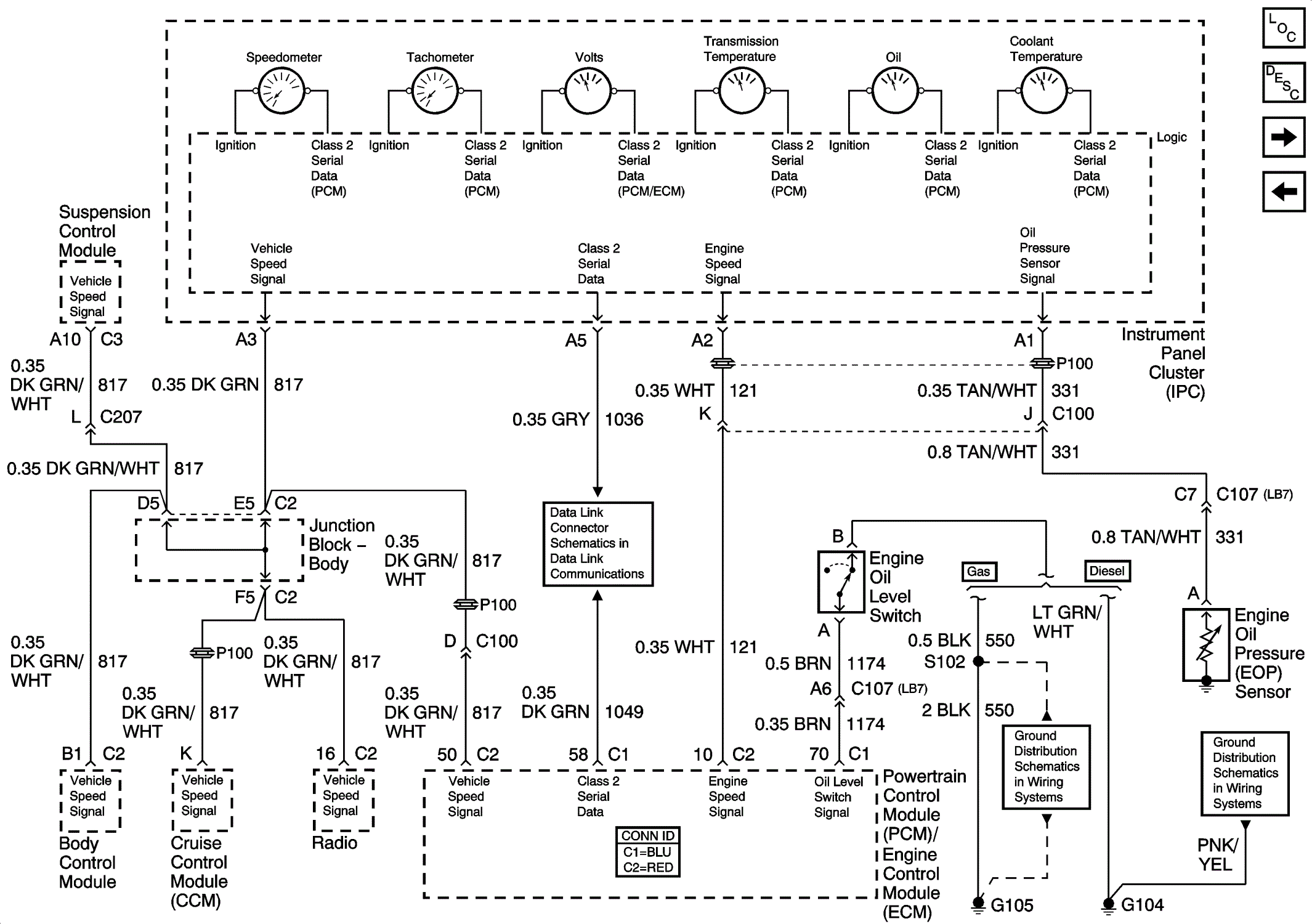

Home >> GMC >> 2001 >> C3500 HD 6.5 F, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Gauges, VSS, and Engine Oil Signals
