Fuel Gauge and Fuel Pump and Sender Assembly

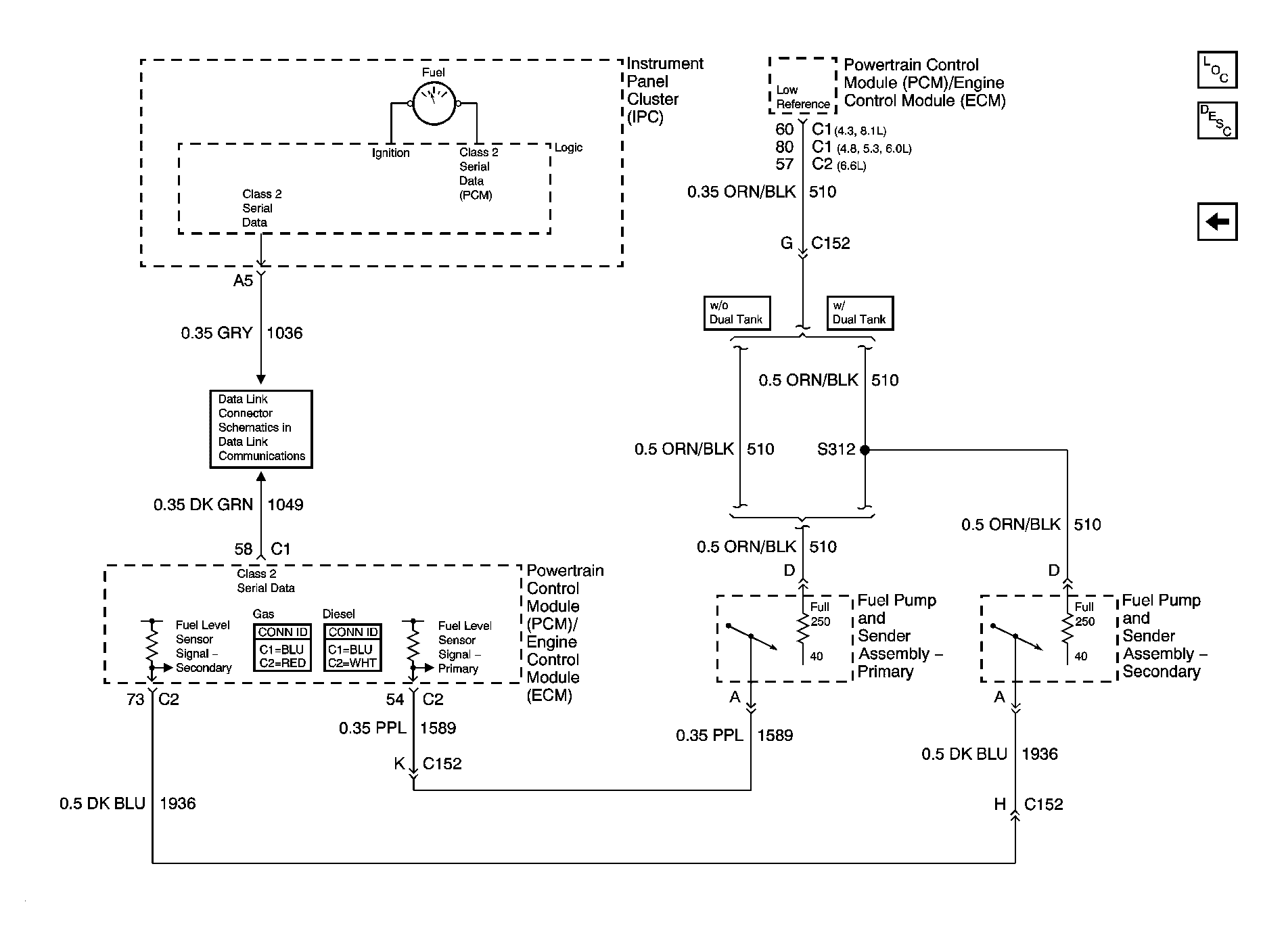

Fig 1: Fuel Gauge and Fuel Pump and Sender Assembly Wiring Schematic

GM776810

Courtesy of GENERAL MOTORS COMPANY
