Removal Procedure

  1. Remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.0 L w/RPOs Y91 and Z88) , Upper Intake Manifold Sight Shield Replacement (4.8 L, 5.3 L, and 6.0 L) .
    2. IMPORTANT:

    Clean the area around the sensor before removal. Do not allow debris to enter the engine.

  2. Disconnect the oil pressure sensor electrical connector.

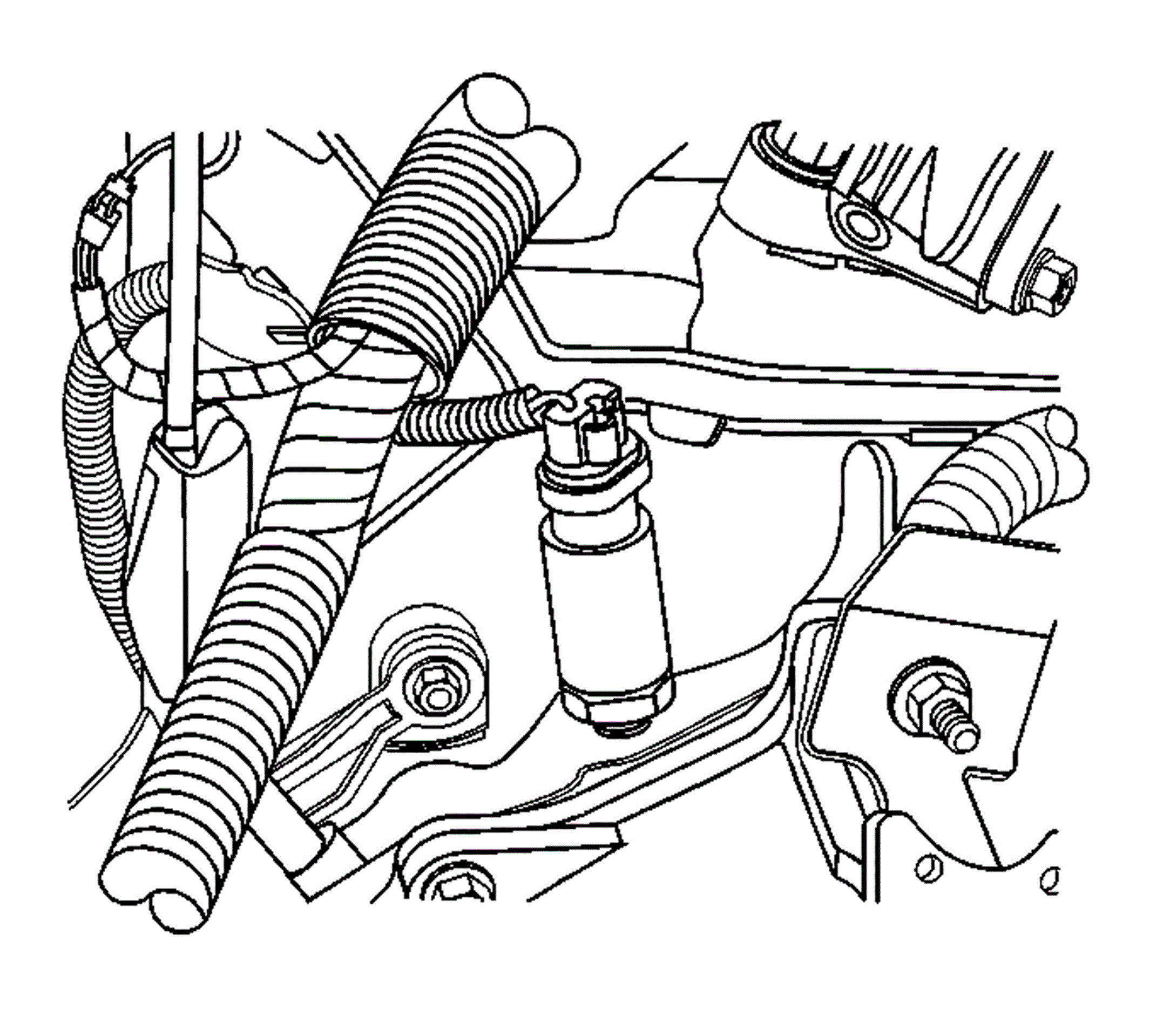

    3. Fig 1: Oil Pressure Sensor
    GM675760Courtesy of GENERAL MOTORS COMPANY
  3. Remove the oil pressure sensor using the J 41712 or equivalent.
