Left Side of the Rear Bumper
Left Side of the Rear Bumper

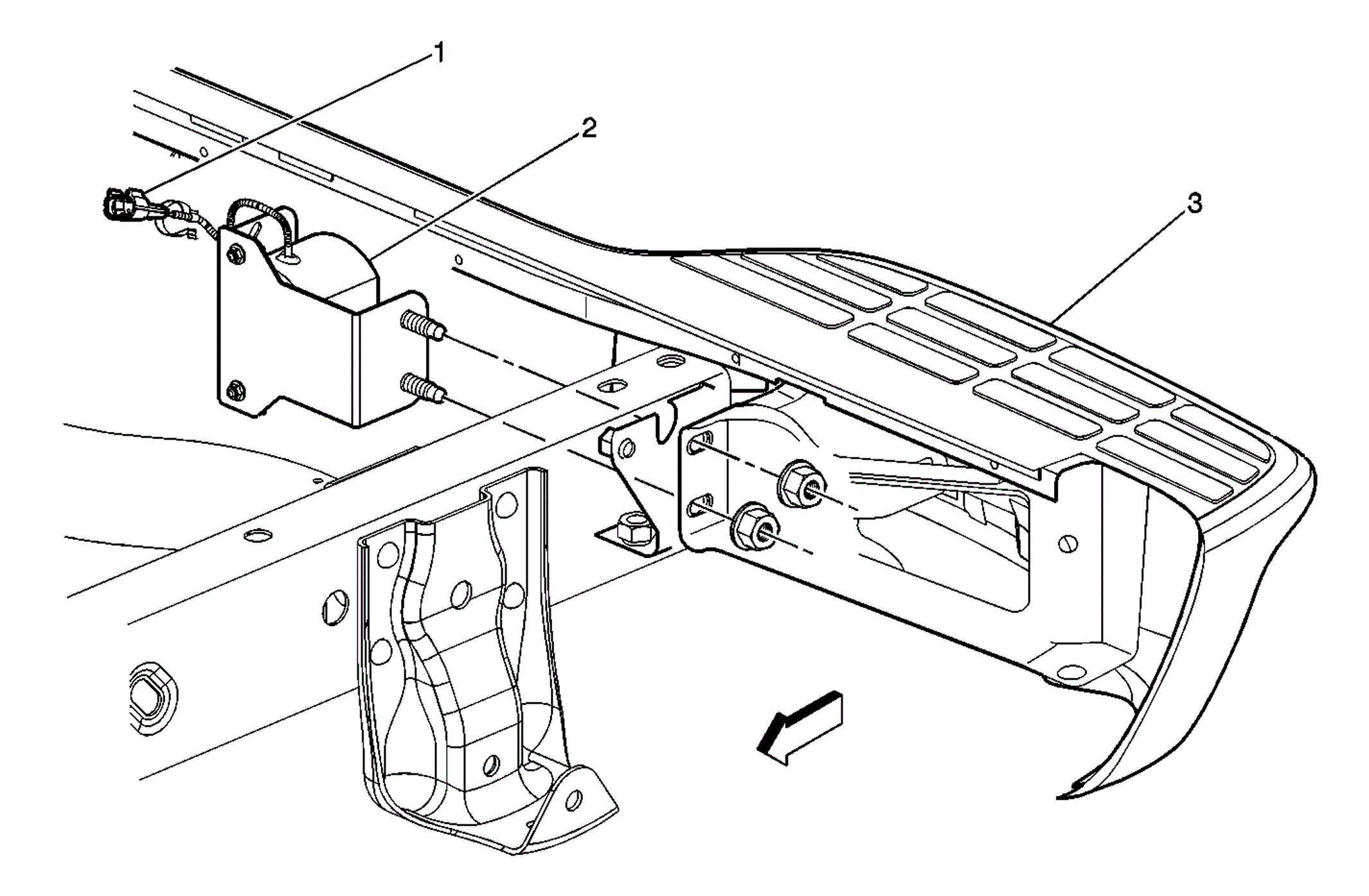

Fig 1: Left Side of the Rear Bumper
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Back-Up Alarm Connector
2
Back-Up Alarm
3
Rear Bumper
Courtesy of GENERAL MOTORS COMPANY
