Instrument Cluster

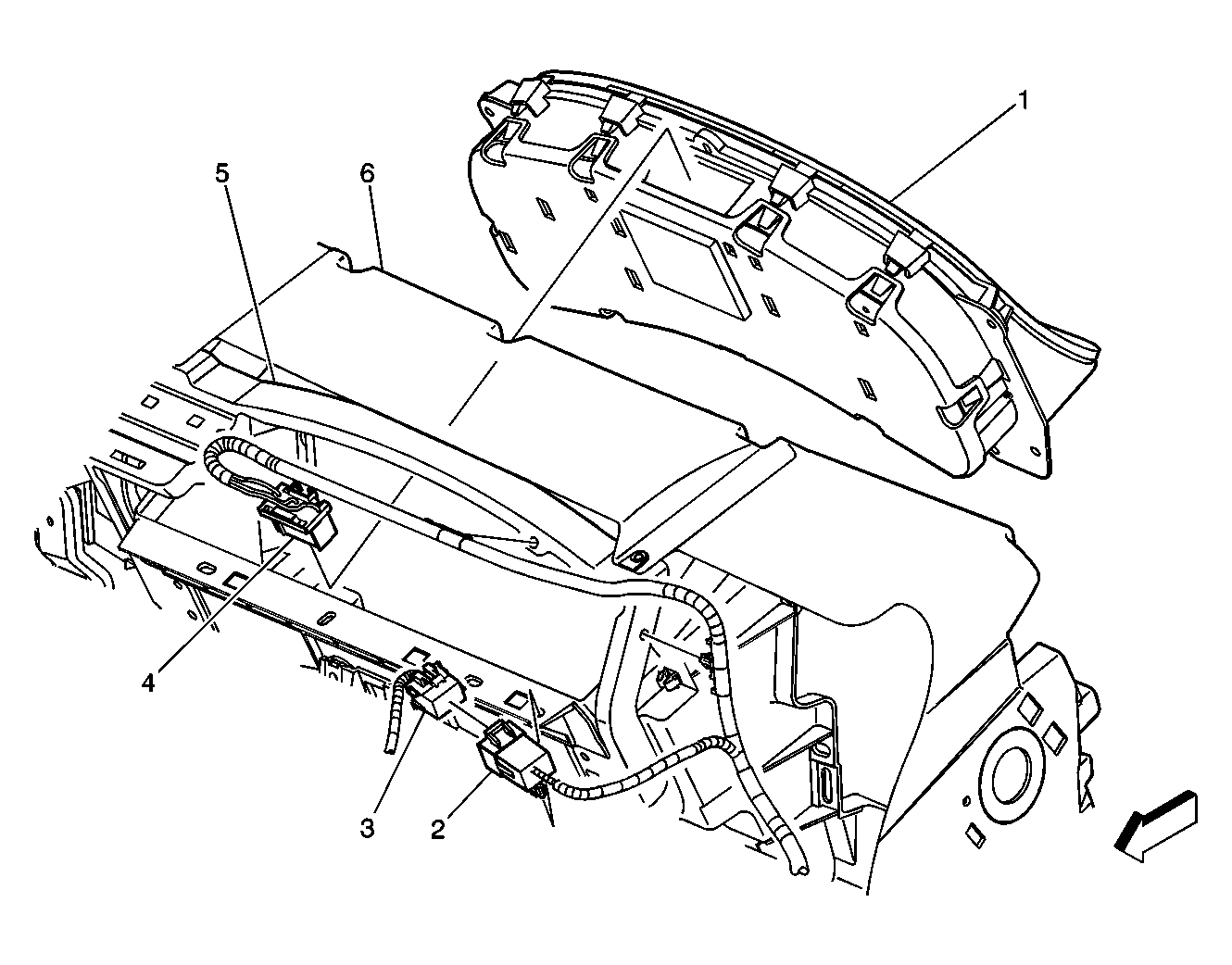

Fig 1: Instrument Cluster
GM310124Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Cluster (IPC)
2 Inline Connector C202 M
3 Inline Connector C202 F
4 Instrument Cluster Electrical Connector
5 Instrument Panel Carrier
6 Instrument Panel
