Cruise Control Wiring Schematics (Diesel Only)

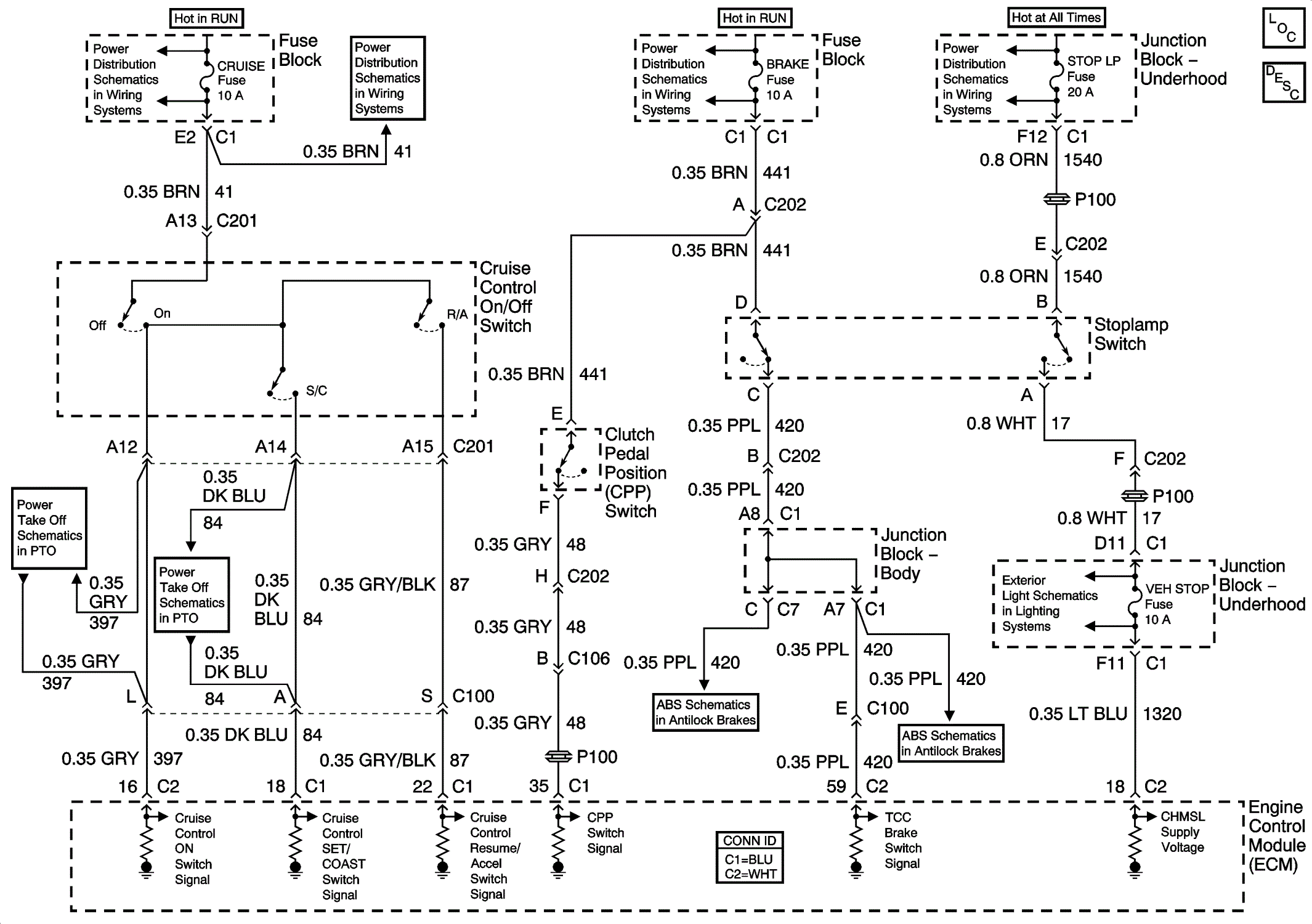

Fig 1: Cruise Control Wiring Schematics (Diesel Only) Wiring Schematic

GM738660

Courtesy of GENERAL MOTORS COMPANY
