Shift Speed Specifications

WARNING: This page is about a different car, the 2002 GMC Cab & Chassis Sierra and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

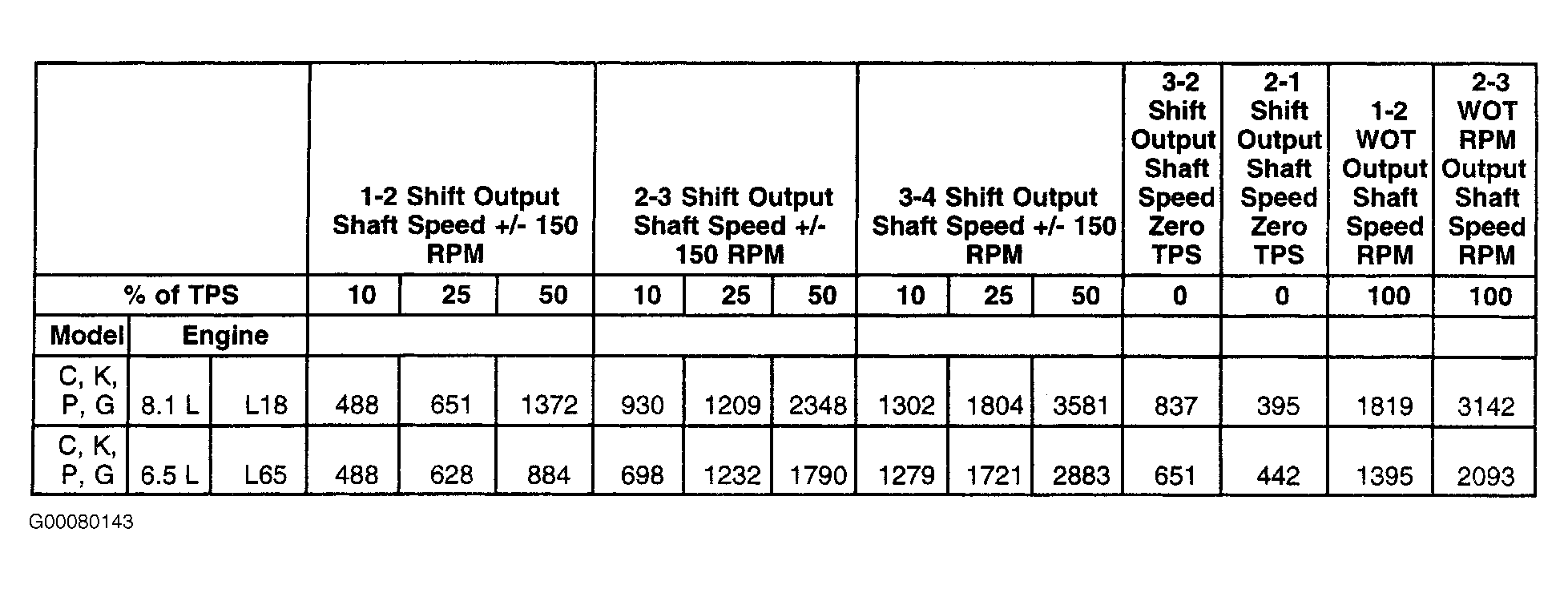

Fig 1: Shift Speed Specifications
G00080143Courtesy of GENERAL MOTORS CORP.
