Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Discharge A/C system, using approved refrigerant recovery/recycling equipment. Disconnect the Orifice Valve wiring harness and position out of the way. See Fig 1. Disconnect the hose clamp and position the line out of the way. Remove Accumulator cover. See Fig 2. Remove A/C Compressor Hose from Accumulator. See Fig 3. Remove Evaporator Hose from Accumulator. See Fig 4. Remove Accumulator from housing. To install reverse removal procedure. Add 2.0 ounces of refrigerant oil to replacement Accumulator.

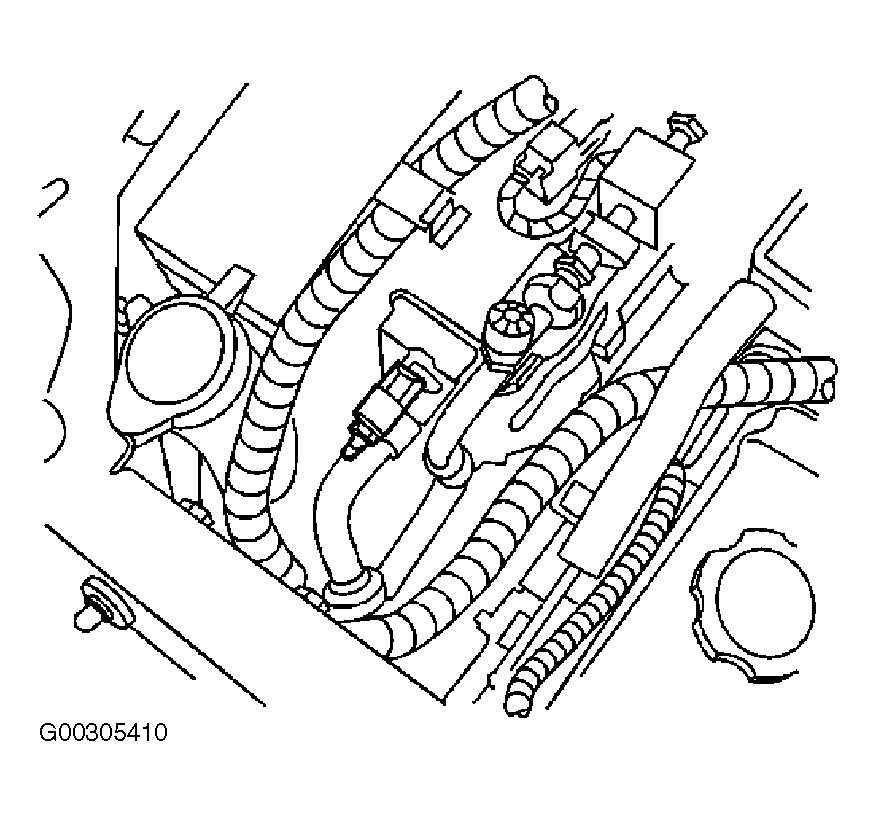

Fig 1: Identifying Orifice Valve Wiring Harness

Courtesy of GENERAL MOTORS CORP.

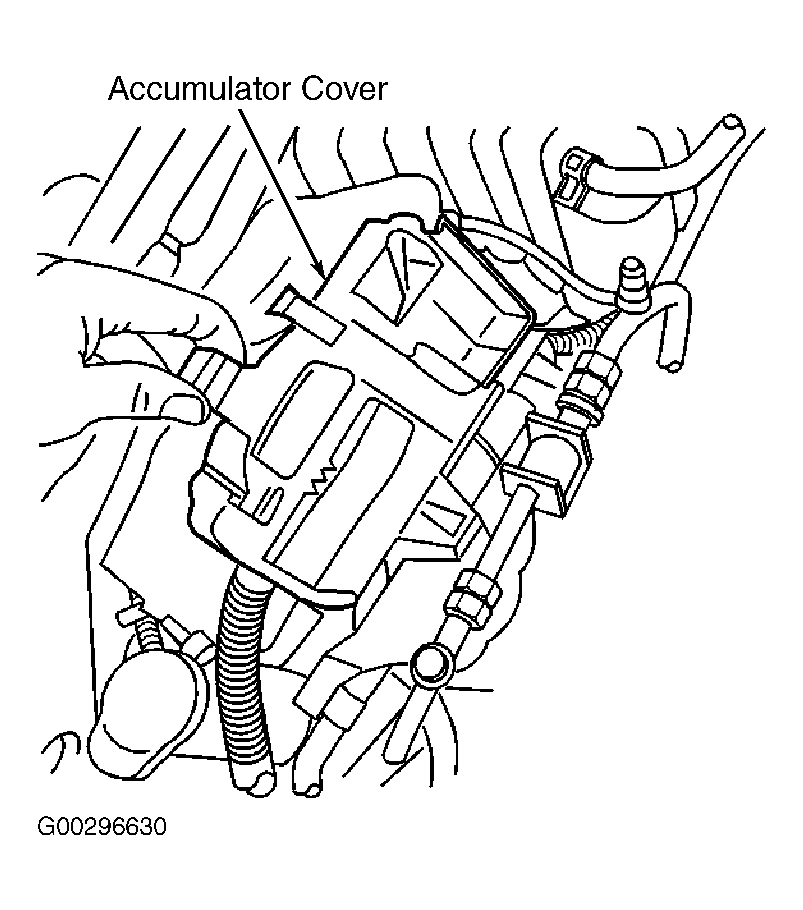

Fig 2: Removing Cover To Access Accumulator

Courtesy of GENERAL MOTORS CORP.

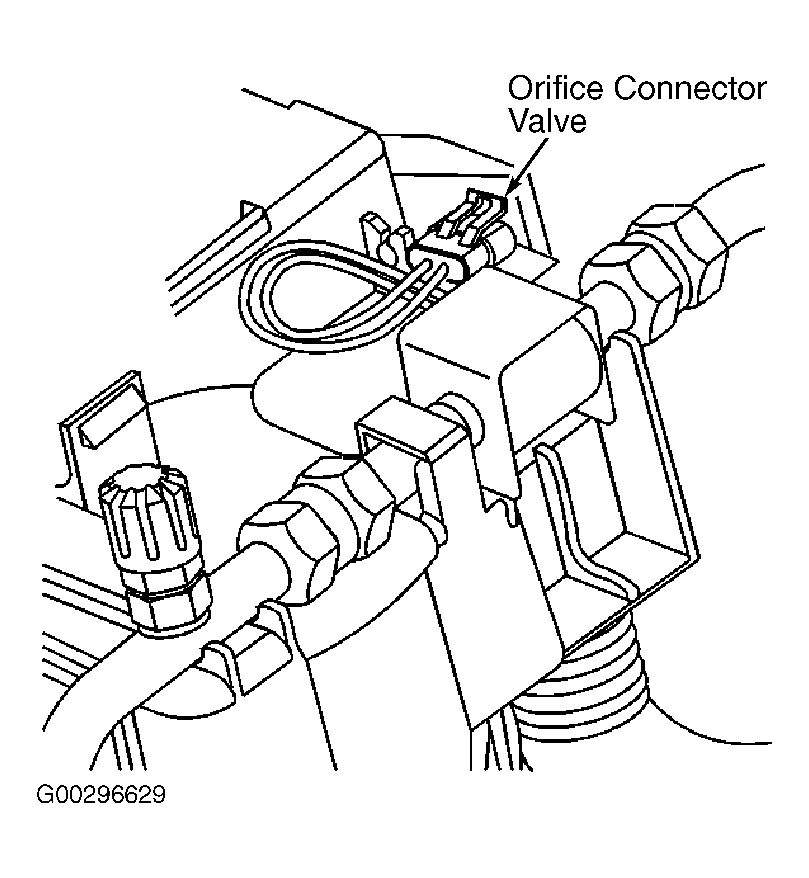

Fig 3: Removing Compressor Hose At Accumulator

Courtesy of GENERAL MOTORS CORP.

Fig 4: Removing Evaporator Hose At Accumulator

Courtesy of GENERAL MOTORS CORP.
