Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for short to ground and short to B+ on the control circuit.
  2. 4. This step tests for continuity from the ESC module on the control circuit and the low reference circuit.

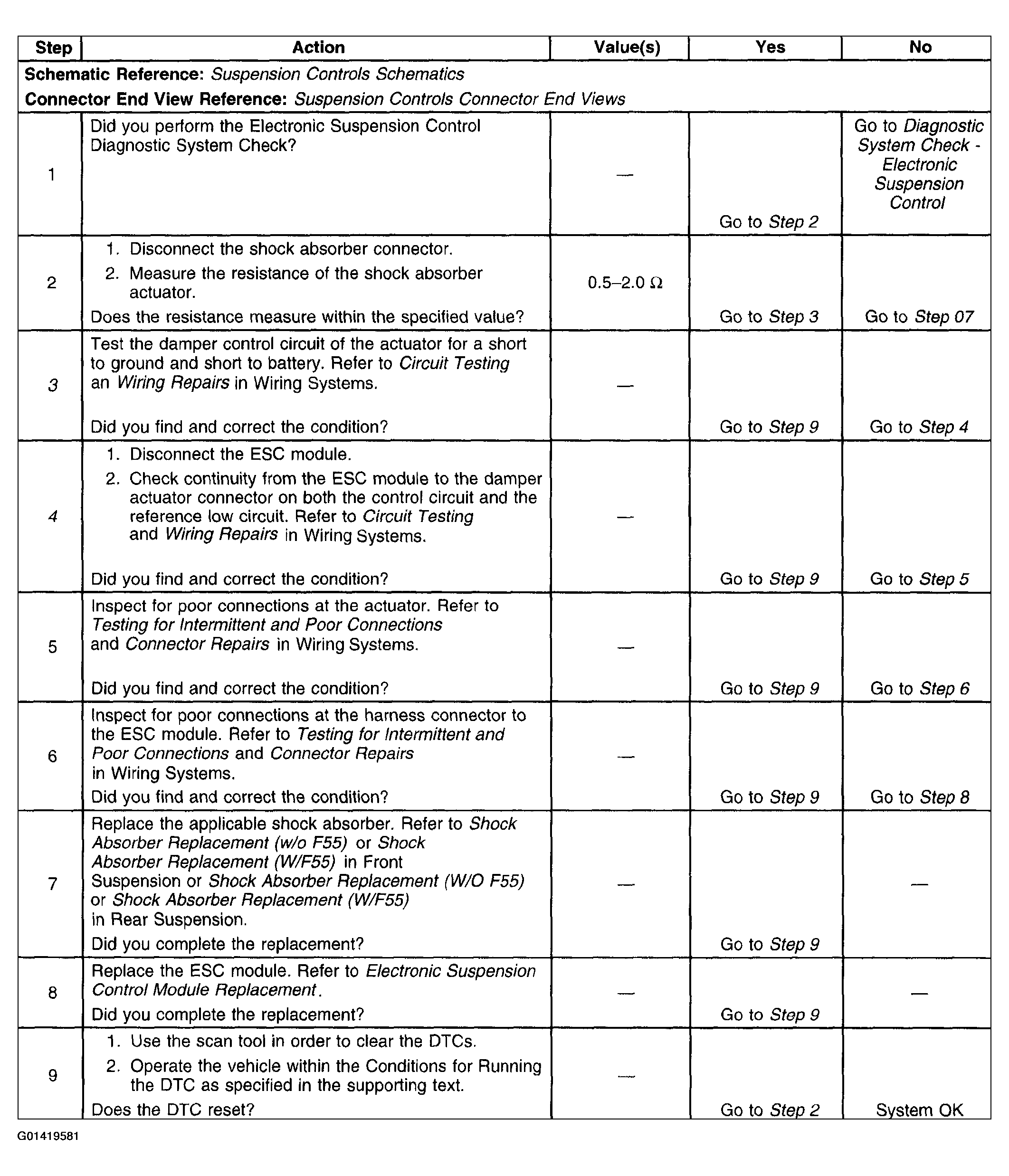

Fig 1: Diagnostic System Check - DTC C0577, C0579, C0582, C0584, C0587, C0589, C0592, or C0594
G01419581Courtesy of GENERAL MOTORS CORP.
