Removal & Installation
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

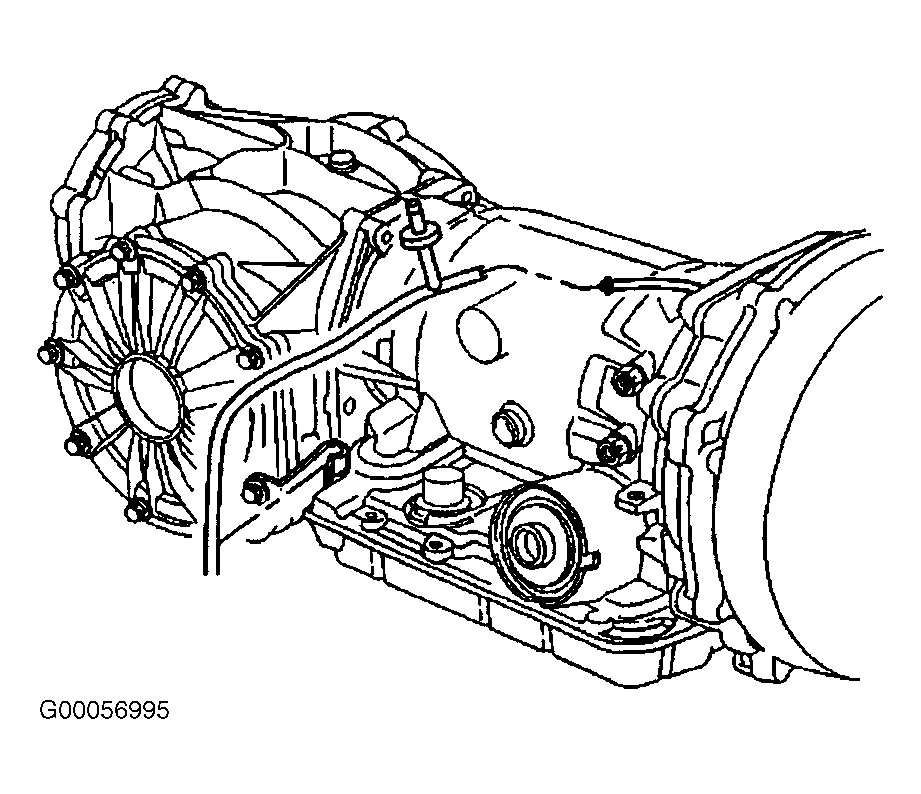

- Raise and suitably support the vehicle. Release the transmission vent hose from the lower retaining clip. See Fig 1
.NOTE: Observe the orientation of the transmission vent hose check valve prior to removal of the hose.
- Remove the transmission vent hose from the transmission vent tube.
- To install, connect the transmission vent hose to the transmission vent tube. Orient the transmission vent hose check valve as noted prior to removal. Secure the transmission vent hose to the lower retaining clip. Lower the vehicle.
