Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut from the left engine mount strut bracket. Refer to Engine Mount Strut Replacement .

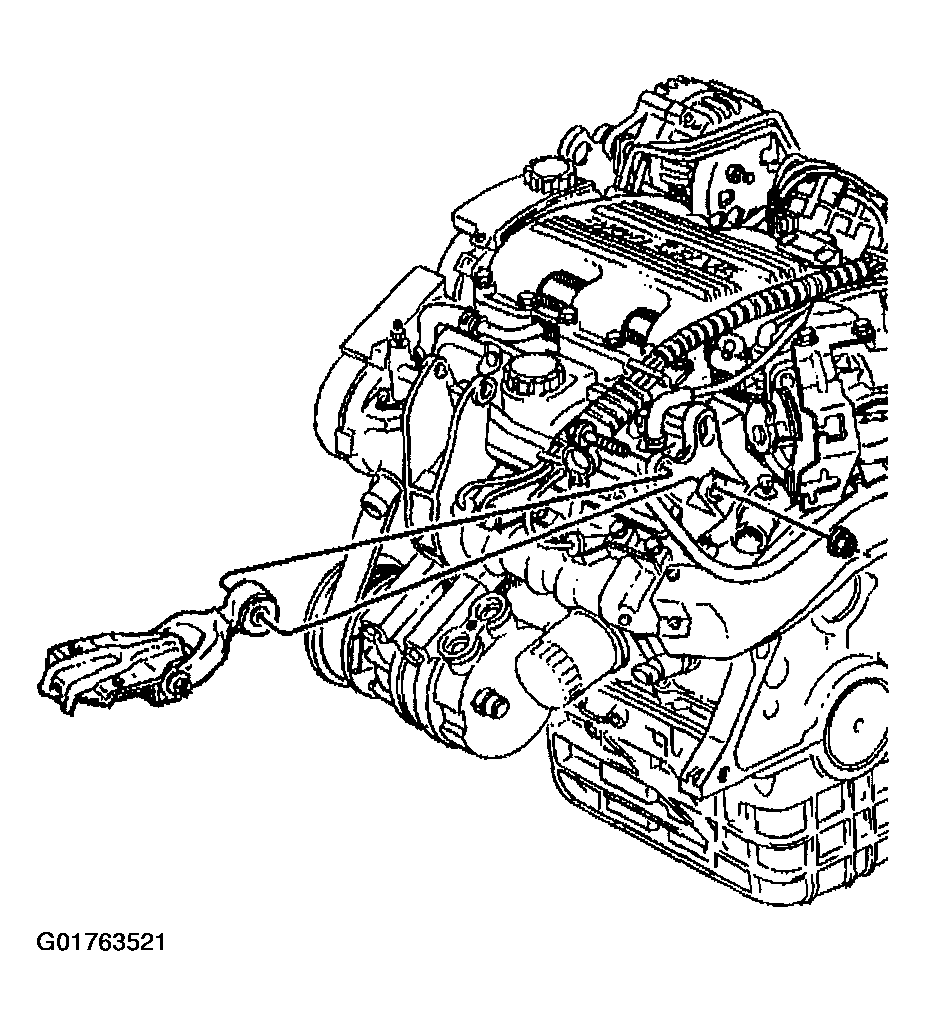

    Fig 1: Engine Mount Strut
    G01763521Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  3. Remove the left engine mount strut bracket.

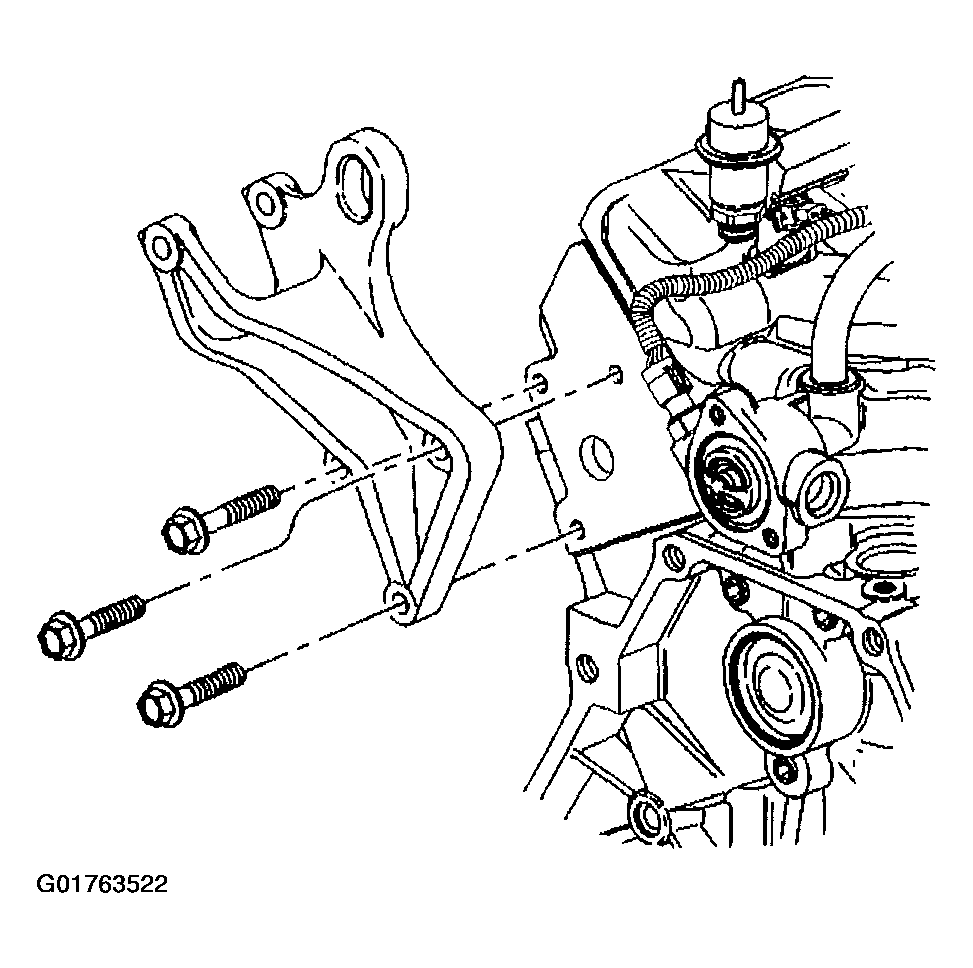

    Fig 2: Left Engine Mount Strut Bracket
    G01763522Courtesy of GENERAL MOTORS CORP.
