Analog Instrument Panels - Old Style: Description

NOTE: This article applies to "old style" "C" & "K" series vehicles. For "new style" "C" & "K" series vehicles, see ANALOG INSTRUMENT PANELS -- SIERRA, SILVERADO, SUBURBAN, TAHOE, YUKON & YUKON XL article.

Instrument panels are equipped with electro-mechanical gauges, electric speedometer and warning lights. A tachometer is available as an option. See Fig 1 and Fig 2 .

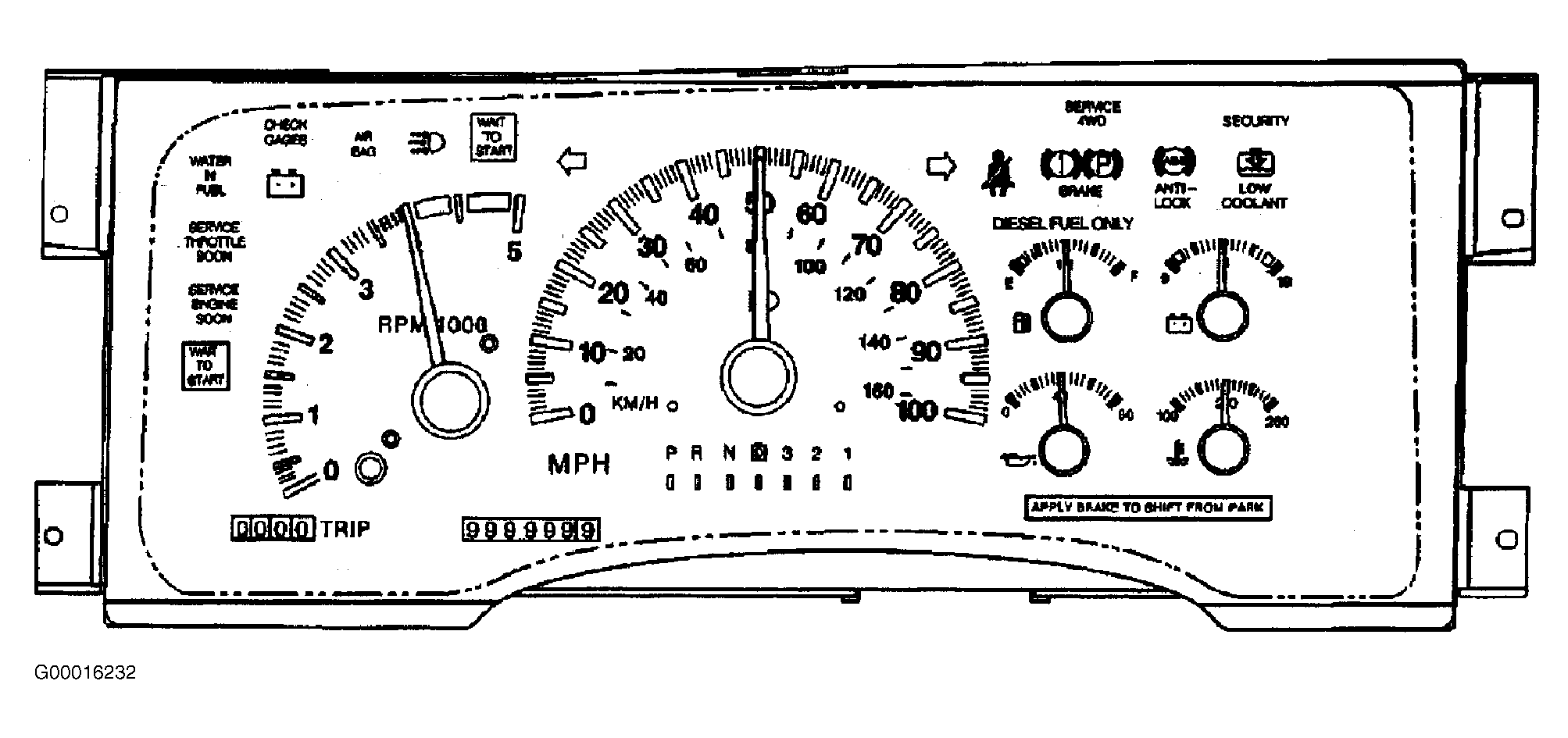

Fig 1: Identifying Instrument Cluster Components (Diesel)

Courtesy of GENERAL MOTORS CORP.

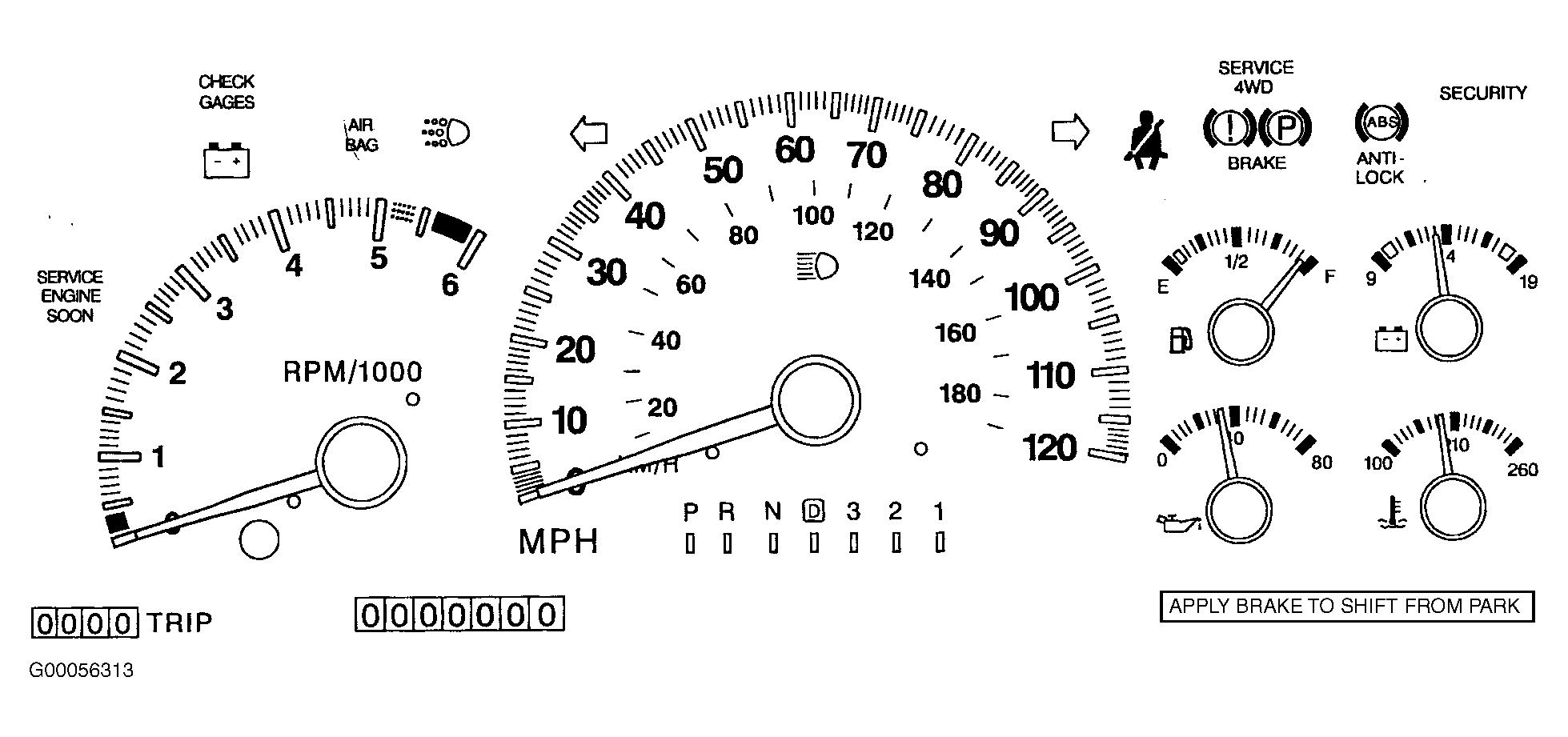

Fig 2: Identifying Instrument Cluster Components (Gasoline)

Courtesy of GENERAL MOTORS CORP.
