Connector Identification

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1998 GMC Savana Special, 1998 GMC Savana Camper Special, 1998 GMC Savana, 1998 Chevrolet RV Cutaway, and 1998 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

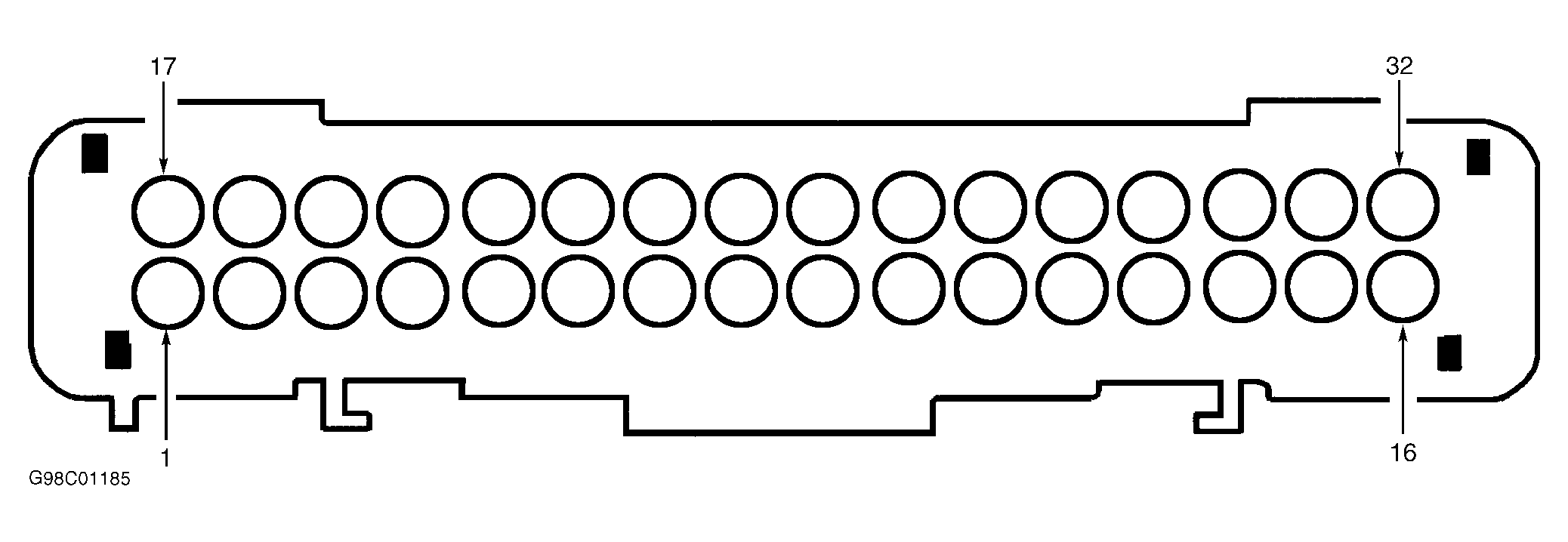

Fig 1: VCM 32-Pin Harness Connectors C1 (Blue), C2 (Red) & C3 (Clear Or Gray)
G98C01185Courtesy of GENERAL MOTORS CORP.

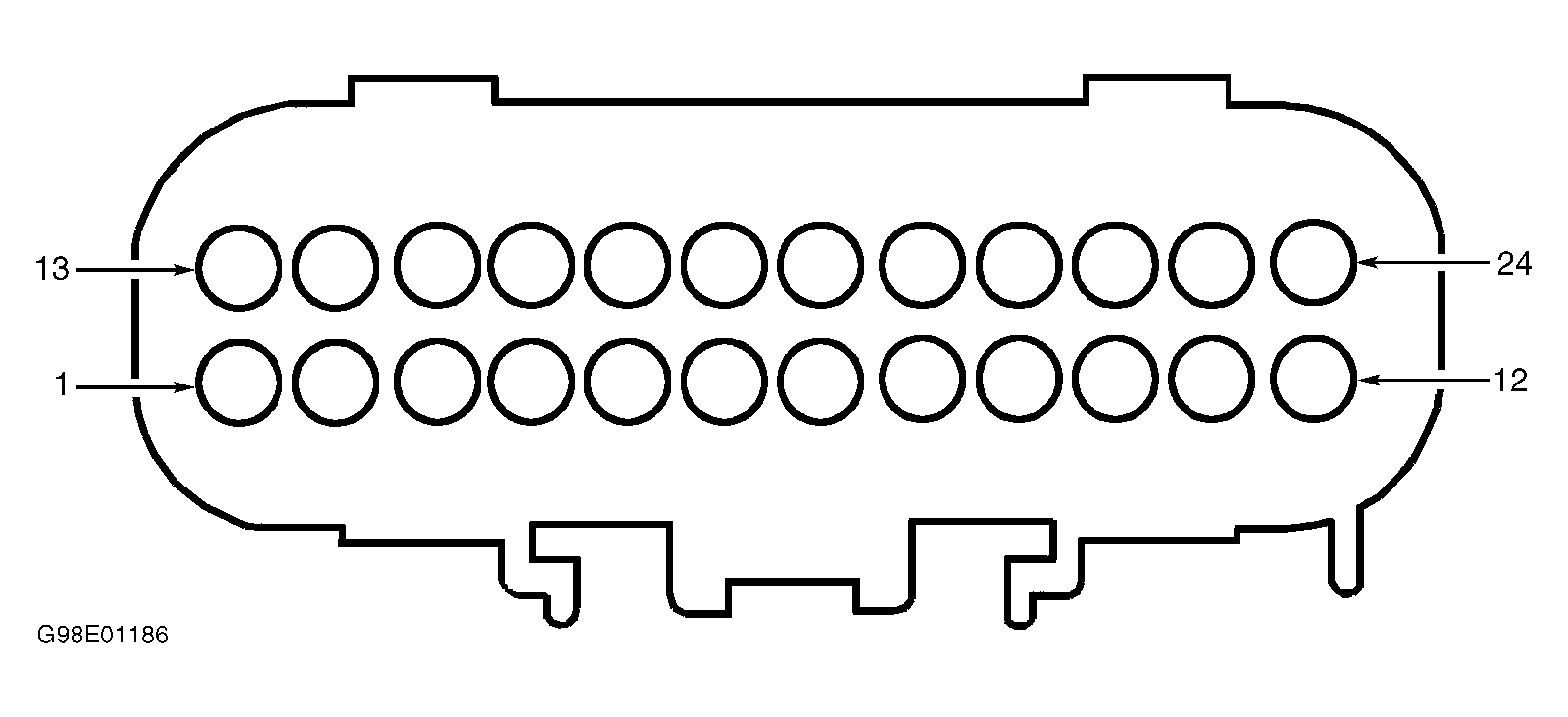

Fig 2: VCM 24-Pin Harness Connector C4 (Black)
G98E01186Courtesy of GENERAL MOTORS CORP.
