C215 (Four Door Utility W/ 4 Speakers Or Utility W/ 6 Speakers, Four Door W/ Rear Wipers, W/O Liftgate, W/ M/T)

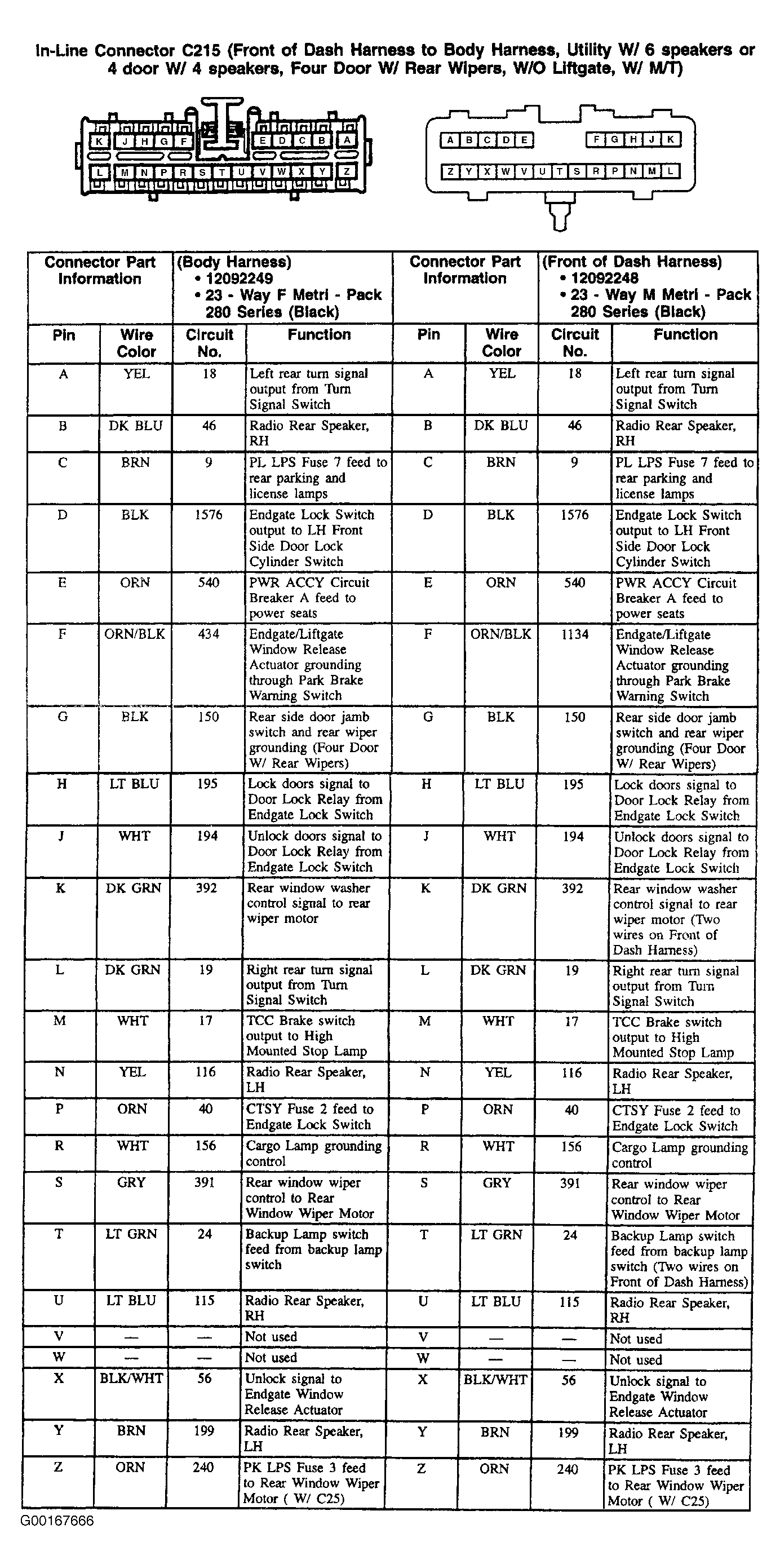

Fig 1: C215 (Four Door W/ 4 Speakers Or Utility W/ 6 Speakers, Four Door W/ Rear Wipers, W/O Liftgate, W/ M/T) - 23-Pin Connector, Black
G00167666Courtesy of GENERAL MOTORS CORP.
