VCM 32-Pin Connector

WARNING: This page is about a different variant/trim than selected.

Fig 1: Vehicle Control Module 32-Pin Connector End View (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

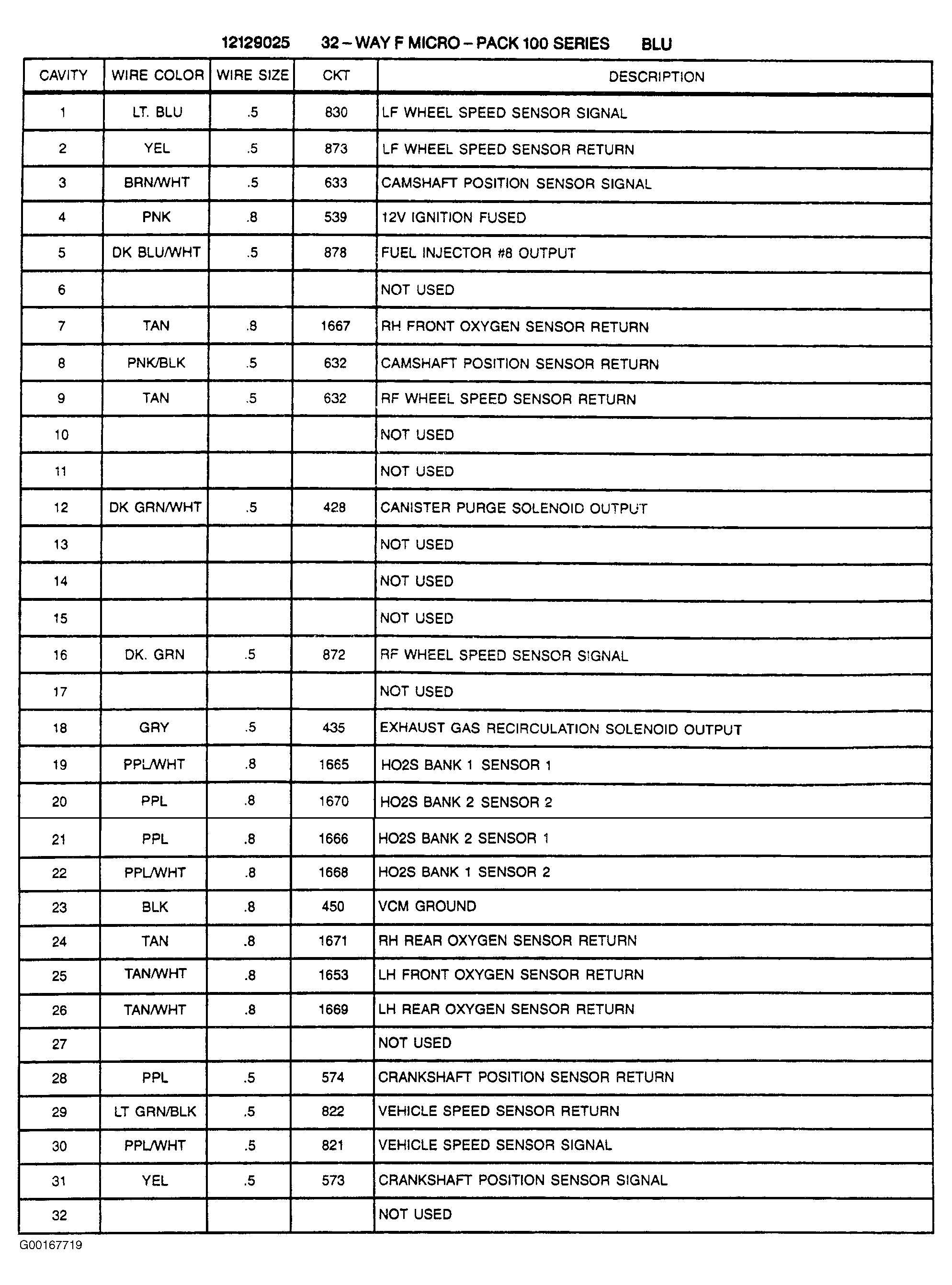

Fig 2: Vehicle Control Module 32-Pin Connector End View C1 (Blue) - Legend (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

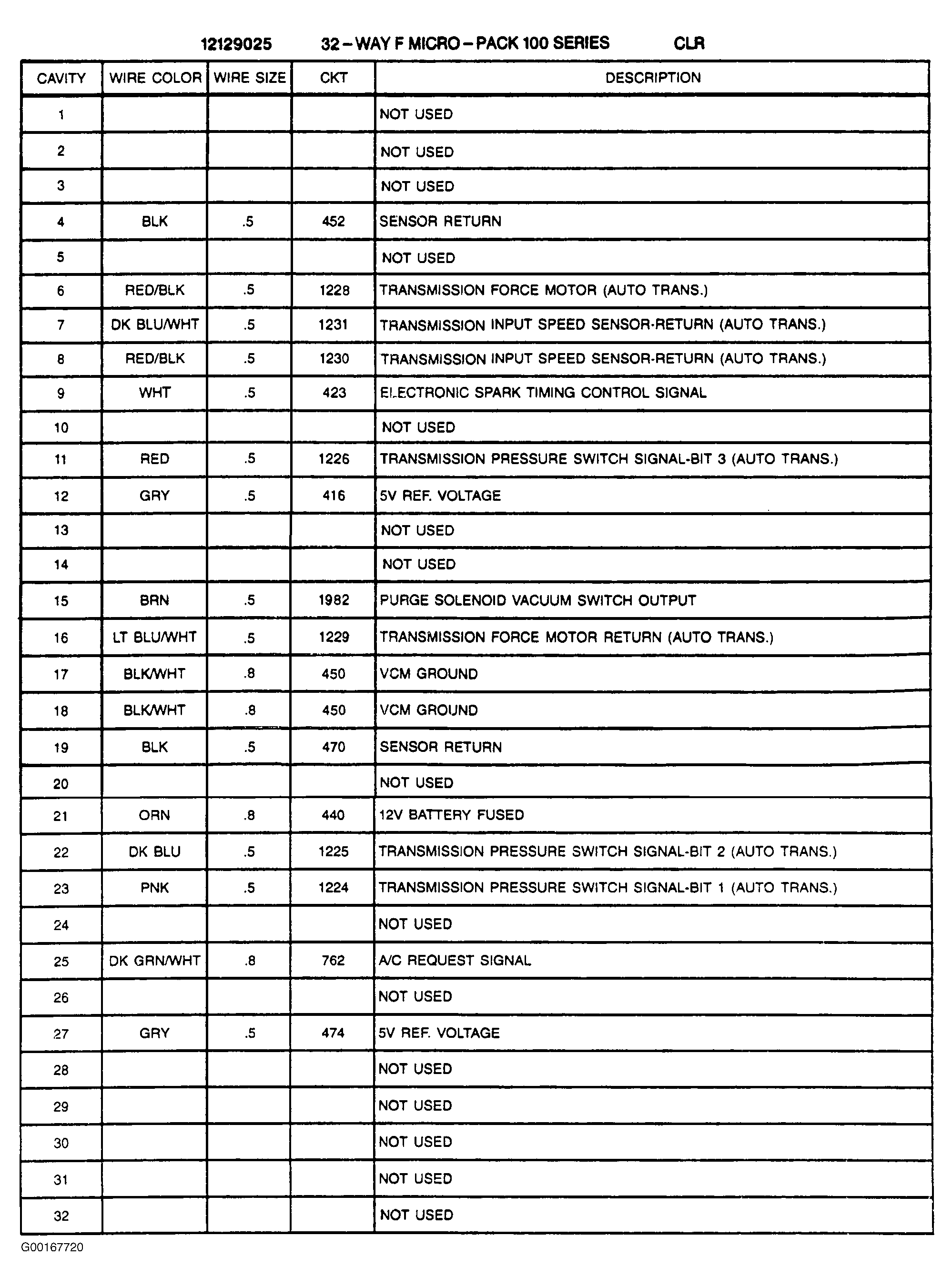

Fig 3: Vehicle Control Module 32-Pin Connector End View C3 (Clear) - Legend (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

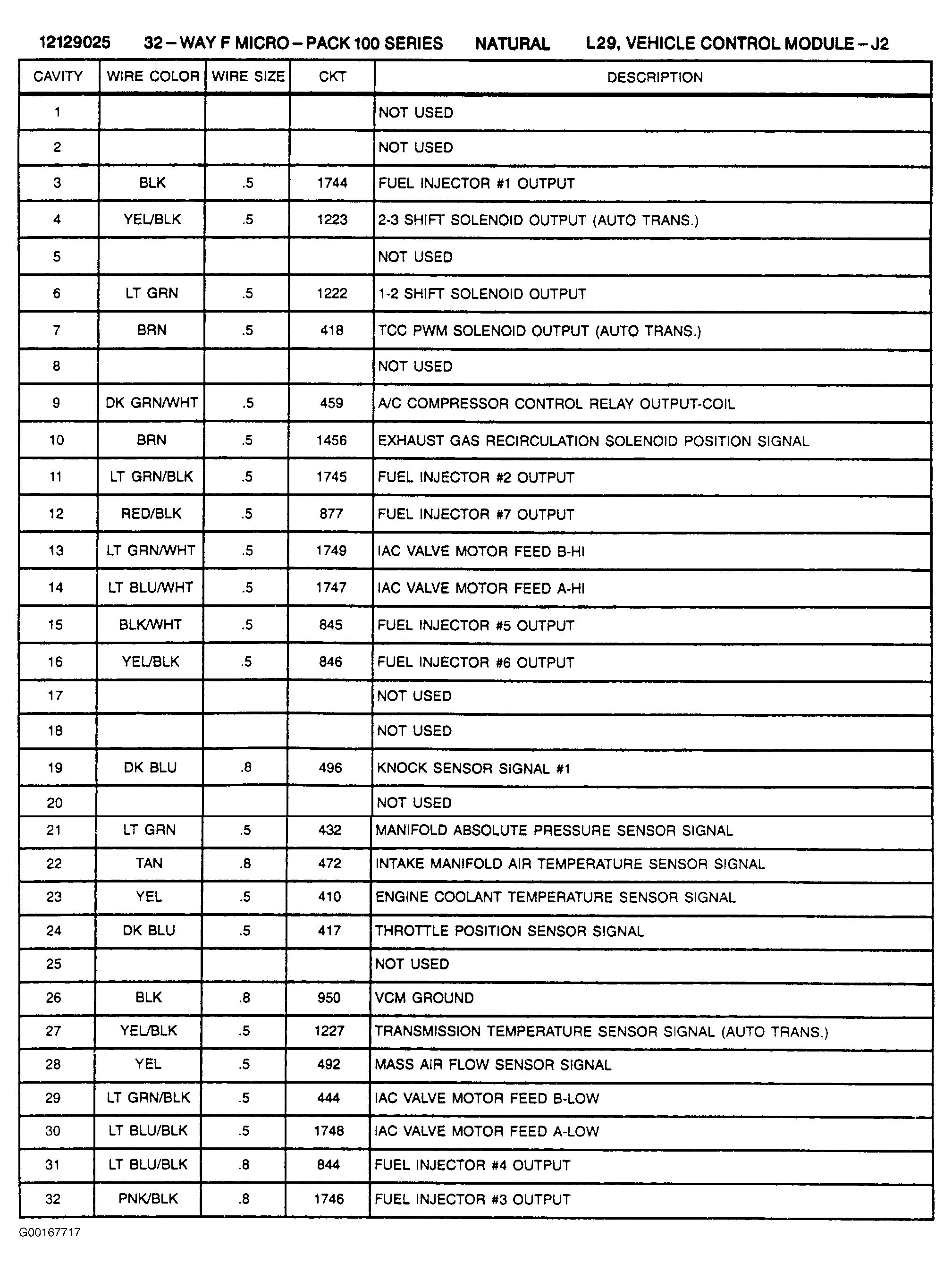

Fig 4: Vehicle Control Module 32-Pin Connector End View J2 (Natural) - Legend (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
