Section 11 (Engine Controls - Tests W/Codes - 7.4L (P Series))
>>
Connector Identification
>>
VCM Connectors (VIN J)
>>
VCM 24-Pin Connector
VCM 24-Pin Connector
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Vehicle Control Module 24-Pin Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

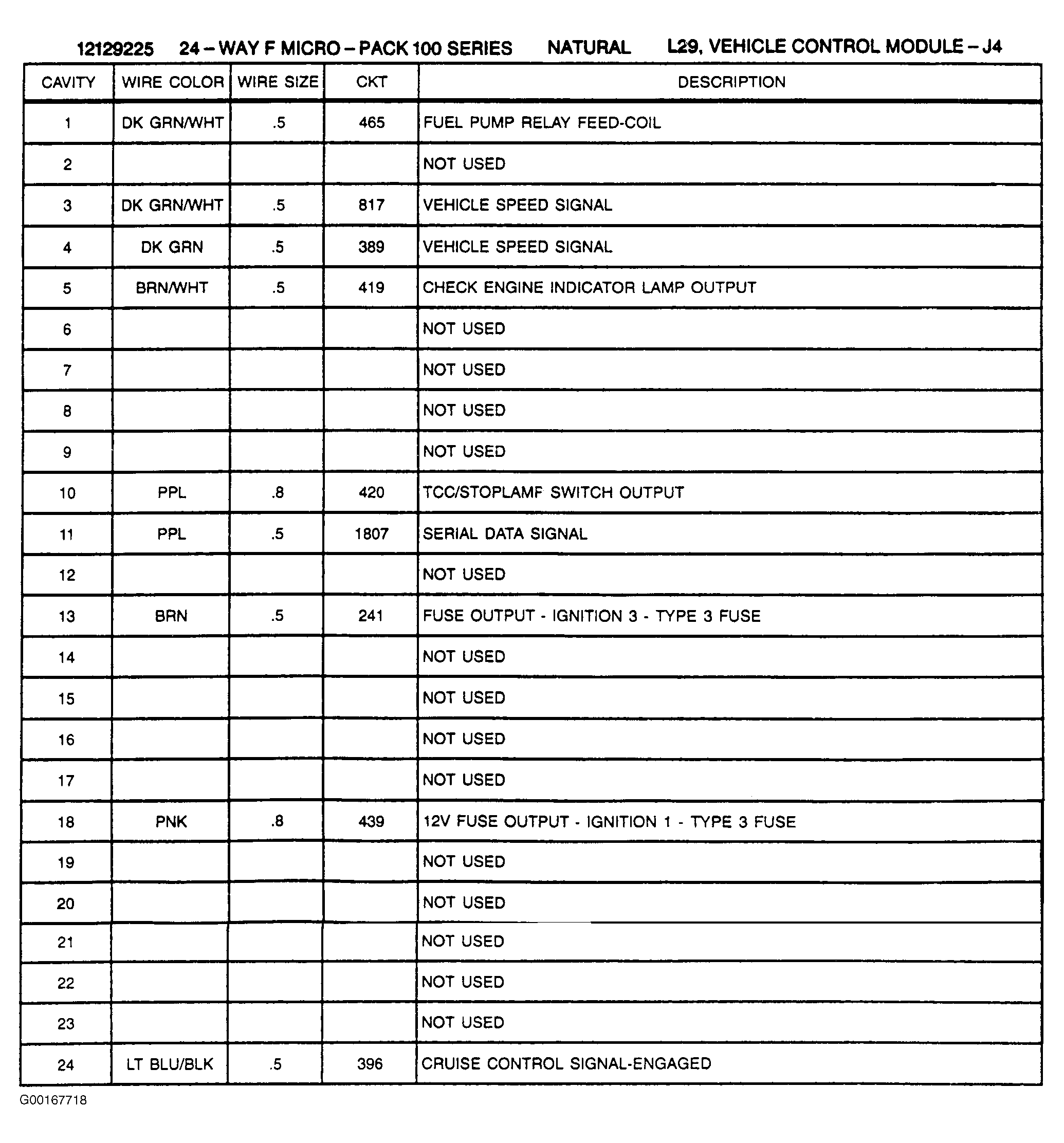

Fig 2: Vehicle Control Module 24-Pin Connector End View J4 (Natural) - Legend (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
