Pcm J2

WARNING: This page is about a different variant/trim than selected.

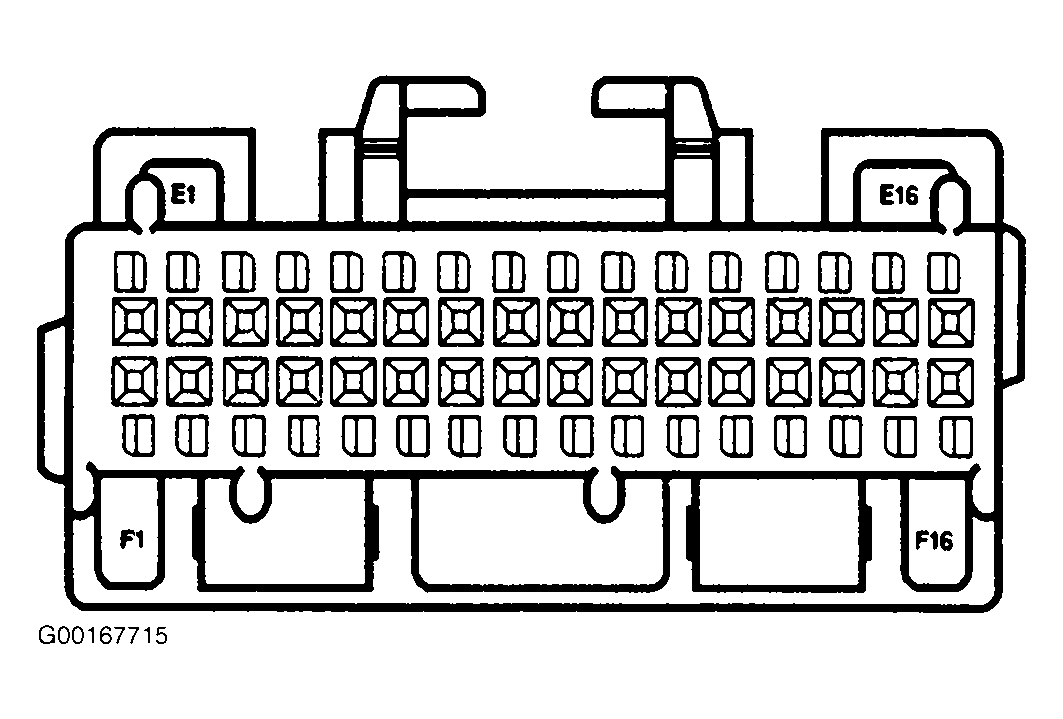

Fig 1: Engine Control Module 32-Pin Connector End View J2 (1 Of 2)
G00167715Courtesy of GENERAL MOTORS CORP.

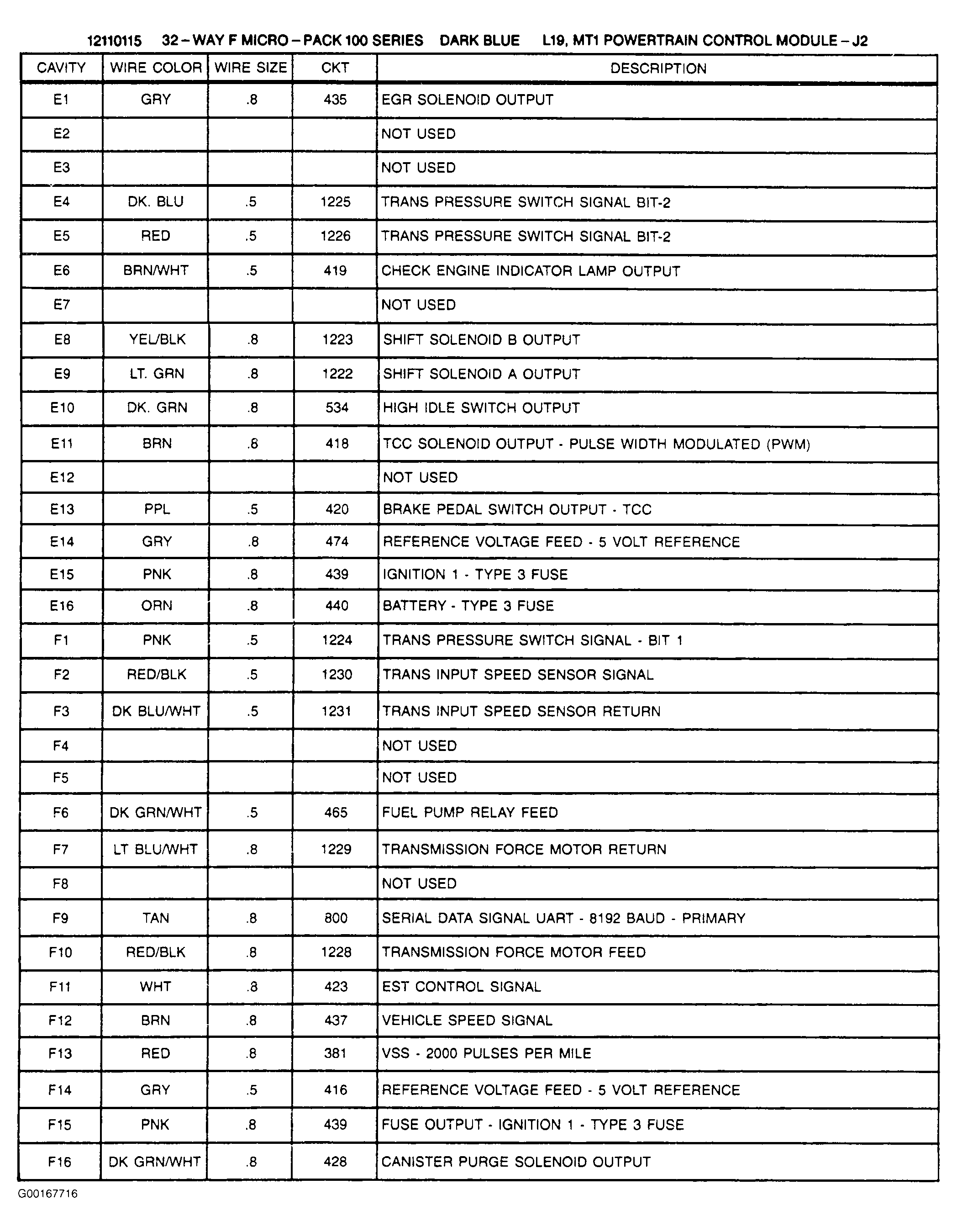

Fig 2: Engine Control Module 32-Pin Connector End View J2 (Dark Blue) - Legend (2 Of 2)
G00167716Courtesy of GENERAL MOTORS CORP.
