Pcm J1

WARNING: This page is about a different variant/trim than selected.

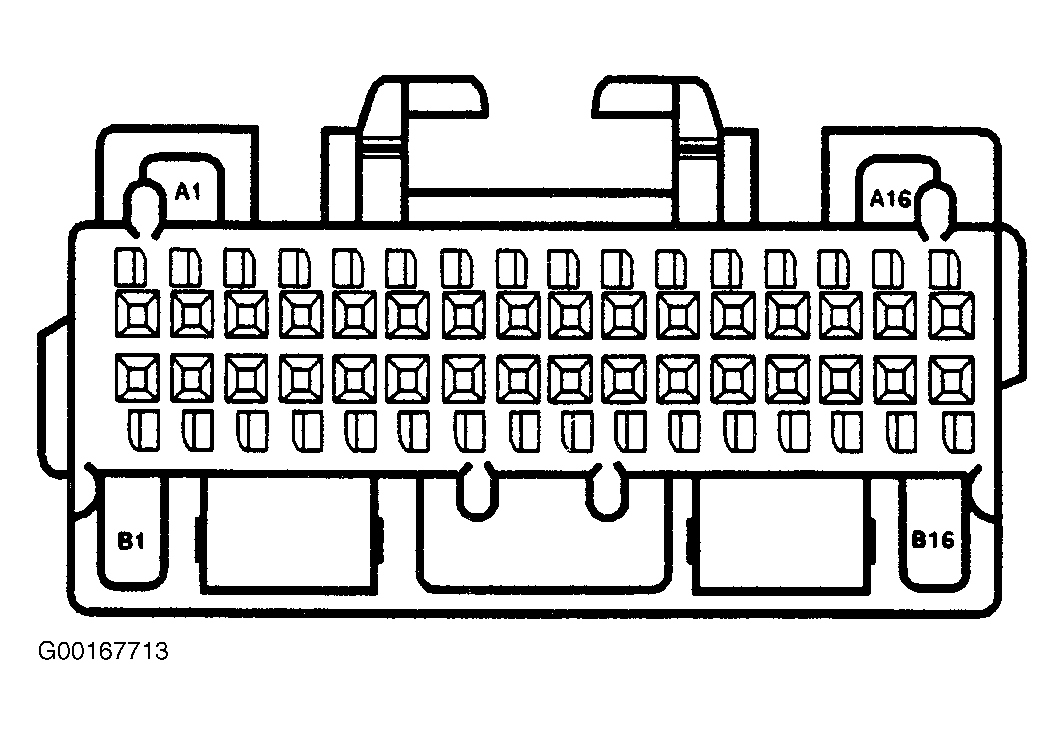

Fig 1: Engine Control Module 32-Pin Connector End View J1 (1 Of 2)
G00167713Courtesy of GENERAL MOTORS CORP.

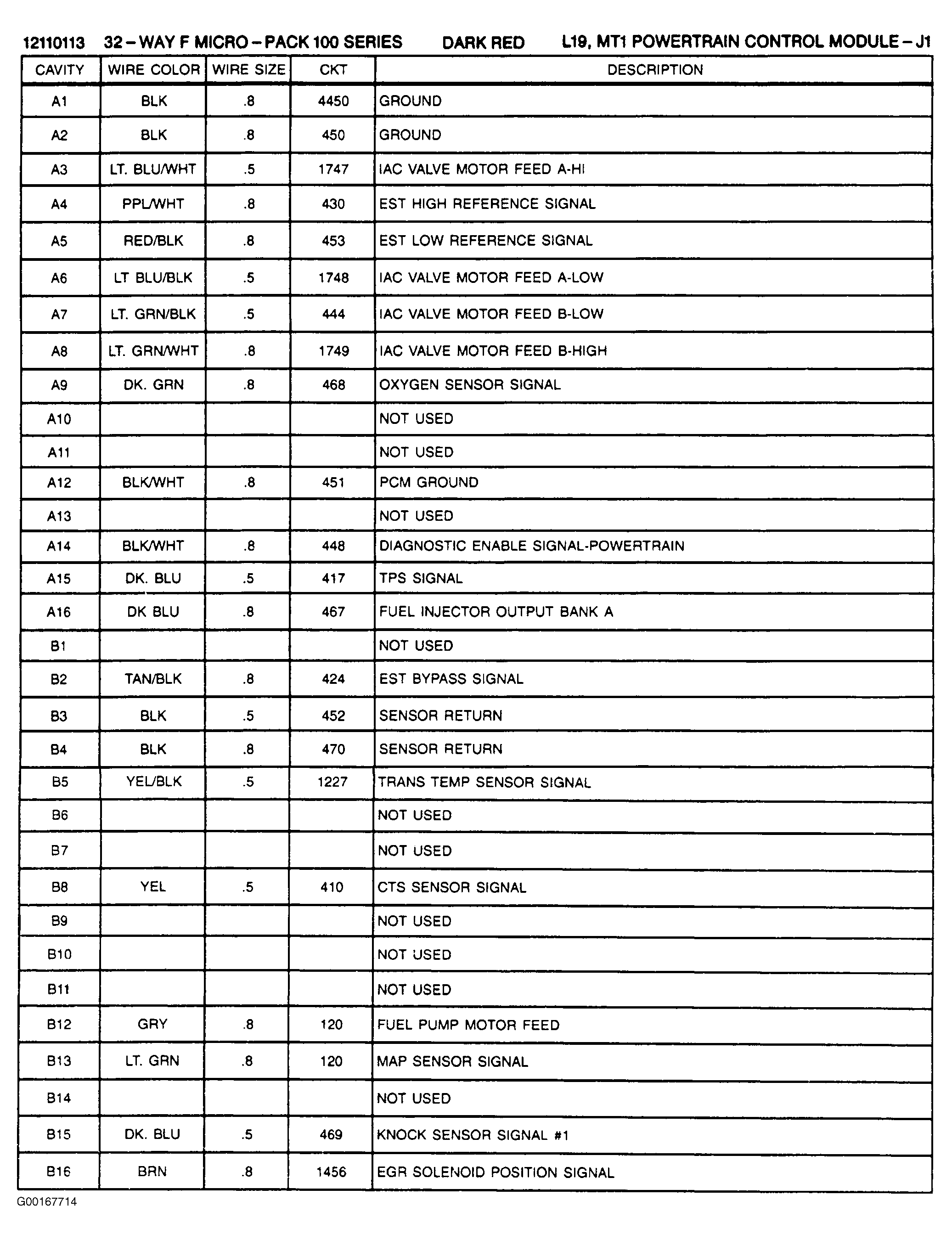

Fig 2: Engine Control Module 32-Pin Connector End View J1 (Dark Red) - Legend (2 Of 2)
G00167714Courtesy of GENERAL MOTORS CORP.
