VCM 32-Pin Connector C3

WARNING: This page is about a different variant/trim than selected.
Fig 1: Vehicle Control Module 32-Pin Connector End View C3 (Light Blue) (1 Of 2)
G00167731Courtesy of GENERAL MOTORS CORP.

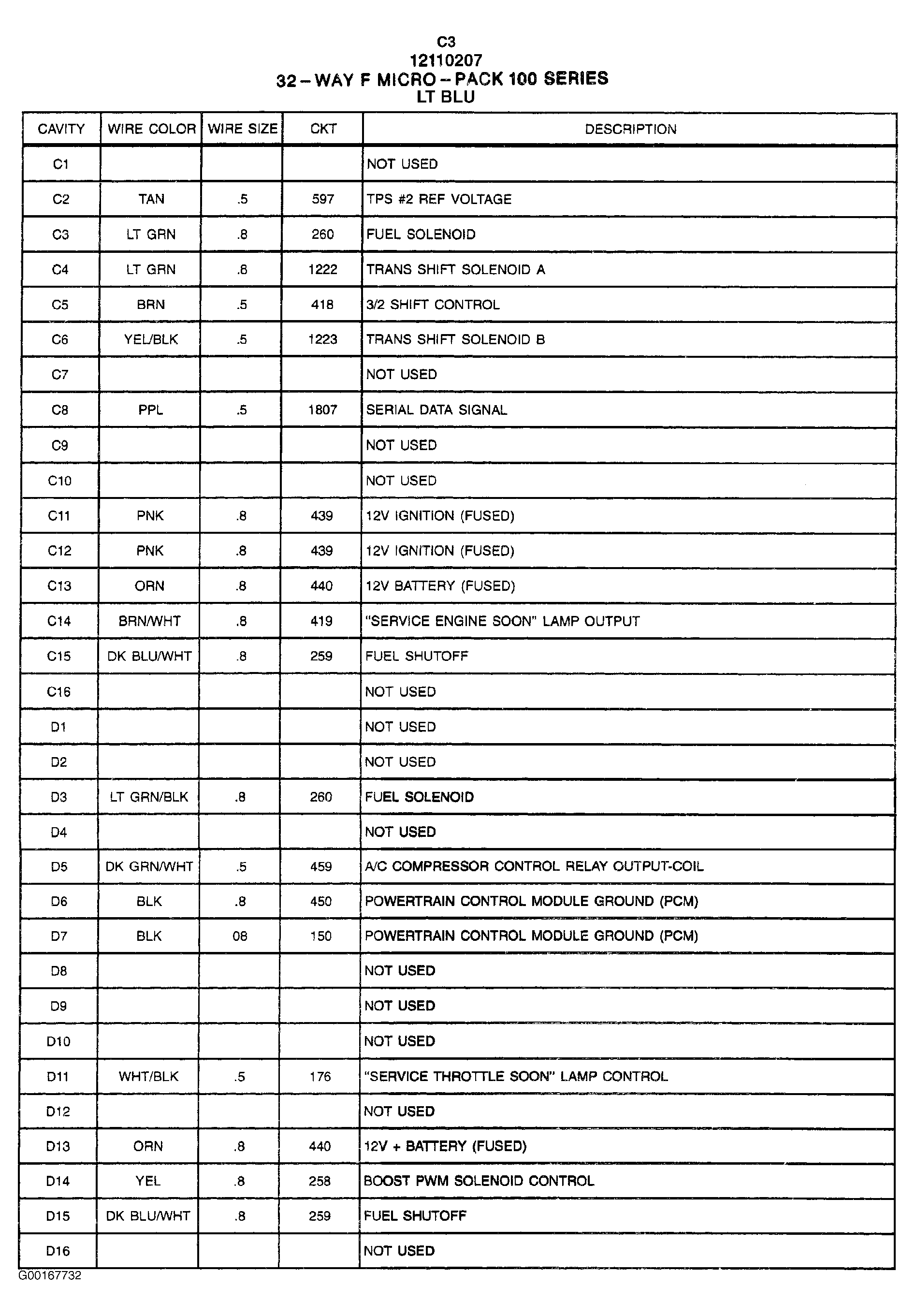

Fig 2: Vehicle Control Module 32-Pin Connector End View C3 (Light Blue) - Legend (2 Of 2)
G00167732Courtesy of GENERAL MOTORS CORP.
