VCM 32-Pin Connector C1

WARNING: This page is about a different variant/trim than selected.

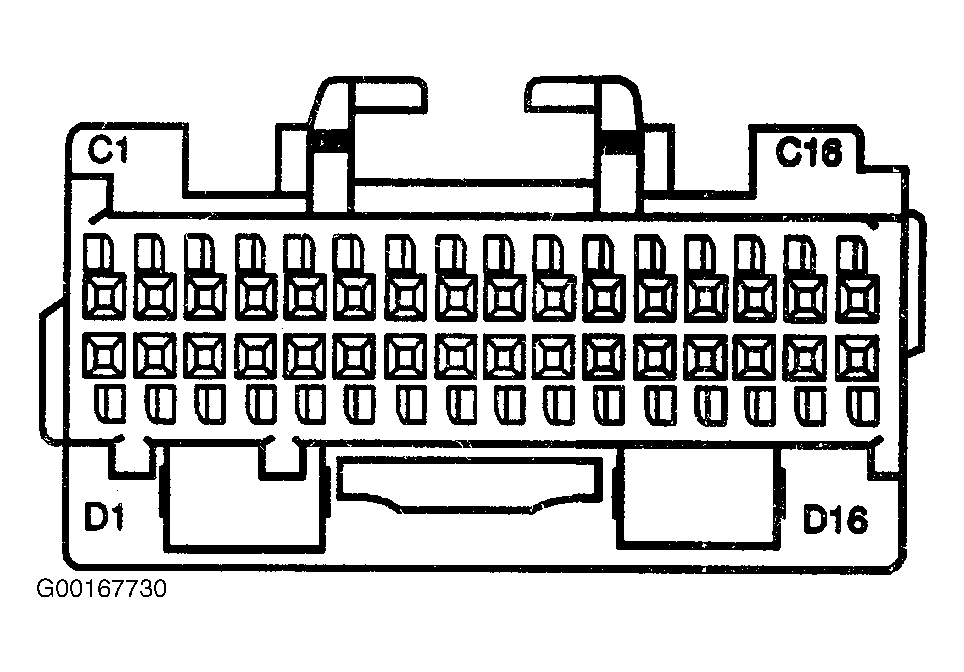

Fig 1: Vehicle Control Module 32-Pin Connector End View C1 (Brown) (1 Of 2)
G00167730Courtesy of GENERAL MOTORS CORP.

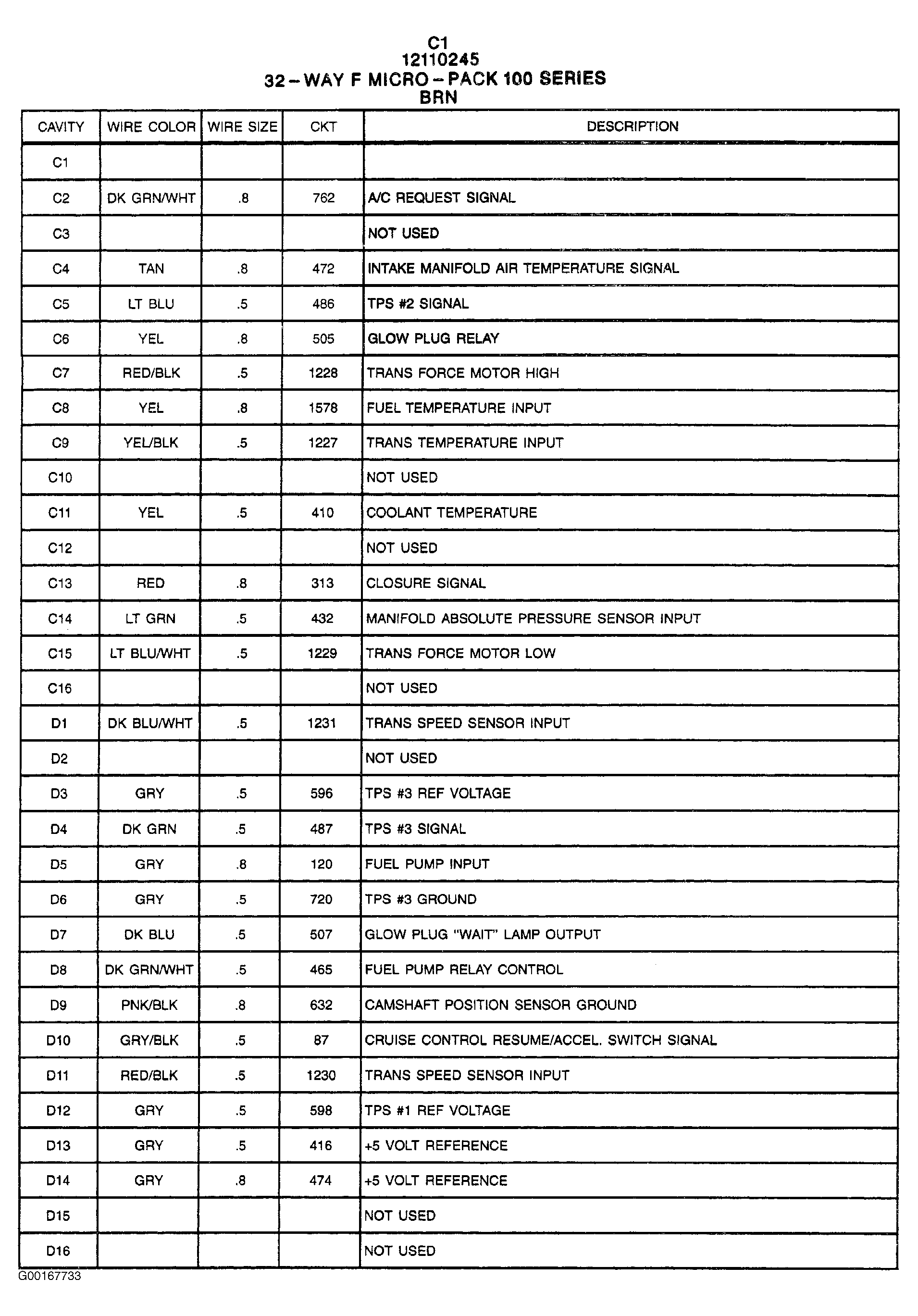

Fig 2: Vehicle Control Module 32-Pin Connector End View C1 (Brown) - Legend (2 Of 2)
G00167733Courtesy of GENERAL MOTORS CORP.
