VCM 24-Pin Connector

WARNING: This page is about a different variant/trim than selected.

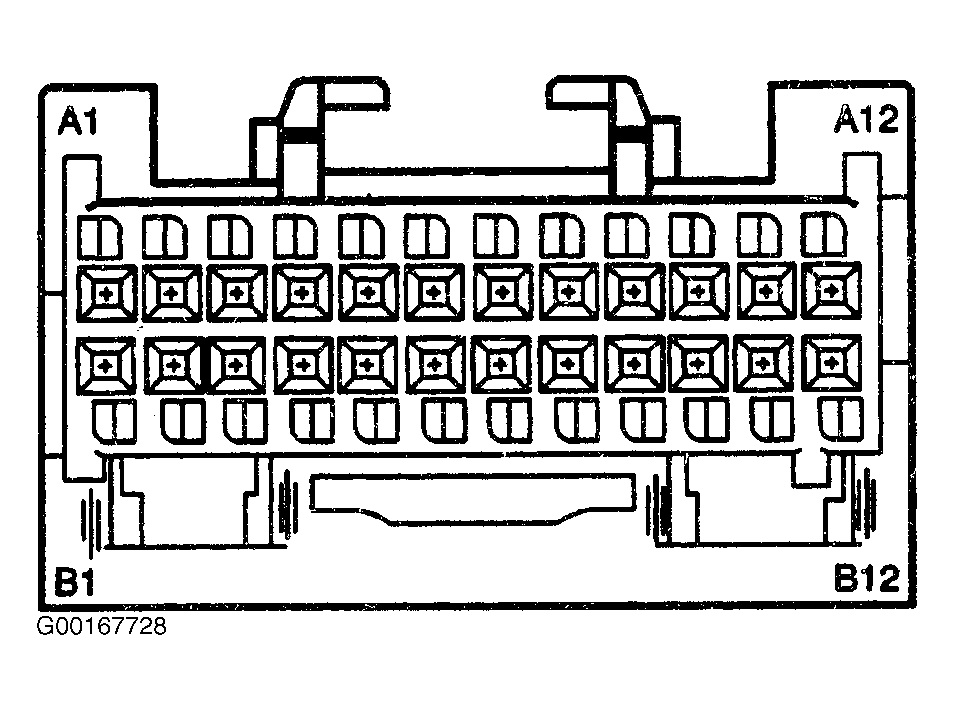

Fig 1: Vehicle Control Module 24-Pin Connector End View C2 (Brown) (1 Of 2)
G00167728Courtesy of GENERAL MOTORS CORP.

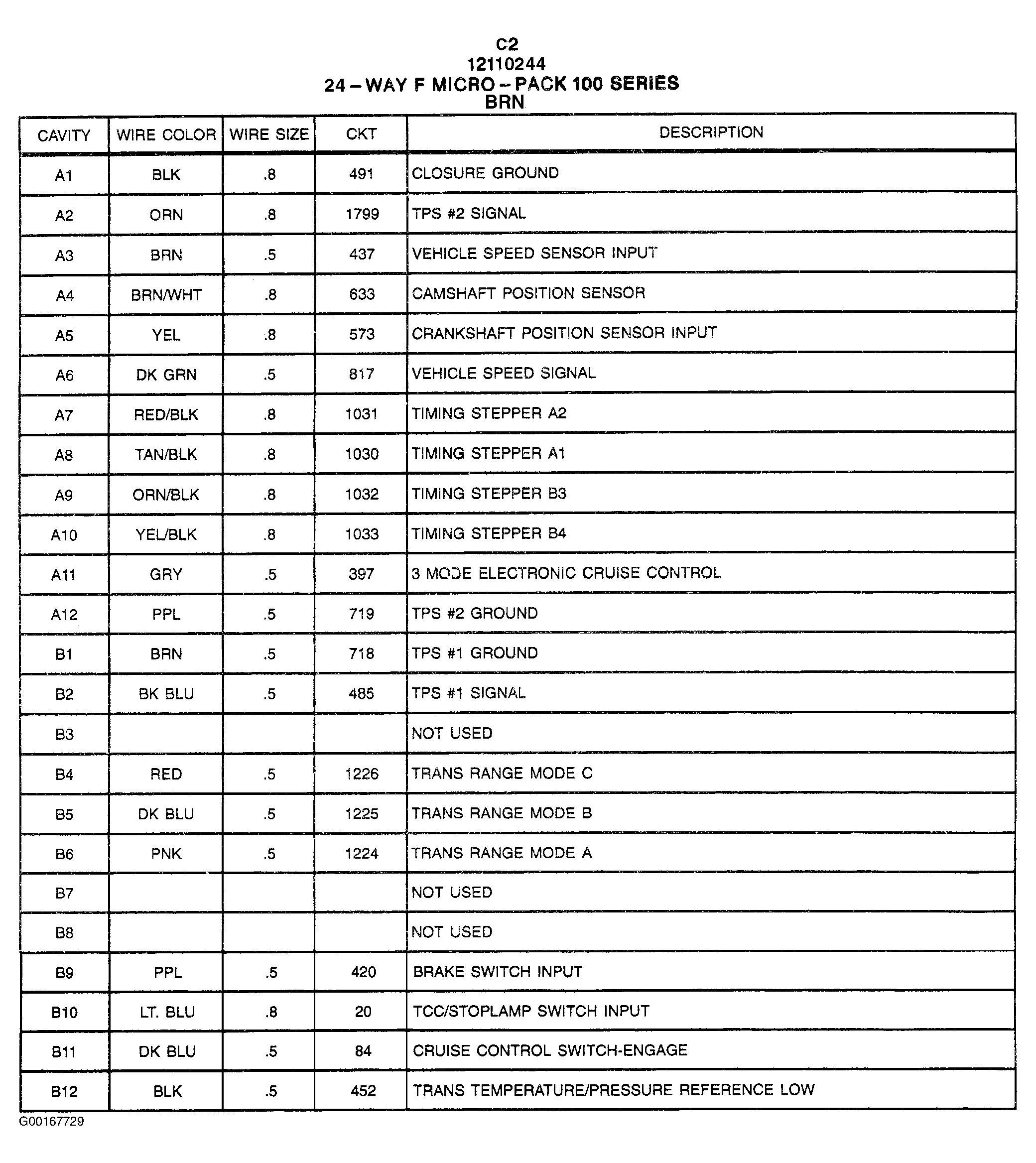

Fig 2: Vehicle Control Module 24-Pin Connector End View C2 (Brown) - Legend (2 Of 2)
G00167729Courtesy of GENERAL MOTORS CORP.
