Park & Turn Signal Lamp (LF/RF Inner/Outer)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Vandura, 1997 GMC Savana Special, 1997 GMC Savana Camper Special, 1997 GMC Savana, and 1997 Chevrolet RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

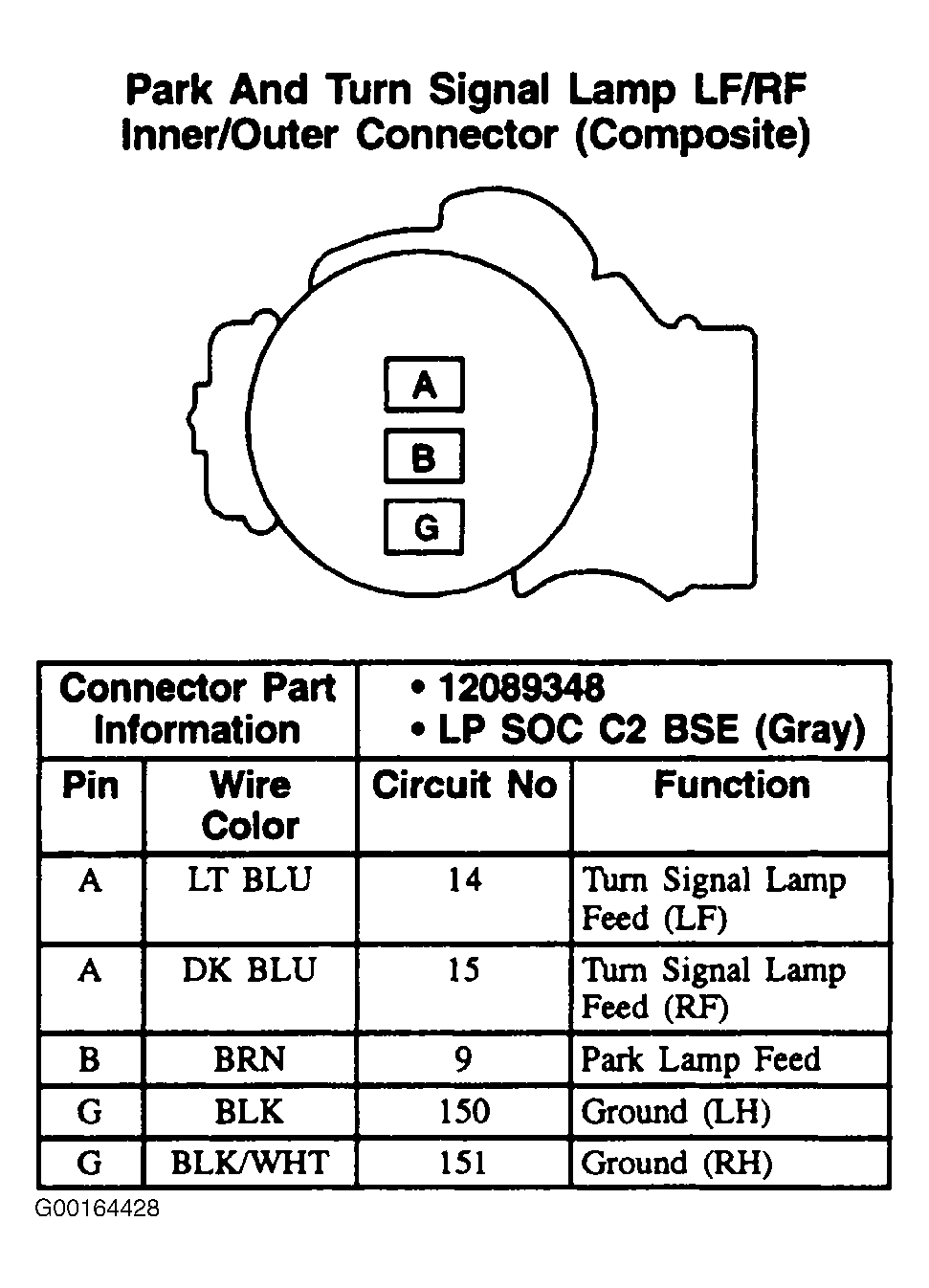

Fig 1: Park & Turn Signal Lamp (LF/RF Inner/Outer) - 3-Pin Connector, Gray
G00164428Courtesy of GENERAL MOTORS CORP.
