Mass Air Flow (MAF) Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Vandura, 1997 GMC Savana Special, 1997 GMC Savana Camper Special, 1997 GMC Savana, and 1997 Chevrolet RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

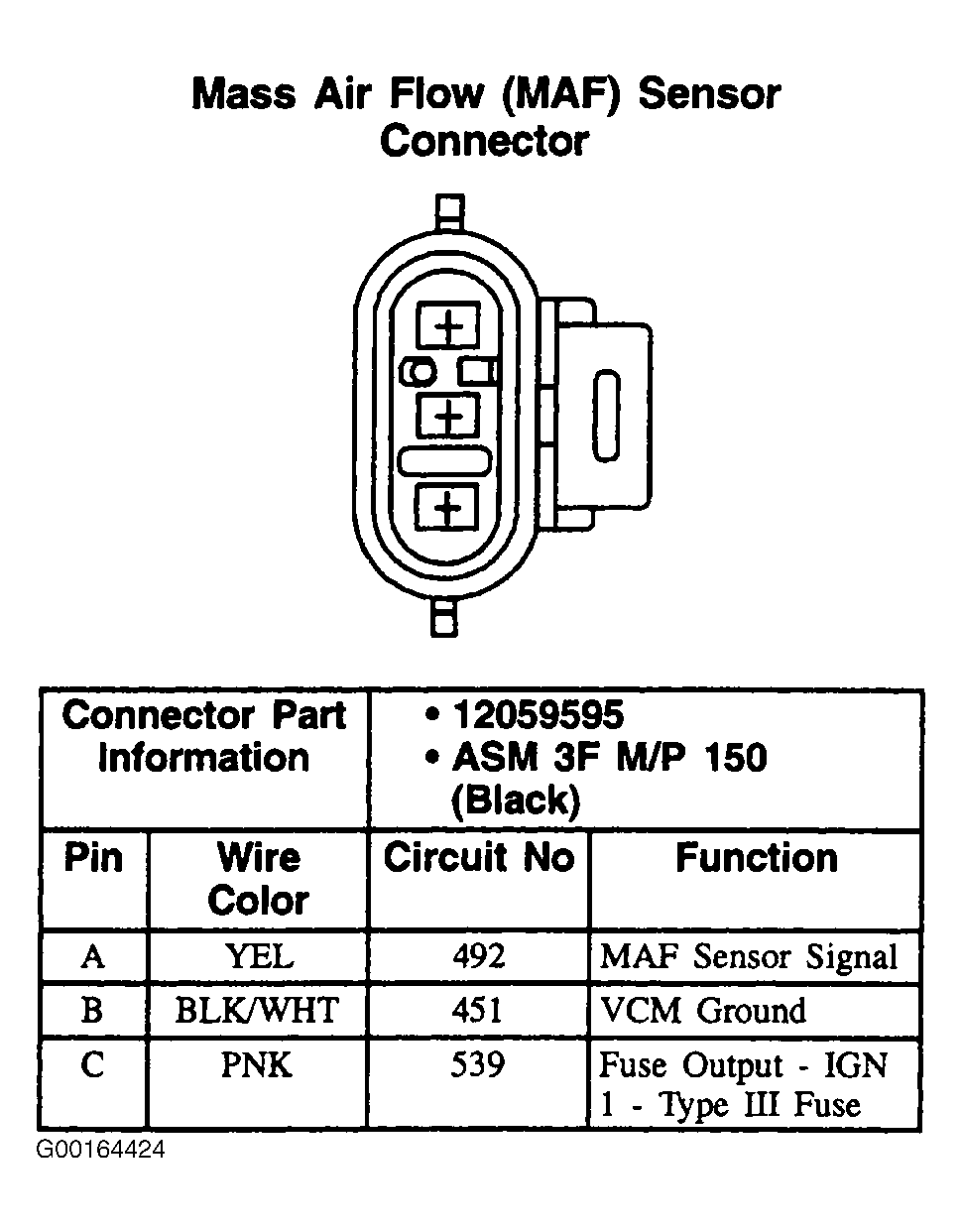

Fig 1: Mass Air Flow (MAF) Sensor - 3-Pin Connector, Black
G00164424Courtesy of GENERAL MOTORS CORP.
