Engine Metal Temperature Gauge Sensor (L29 Only)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Vandura, 1997 GMC Savana Special, 1997 GMC Savana Camper Special, 1997 GMC Savana, and 1997 Chevrolet RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

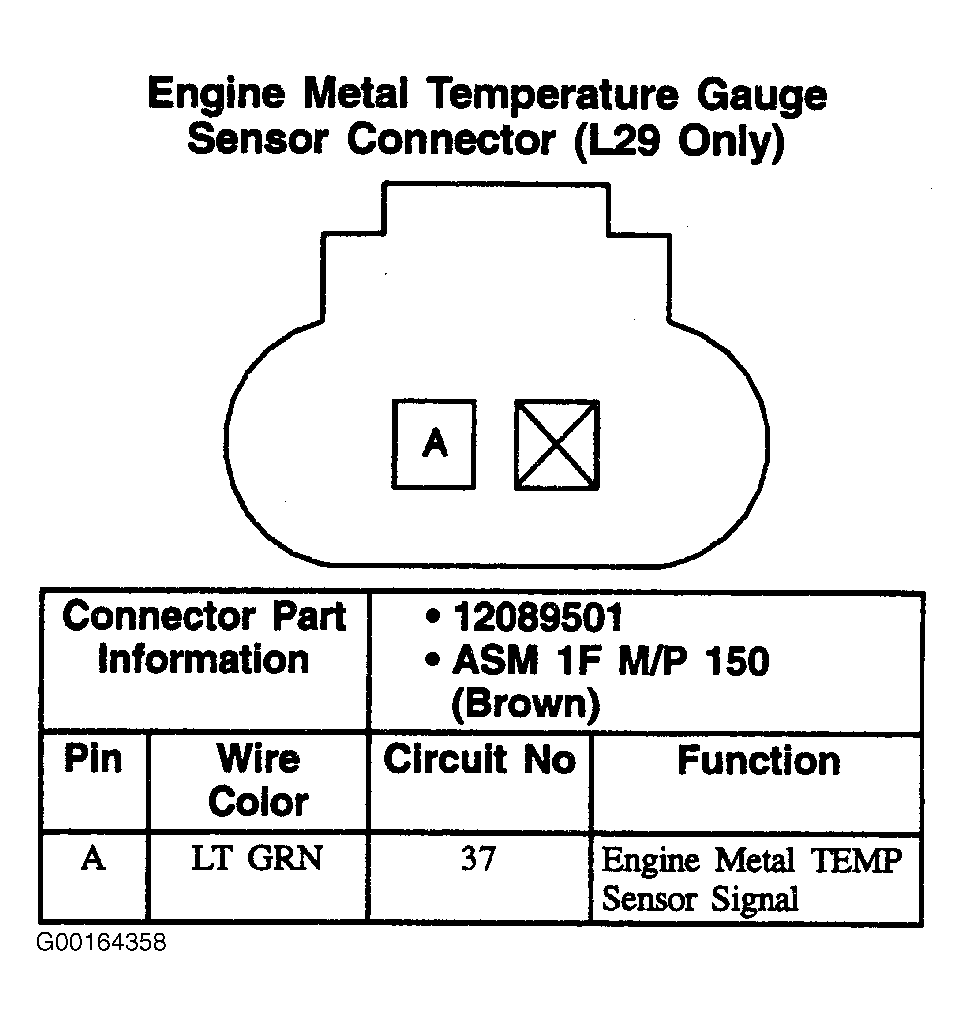

Fig 1: Engine Metal Temperature Gauge Sensor (L29 Only) - 2-Pin Connector, Brown
G00164358Courtesy of GENERAL MOTORS CORP.
