Engine Coolant Temperature Gauge Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Vandura, 1997 GMC Savana Special, 1997 GMC Savana Camper Special, 1997 GMC Savana, and 1997 Chevrolet RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

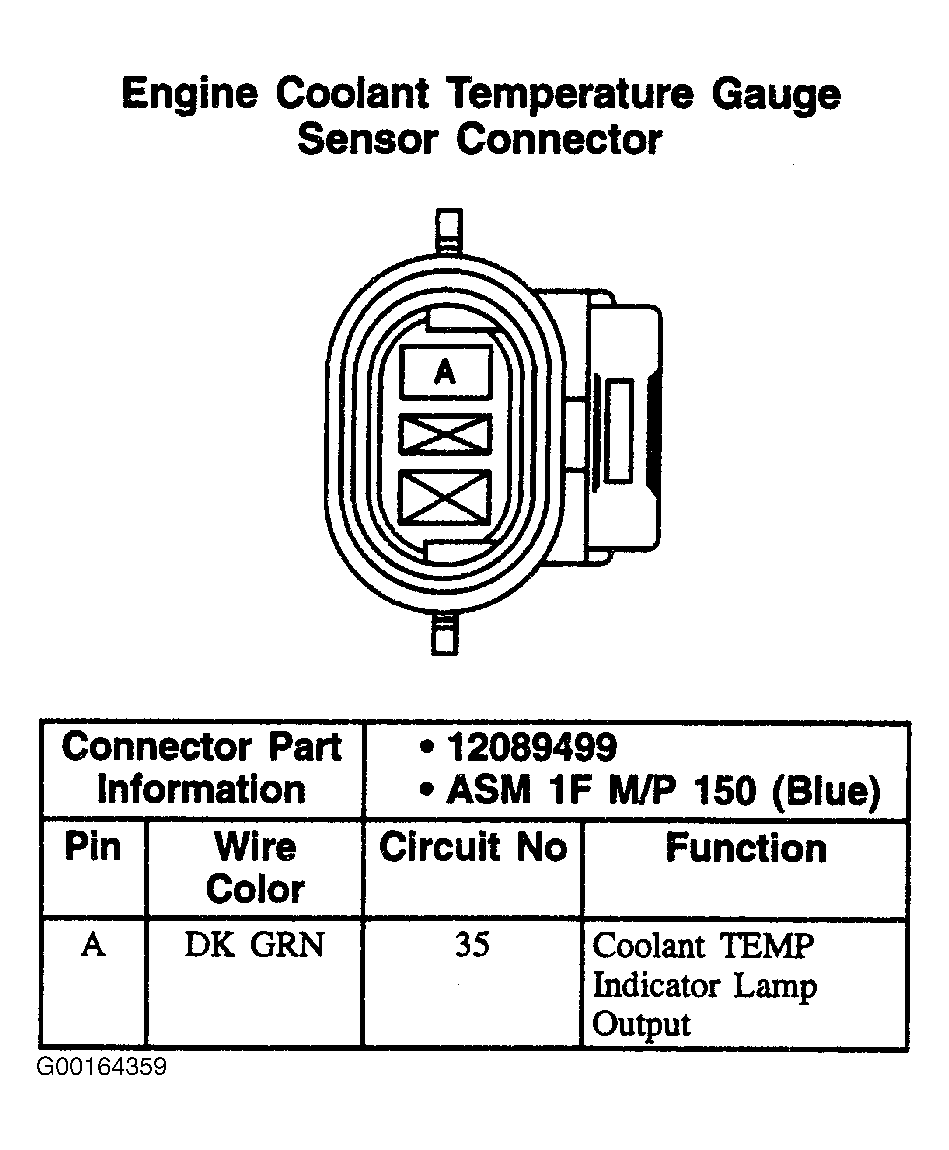

Fig 1: Engine Coolant Temperature Gauge Sensor - 3-Pin Connector, Blue
G00164359Courtesy of GENERAL MOTORS CORP.
