Door Jamb Switch (Side)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Vandura, 1997 GMC Savana Special, 1997 GMC Savana Camper Special, 1997 GMC Savana, and 1997 Chevrolet RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

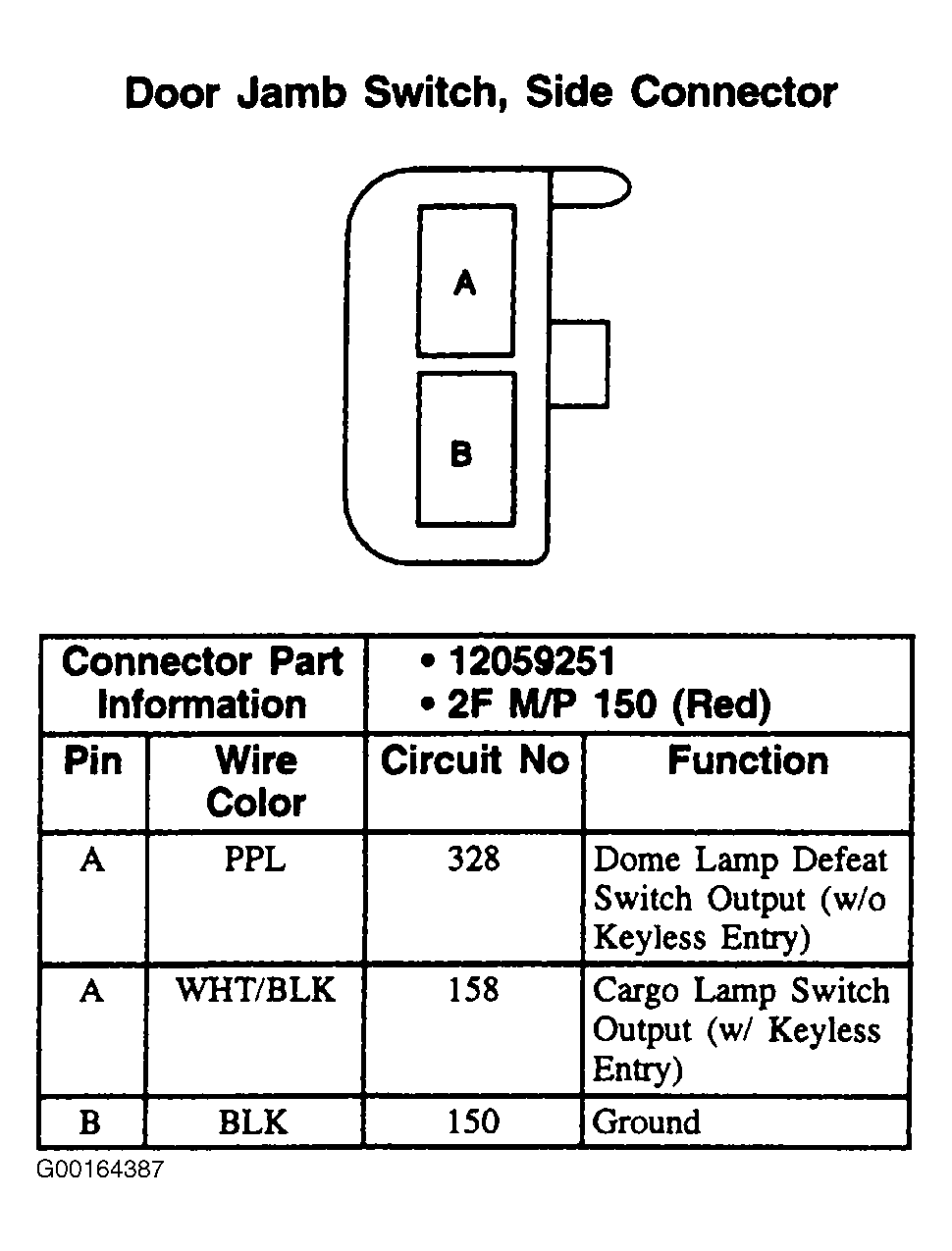

Fig 1: Door Jamb Switch (Side) - 2-Pin Connector, Red
G00164387Courtesy of GENERAL MOTORS CORP.
