VCM 24-Pin Connector

WARNING: This page is about a different car, the 1997 GMC Savana, 1997 Chevrolet Chevy Van, and 1997 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: VCM 24-Pin Connector C4 (Black) - Terminal Identification (1 Of 2)
G00153556Courtesy of GENERAL MOTORS CORP.

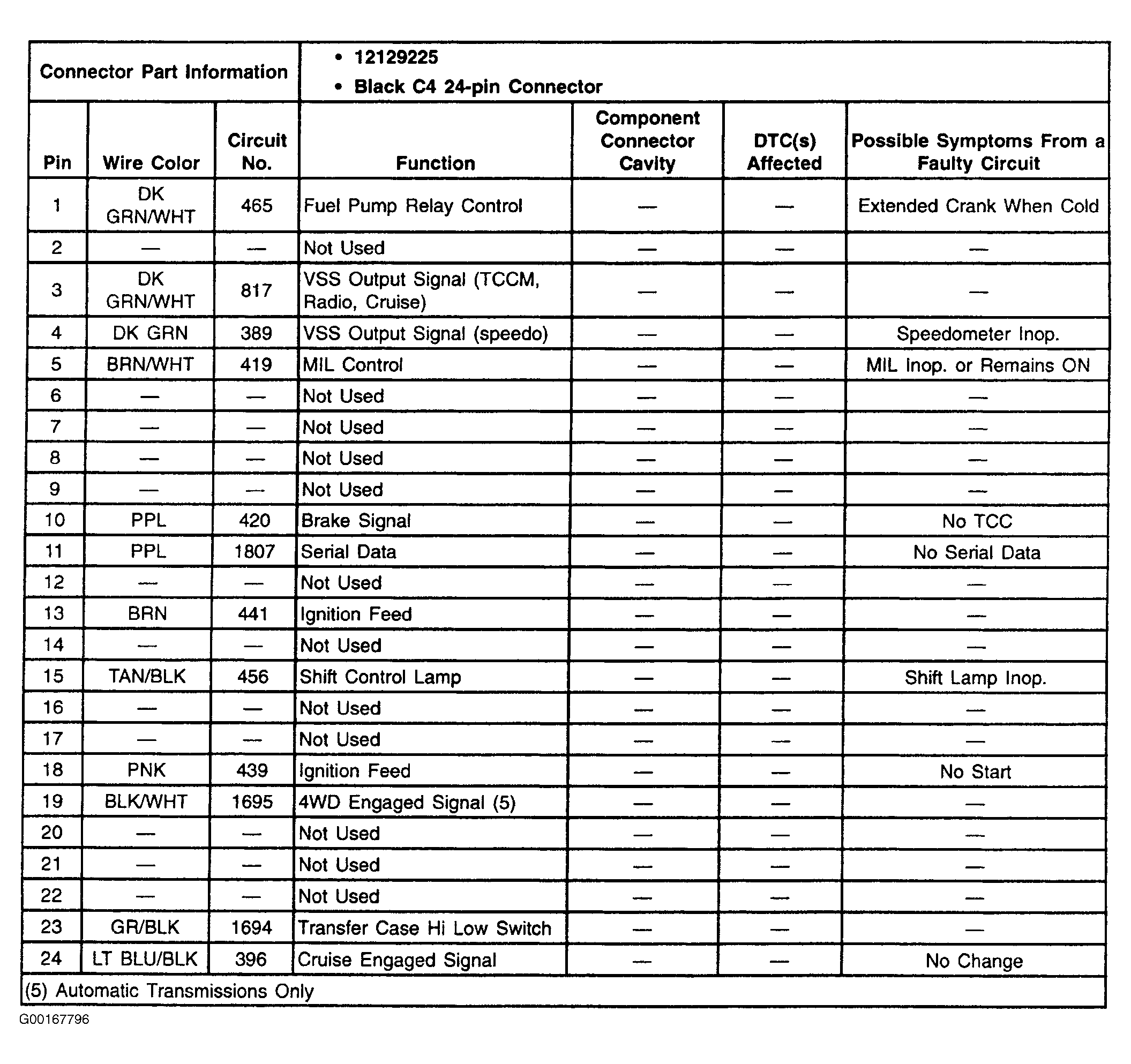

Fig 2: VCM 24-Pin Connector C4 (Black) - Legend (2 Of 2)
G00167796Courtesy of GENERAL MOTORS CORP.
