VCM 32-Pin Connector

WARNING: This page is about a different car, the 1997 GMC Savana, 1997 Chevrolet Chevy Van, and 1997 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: VCM 32-Pin Connector - Terminal Identification (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

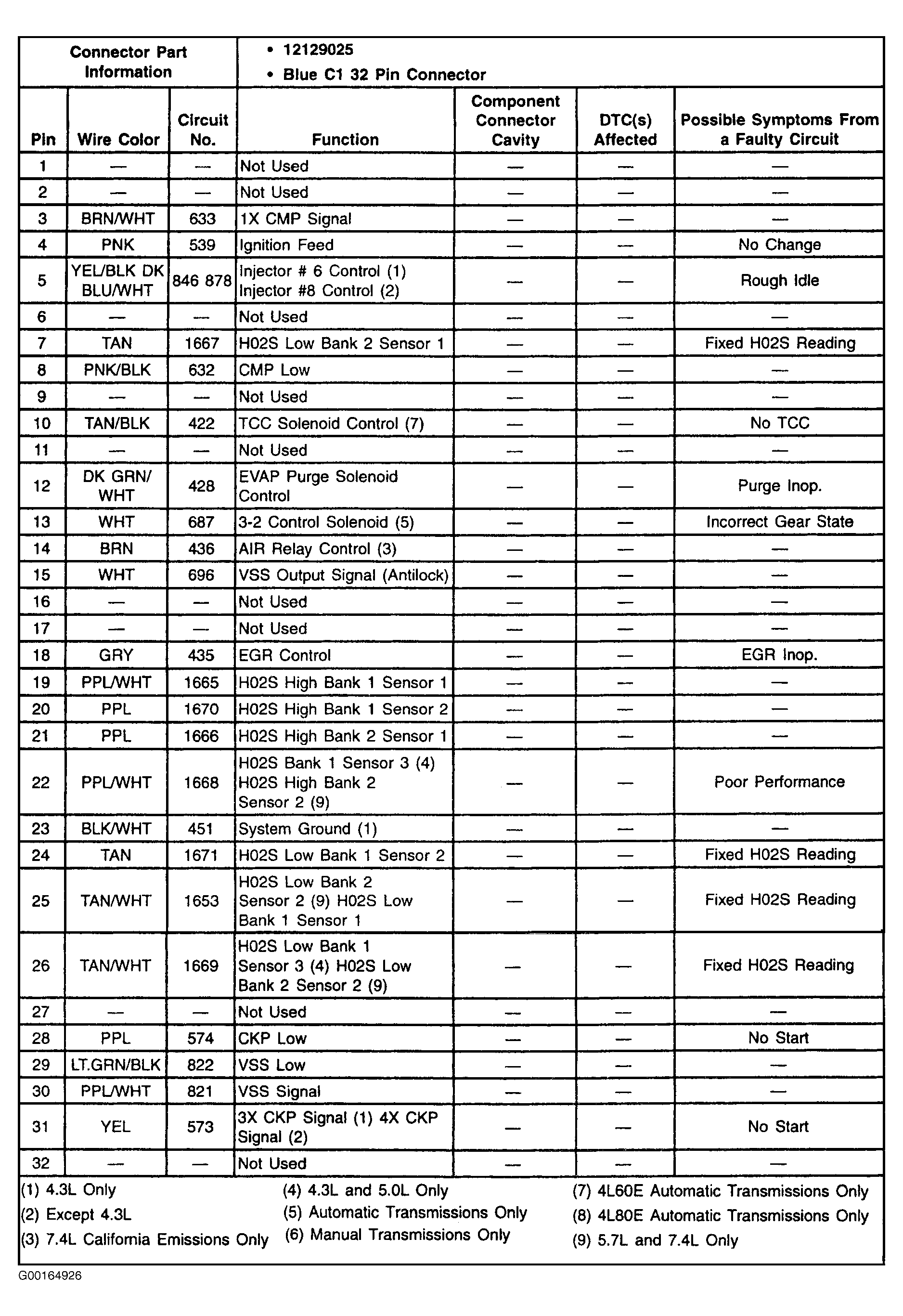

Fig 2: VCM 32-Pin Connector C1 (Blue) - Legend (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

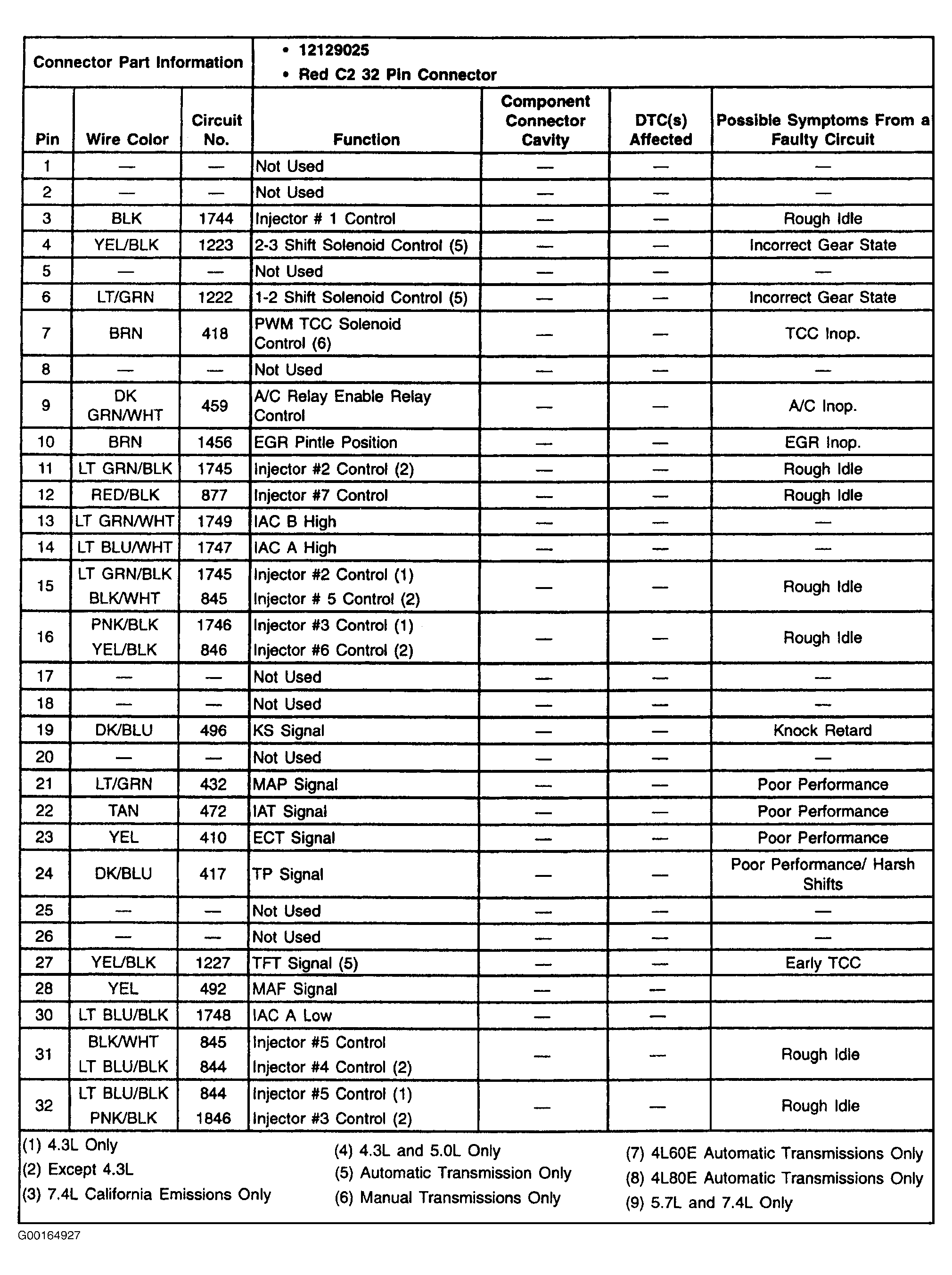

Fig 3: VCM 32-Pin Connector C2 (Red) - Legend (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

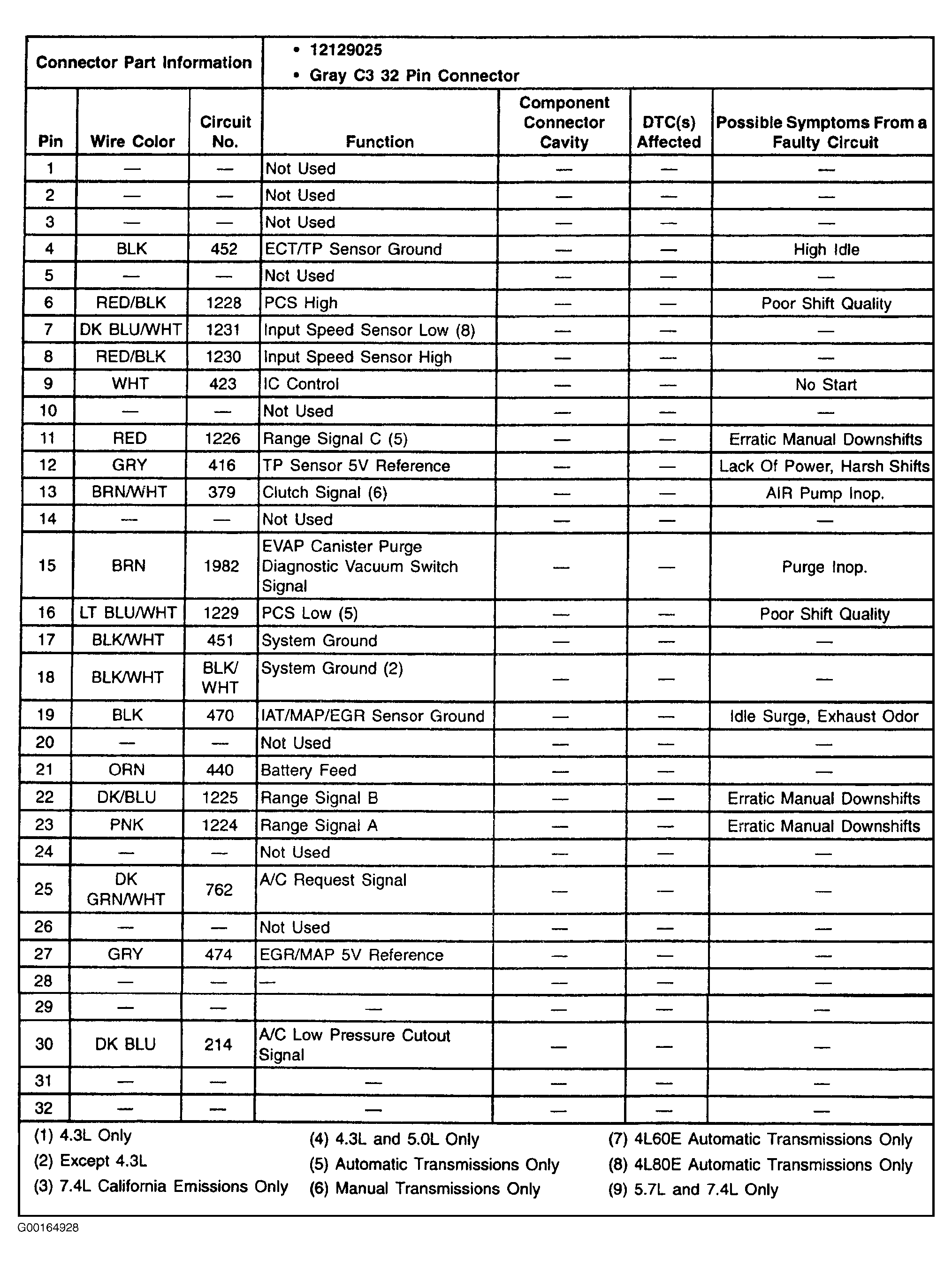

Fig 4: VCM 32-Pin Connector C3 (Gray) - Legend (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
