Excessive Brake Pedal Effort; Brake Pedal Chatters Or Pulsates; System Leaks

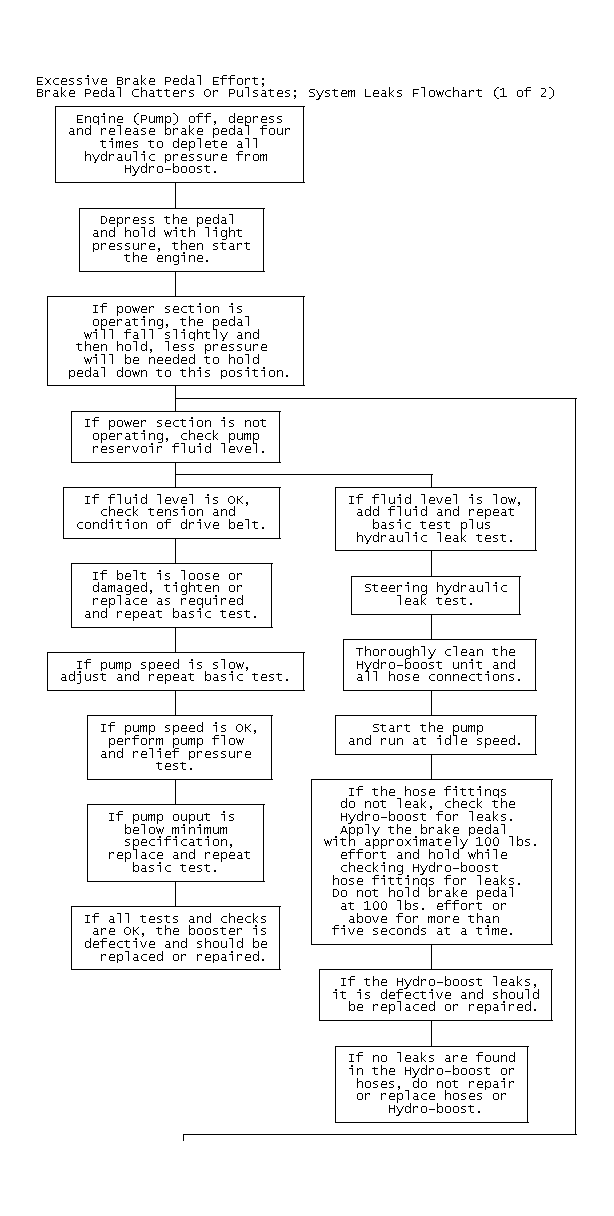

Fig 1: Excessive Brake Pedal Effort; Brake Pedal Chatters Or Pulsates; System Leaks Flowchart (1 of 2)
GB0022100

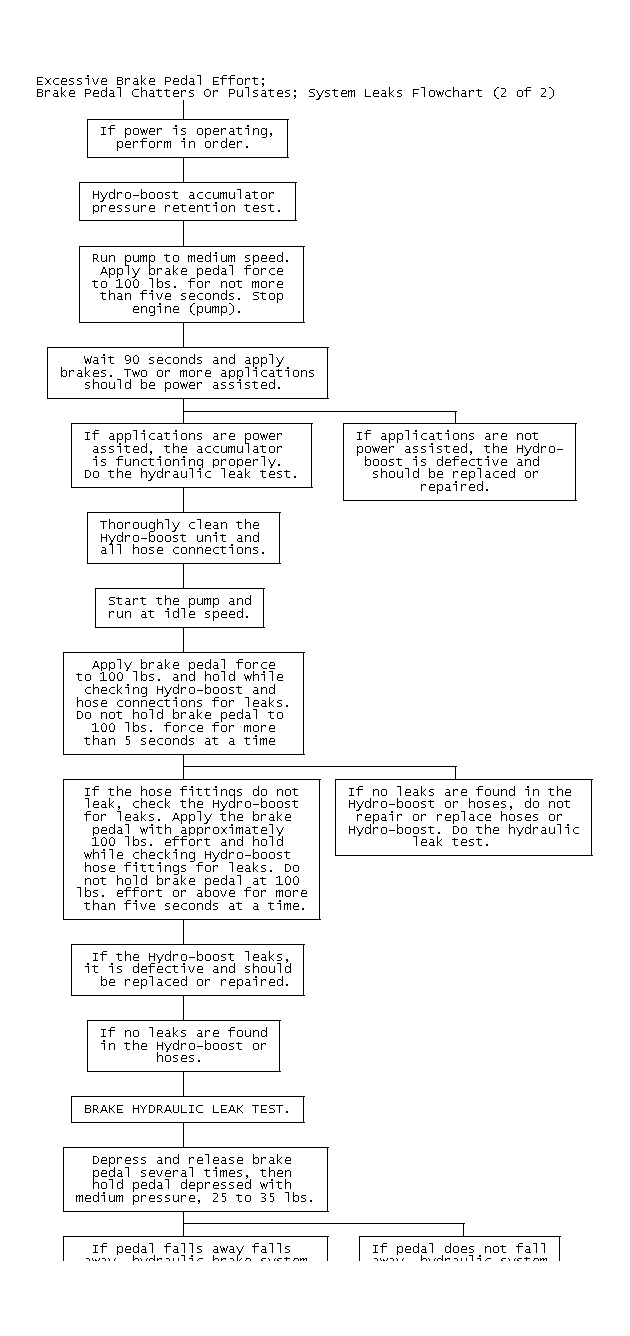

Fig 2: Excessive Brake Pedal Effort; Brake Pedal Chatters Or Pulsates; System Leaks Flowchart (2 of 2)
GB0022101
