Torque Specifications
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1997 GMC Savana, 1997 GMC Pickup, 1997 Chevrolet Pickup, 1997 Chevrolet Chevy Van, and 1997 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Balance Shaft Gear Bolt |
| Step 1 |
15 (20) |
| Step 2 |
Additional 35 Degrees |
| Balance Shaft Retainer Plate Bolts |
10 (14) |
| Bellhousing Bolt |
32 (44) |
| Camshaft Retainer Bolt |
21 (28) |
| Camshaft Sprocket Bolt |
18 (25) |
| Connecting Rod Cap Nut |
| Step 1 |
20 (27) |
| Step 2 |
Additional 55 Degrees |
| Crankshaft Damper Bolt |
74 (100) |
| Crankshaft Oil Deflector Bolt/Nut |
27 (36) |
| Cylinder Head Bolt |
| Step 1 |
22 (30) |
| Step 2 |
| Short Bolts (No. 3, 4, 7, 8, 11, 12, 15, 16) |
Additional 55 Degrees |
| Medium Bolts (No. 14, 17) |
Additional 65 Degrees |
| Long Bolts (No. 1, 2, 5, 6, 9, 10, 13) |
Additional 75 Degrees |
| Exhaust Manifold Bolt |
| Center 2 |
26 (35) |
| All Others |
19 (26) |
| Flywheel Bolt |
74 (100) |
| Main Bearing Cap Bolt |
| Outer |
67 (90) |
| Inner |
74 (100) |
| Oil Pan Nut/Bolt |
18 (25) |
| Oil Pump Bolt |
66 (90) |
| Rear Crankshaft Oil Seal Retainer Bolt |
11 (15) |
| Rocker Arm |
|
| Water Pump Bolt |
30 (40) |
| INCH Lbs. (N.m) |
| Camshaft Retainer Bolt |
106 (12) |
| Crankshaft Position Sensor Holddown Bolt |
80 (9.0) |
| Front Cover Bolt |
97 (11) |

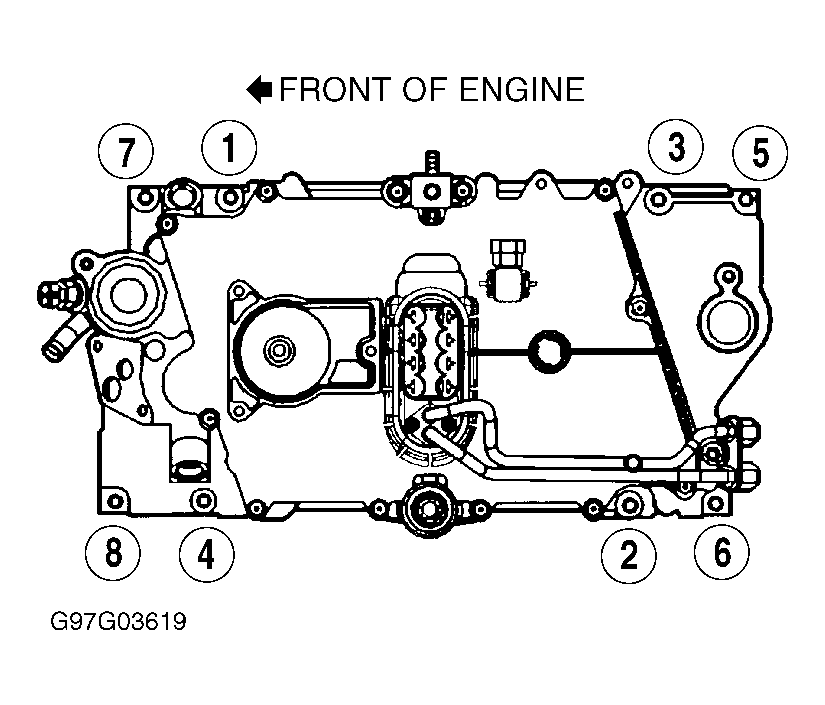

| Intake Manifold |
| Upper |
| Step 1 |
44 (5) |
| Step 2 |
89 (10) |
| Lower |
| Step 1 |
27 (3) |
| Step 2 |
106 (12) |
| Step 3 |
133 (15) |
| Oil Pump Cover Bolt |
80 (9) |
| Valve Cover Bolt |
89 (10) |
