Servo Assemblies

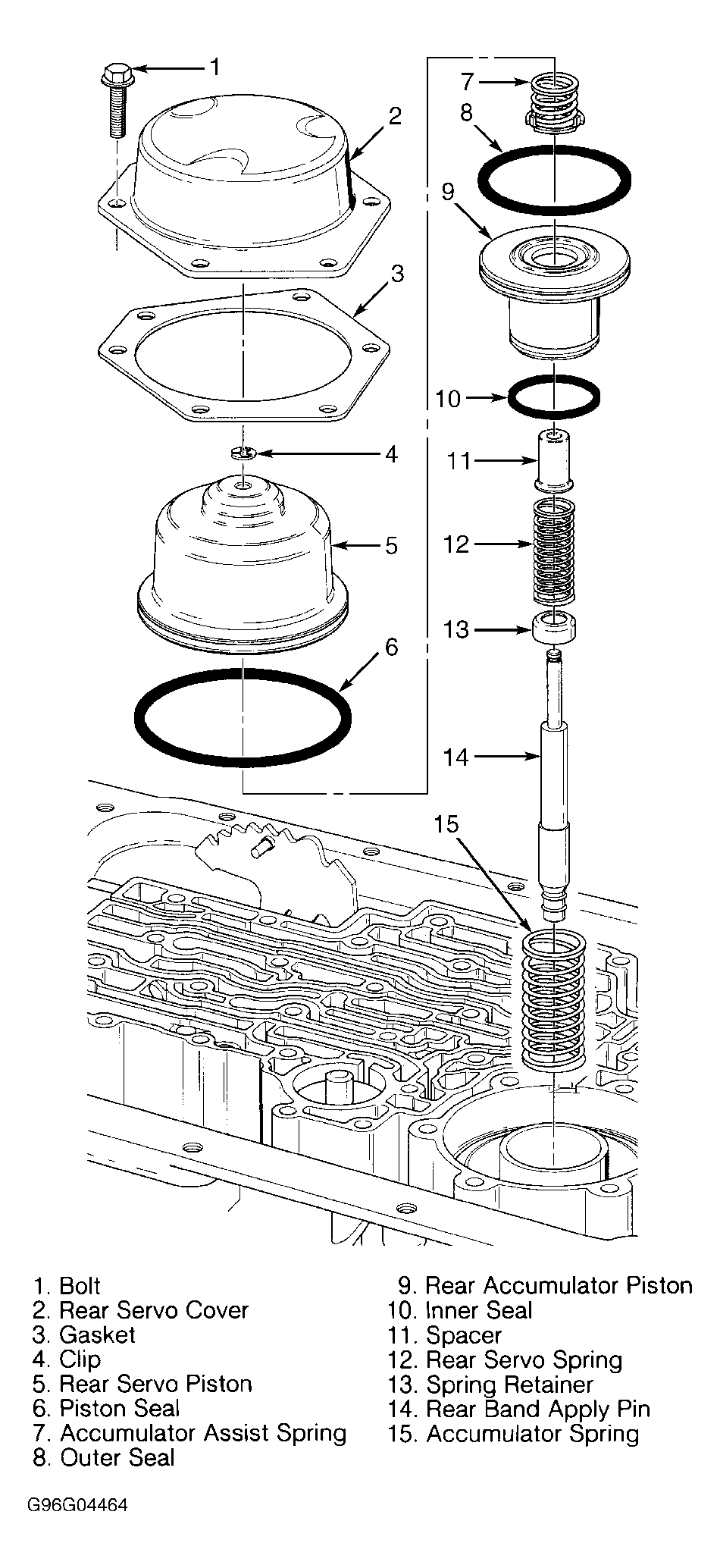

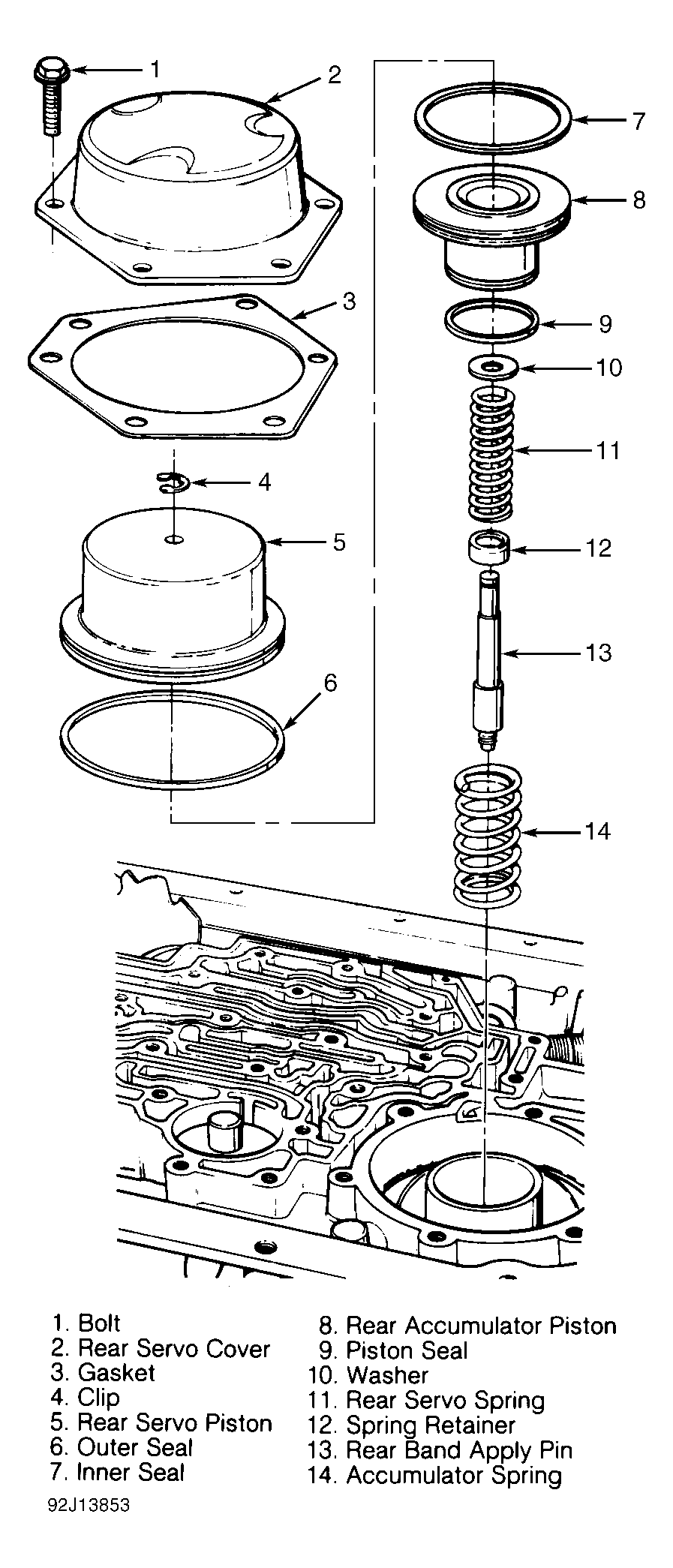

Install selected rear band apply pin. If necessary, check rear band apply pin using Band Apply Selector Pin (J-21370-10) and Band Apply Pin Gauge (J-38737). See SERVO ASSEMBLIES under TRANSMISSION DISASSEMBLY . Install front and rear servo assemblies. See Figure, Figure and Fig 1.

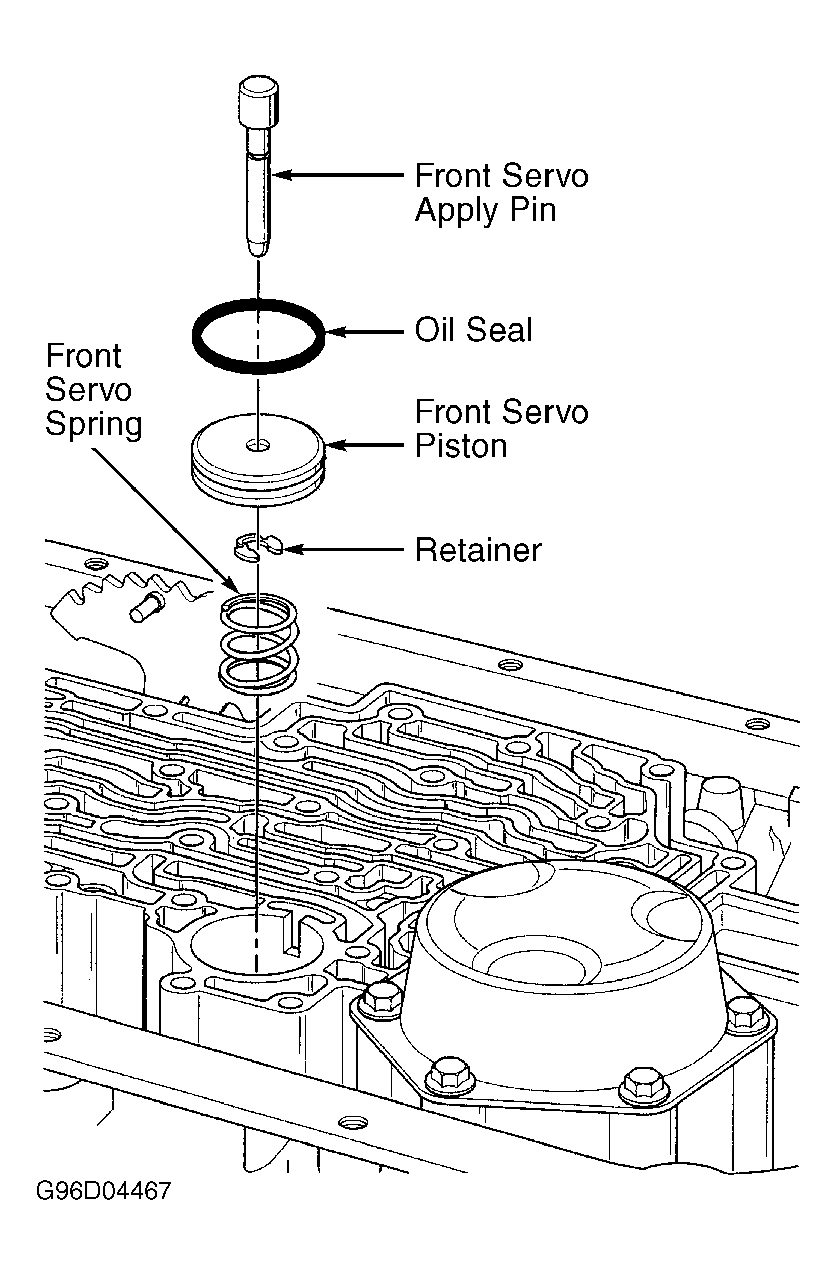

Fig 1: Installing Front Servo
G96D04467Courtesy of GENERAL MOTORS CORP.
